Main Light Switch Removal/Installation

Disconnect the negative battery cable.
Remove instrument cluster finish panel. See INSTRUMENT PANEL REMOVAL/INSTALLATION .
Pull off and remove the main light switch knob.
Remove the main light switch.
1. Remove the screws.
2. Remove the main light switch.

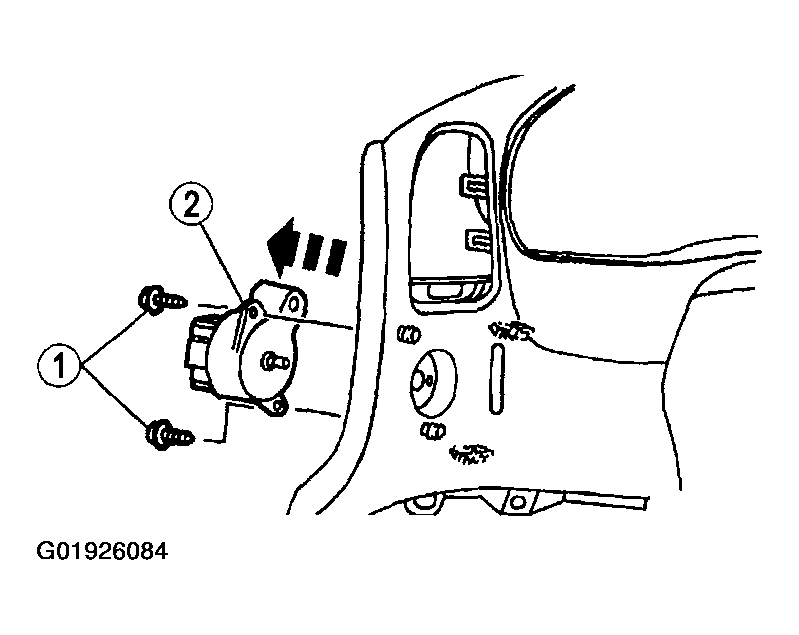

Fig 1: Removing Main Light Switch
Courtesy of MAZDA MOTORS CORP.
Install in reverse order of removal.
Tightening torque
1. 2-3 N.m (18-26 in.lbf)
