Remote Keyless Entry Transmitter Out Of Synchronization

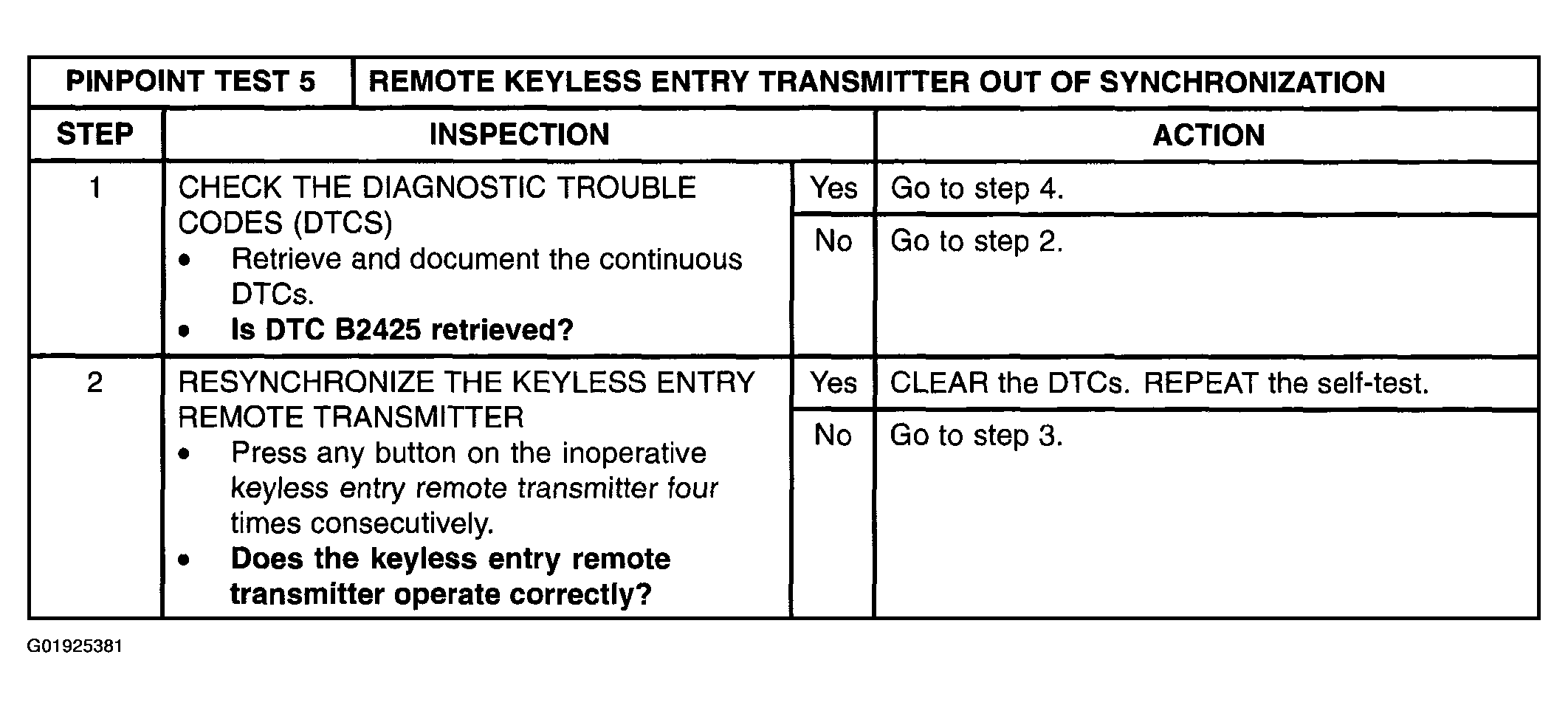

Fig 1: Remote Keyless Entry Transmitter Out Of Synchronization (Steps 1-2)
G01925381Courtesy of MAZDA MOTORS CORP.

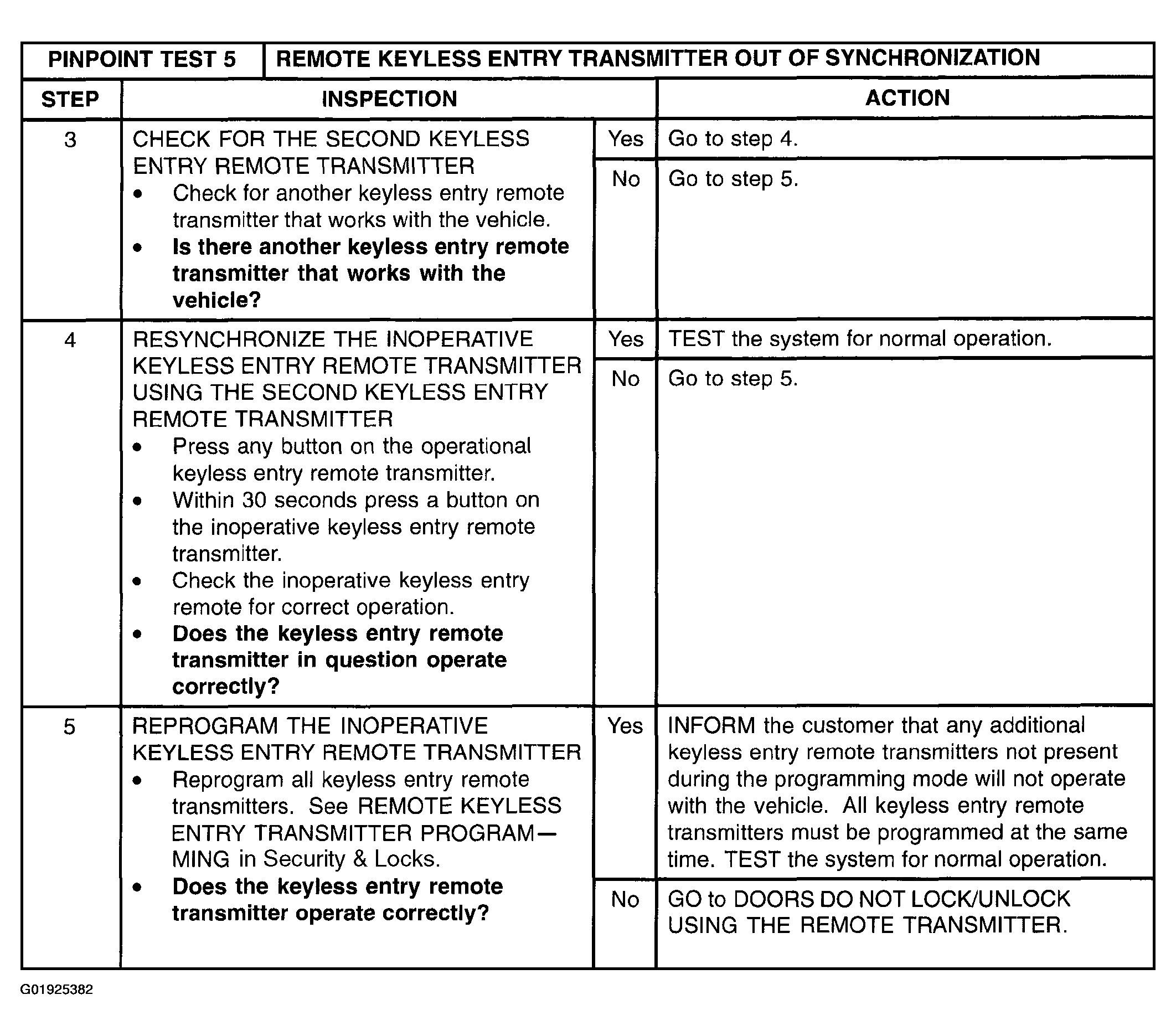

Fig 2: Remote Keyless Entry Transmitter Out Of Synchronization (Steps 3-5)
G01925382Courtesy of MAZDA MOTORS CORP.
