Roll Pin Disassembly Note

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Tap the roll pin out from the direction shown in the figure using a pin punch.

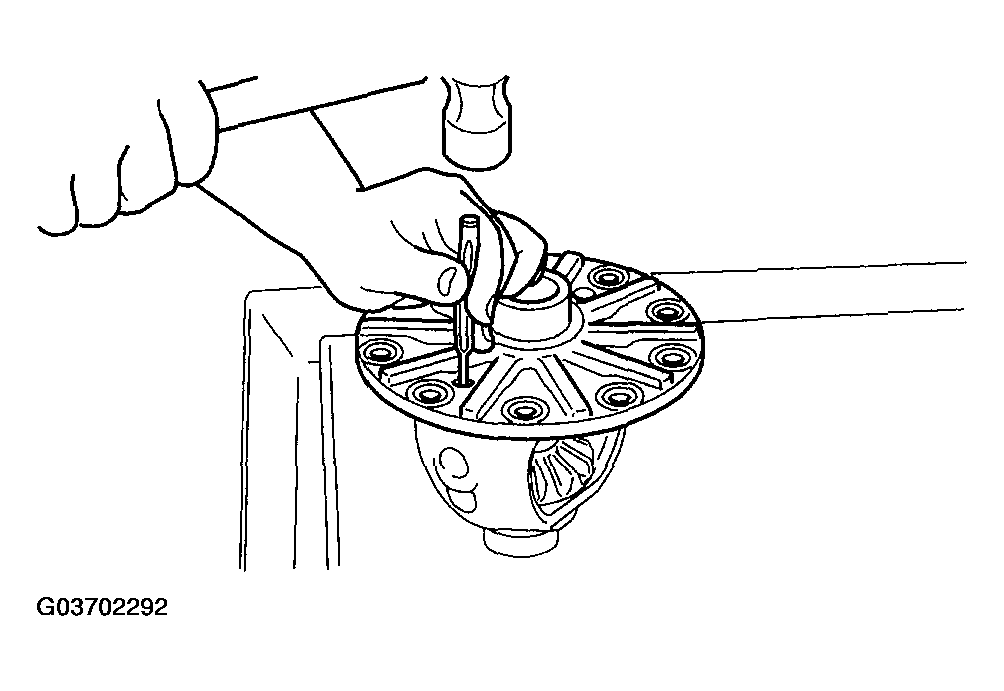

    Fig 1: Removing Roll Pin
    G03702292Courtesy of MAZDA MOTORS CORP.
