For Steel Propeller Shaft

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front tunnel member.
  2. Remove the rear tunnel member.
  3. Remove the exhaust pipe and the silencer. (See EXHAUST SYSTEM REMOVAL/INSTALLATION .)
  4. Remove the heat insulator.
  5. Remove in the order indicated. See Fig 1.
  6. Install in the reverse order of removal.
Fig 1: Removal/Installation Sequence Of Steel Propeller Shaft
G01345133Courtesy of MAZDA MOTORS CORP.

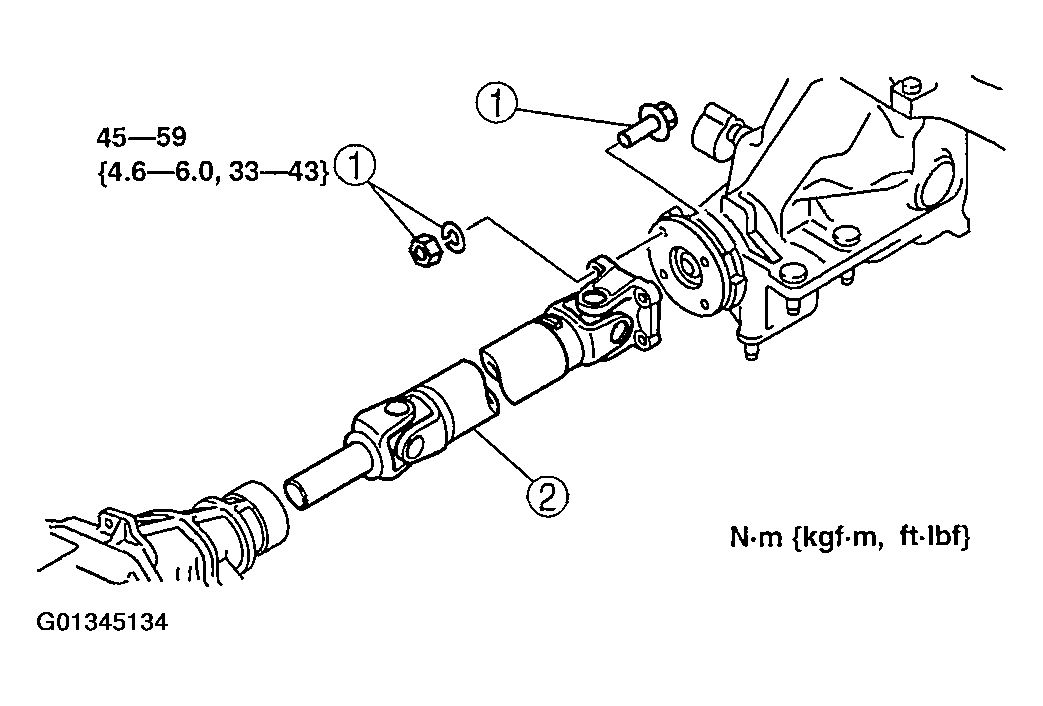

Fig 2: Removal/Installation Of Steel Propeller Shaft
G01345134Courtesy of MAZDA MOTORS CORP.
