Instrument Cluster Printed Circuit Removal/Installation

Remove the instrument cluster. See INSTRUMENT CLUSTER REMOVAL/INSTALLATION .
Remove the illumination and indicator bulbs. See INDICATOR/WARNING BULB REMOVAL/INSTALLATION .
Remove the gauges. See INSTRUMENT CLUSTER GAUGES REMOVAL/INSTALLATION .
NOTE:
- Do not reuse instrument gauge clips.
Remove the instrument gauge clips.

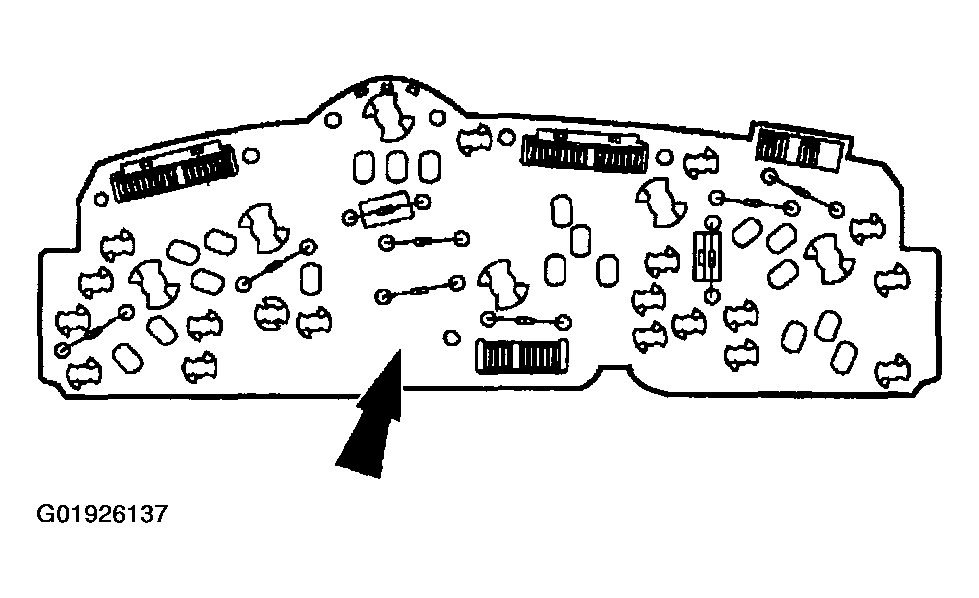

Fig 1: Removing Instrument Cluster Printed Circuit
Courtesy of MAZDA MOTORS CORP.
Remove the instrument cluster printed circuit.
Install in reverse order of removal.
