Power Window Inoperative - Passenger Power Window

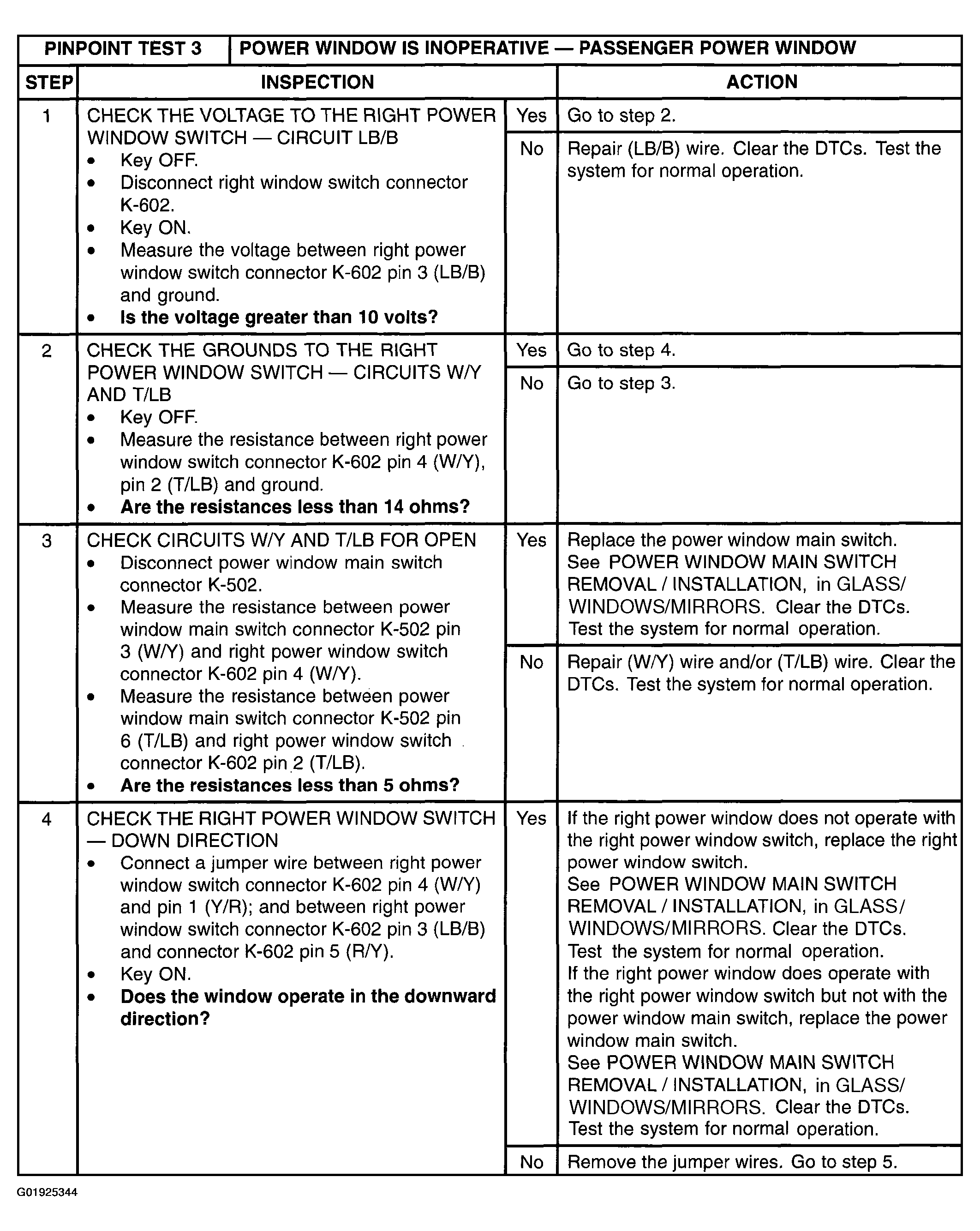

Fig 1: Power Window Inoperative - Passenger Power Window (Steps 1-4)

Courtesy of MAZDA MOTORS CORP.

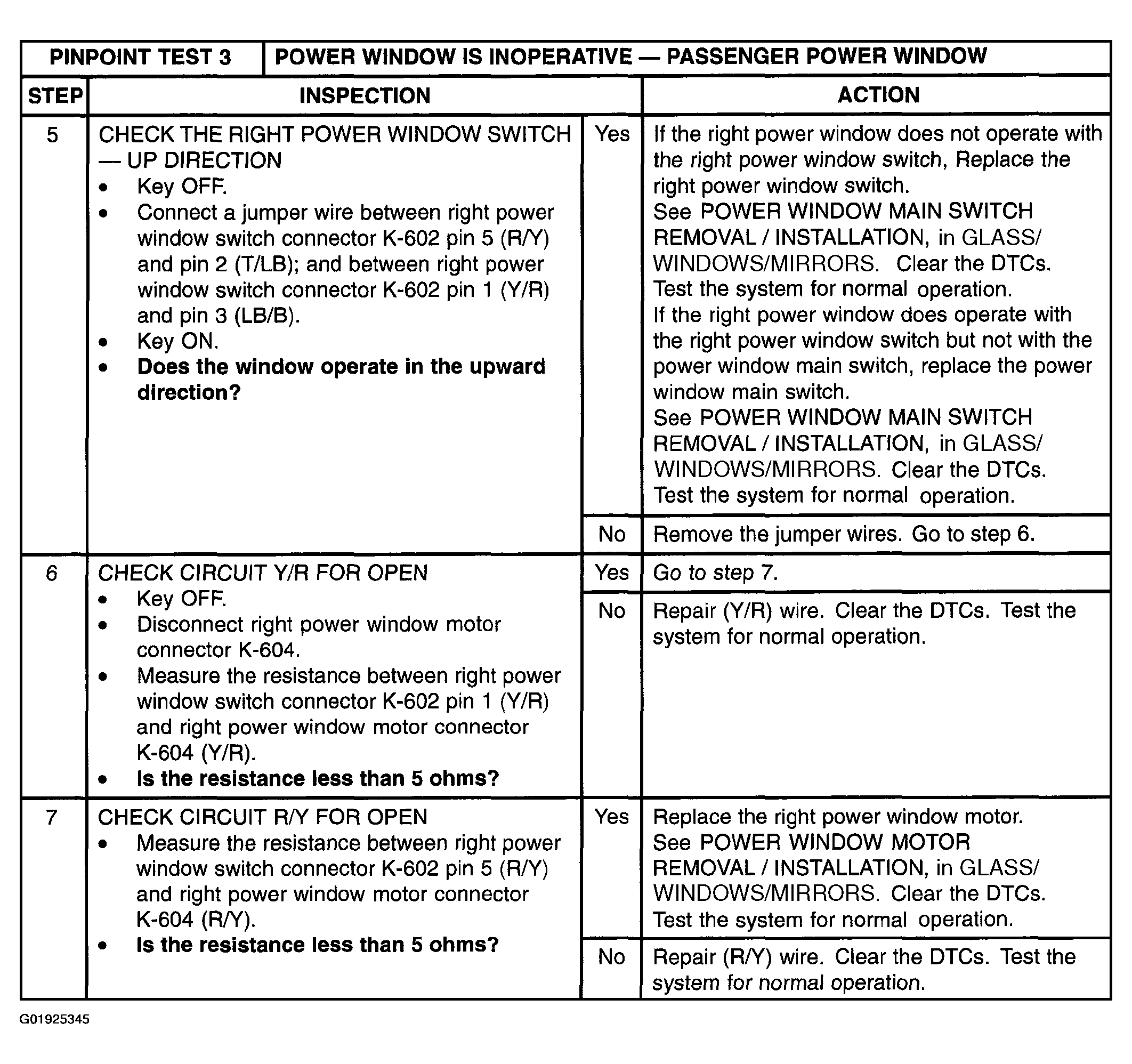

Fig 2: Power Window Inoperative - Passenger Power Window (Steps 5-7)

Courtesy of MAZDA MOTORS CORP.

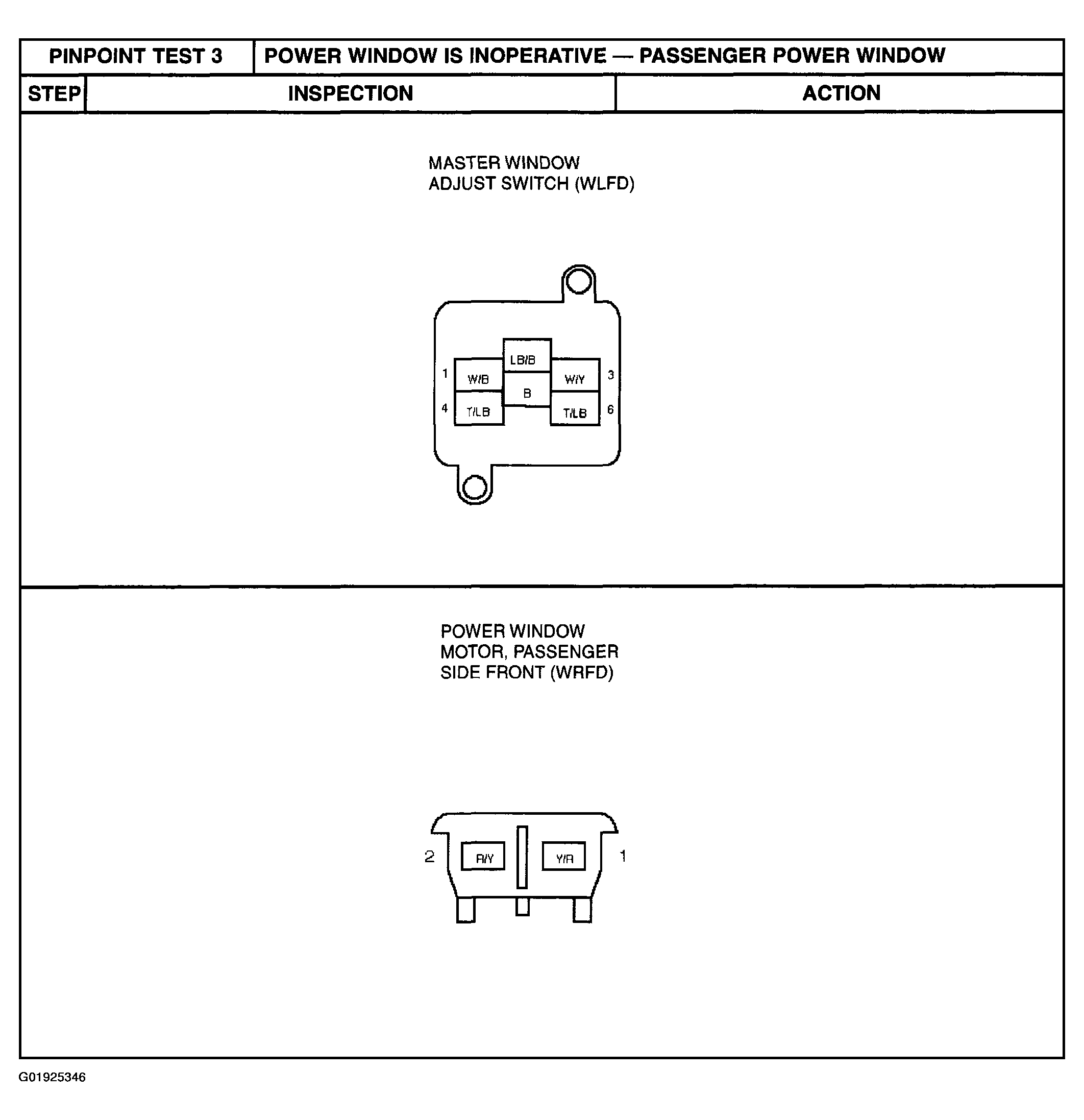

Fig 3: Identifying Master Window Adjust Switch & Power Window Motor Connector (Passenger Side Front)

Courtesy of MAZDA MOTORS CORP.
