Exterior Mirror Motor Removal/Installation

NOTE:

Remove the exterior mirror glass. See EXTERIOR MIRROR GLASS REMOVAL/INSTALLATION .
Position aside the exterior mirror motor (17D696).

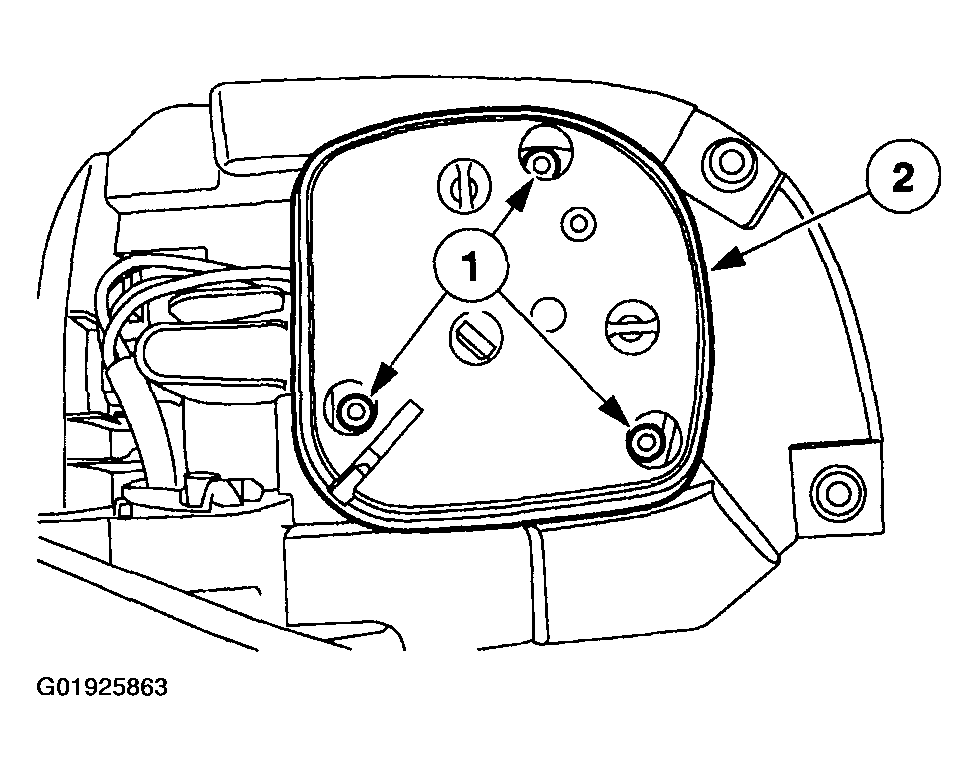

Fig 1: Removing Screws
Courtesy of MAZDA MOTORS CORP.
1. Remove the screws.
2. Position aside the exterior mirror motor.
Disconnect the electrical connector and remove the exterior mirror motor.

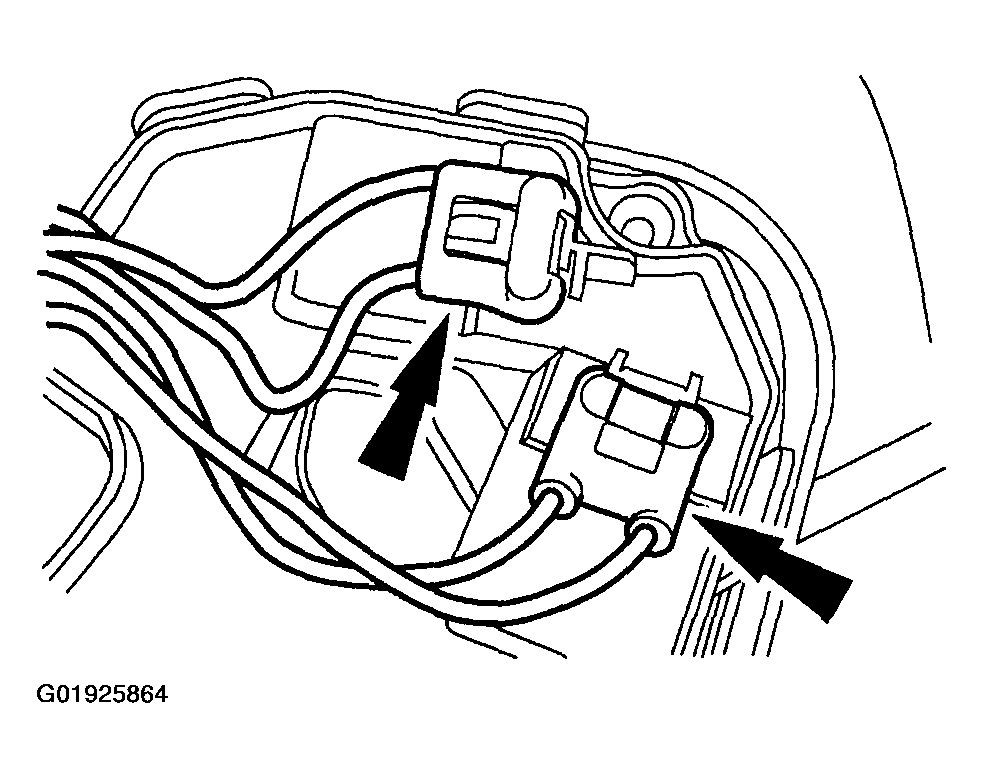

Fig 2: Disconnecting Electrical Connector And Removing Exterior Mirror Motor
Courtesy of MAZDA MOTORS CORP.
To install, reverse the removal procedure.
