Exterior Mirror Glass Removal/Installation: Removal

NOTE:

Position the glass in the full up position.
Locate the notch at the bottom of the exterior mirror glass.

Fig 1: Locating Notch At Bottom Of Exterior Mirror Glass
Courtesy of MAZDA MOTORS CORP.
Release the exterior mirror glass.

Fig 2: Releasing Exterior Mirror Glass
Courtesy of MAZDA MOTORS CORP.
1. Insert a long flat-bladed screwdriver in the notch.
2. Push the screwdriver into the notch until the glass is released.
Remove the exterior mirror glass.

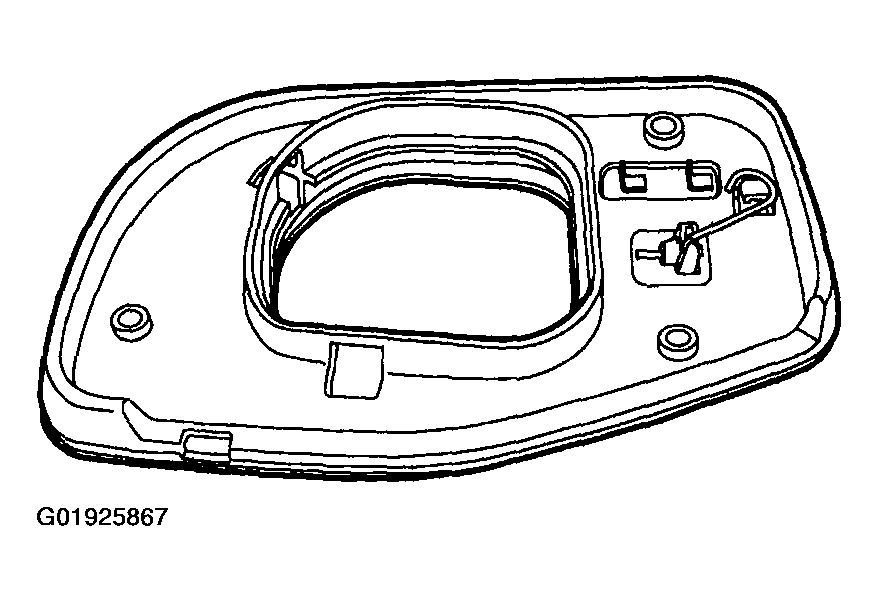

Fig 3: Removing Exterior Mirror Glass
Courtesy of MAZDA MOTORS CORP.
