Door Glass Run Retainer, Top Removal/Installation

  1. Remove the door glass; see DOOR GLASS FRONT REMOVAL/INSTALLATION  .
  2. Remove in order shown in figure.
    1. Beltline molding (inside)
    2. Beltline molding (outside)
    3. Bolt
    4. Top door glass run retainer

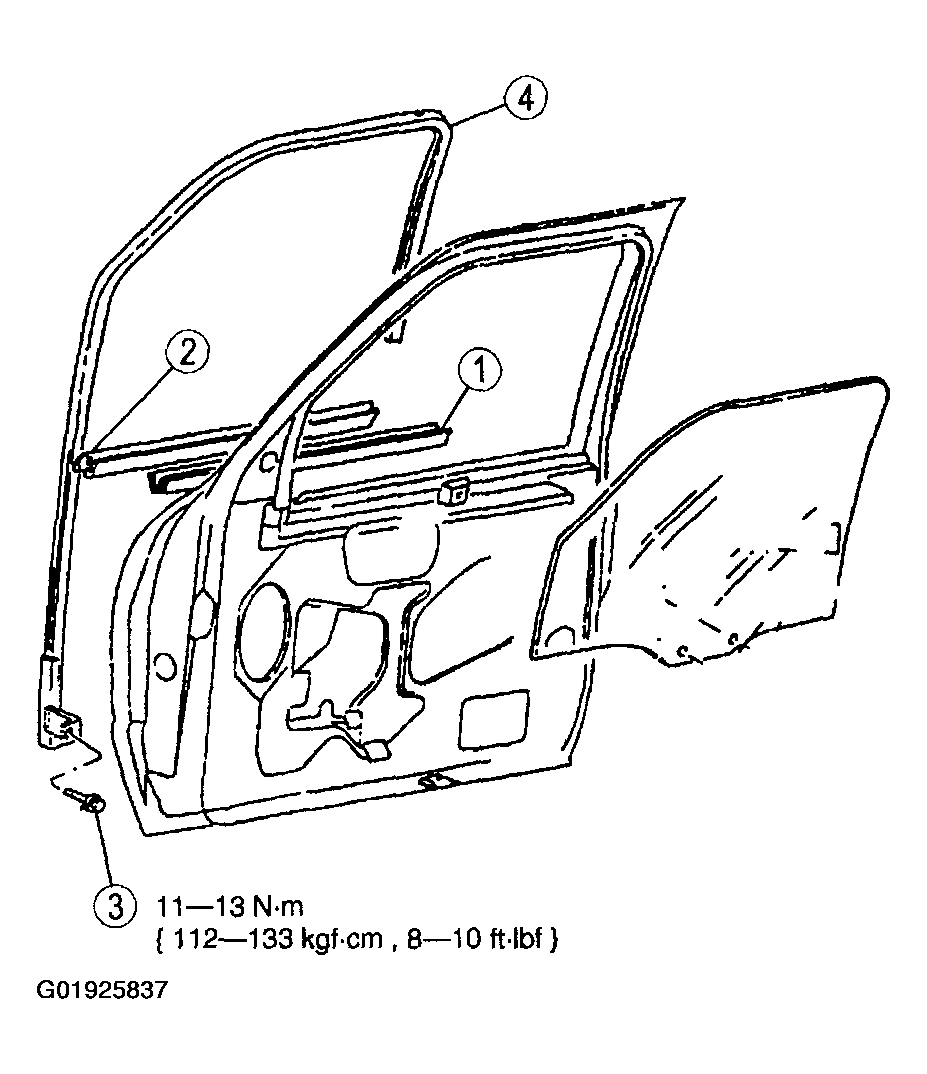

    Fig 1: Removing Top Door Glass Run Retainer
    G01925837Courtesy of MAZDA MOTORS CORP.
  3. Install in reverse order of removal.
