Doors Do Not Lock/Unlock Using The Remote Transmitter

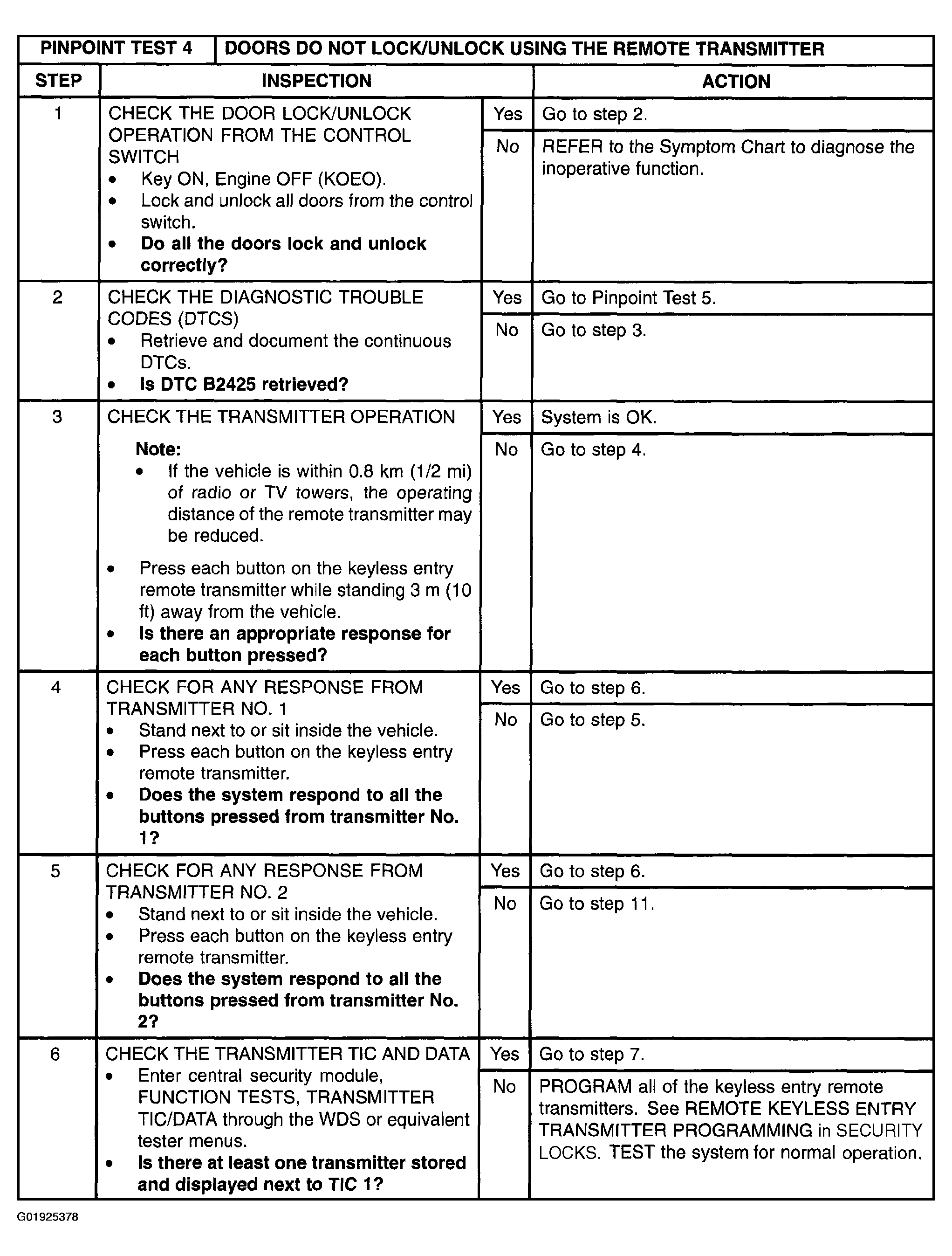

Fig 1: Doors Do Not Lock/Unlock Using Remote Transmitter (Steps 1-6)

Courtesy of MAZDA MOTORS CORP.

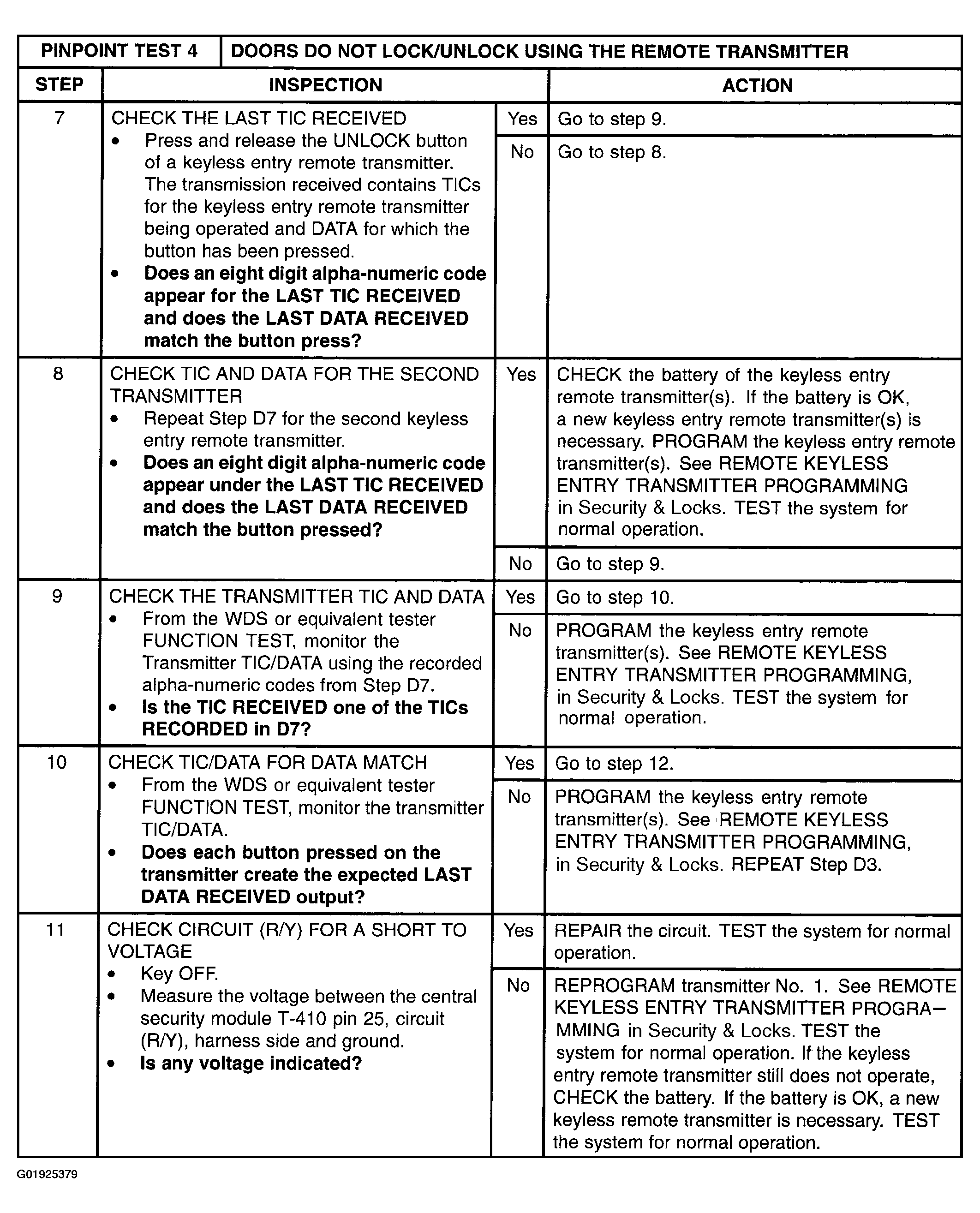

Fig 2: Doors Do Not Lock/Unlock Using Remote Transmitter (Steps 7-11)

Courtesy of MAZDA MOTORS CORP.

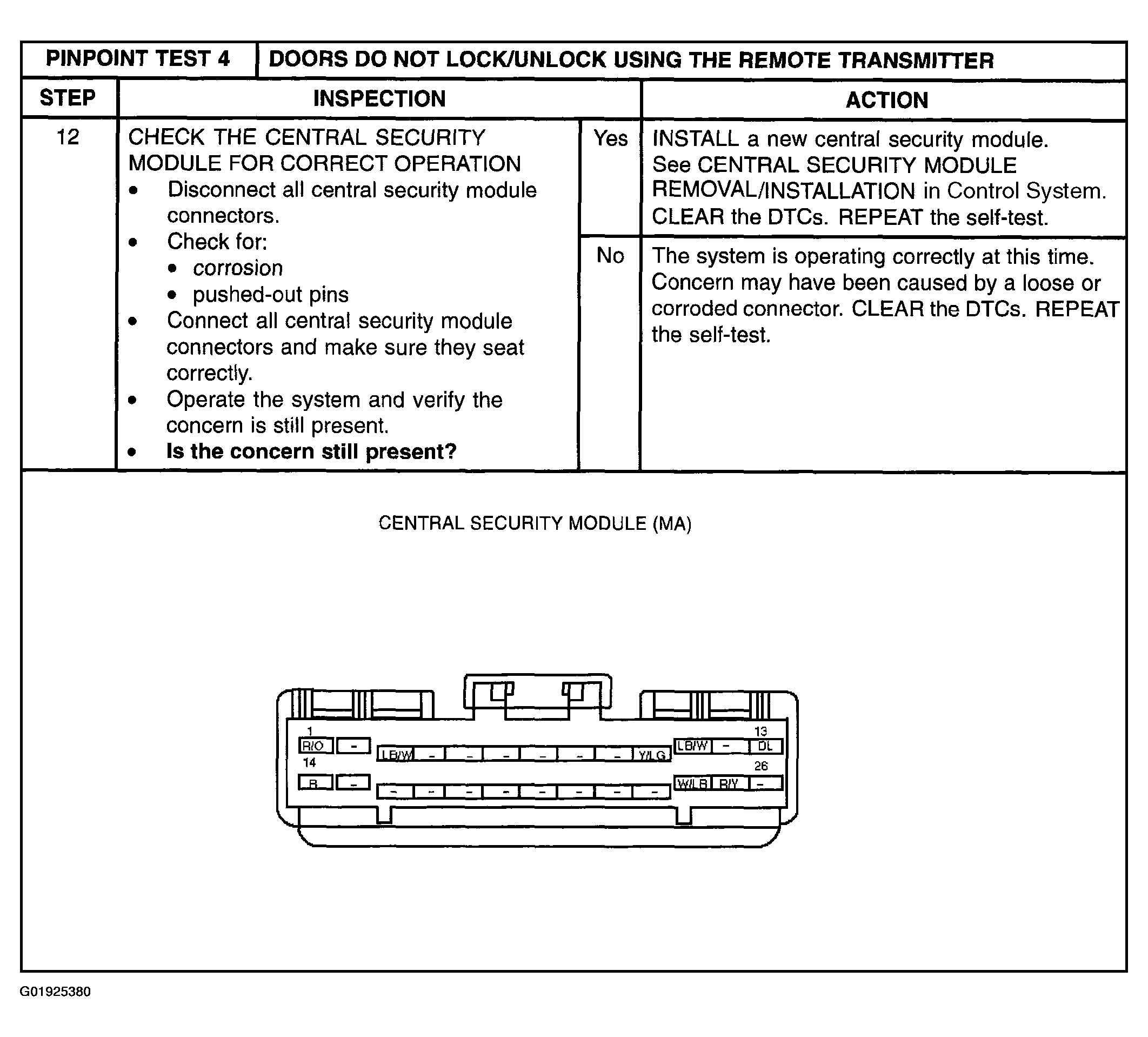

Fig 3: doors Do Not Lock/Unlock Using Remote Transmitter (Step 12)

Courtesy of MAZDA MOTORS CORP.
