Troubleshooting (Communication Control System)
>>
Data Link Diag Network Test
Data Link Diag Network Test

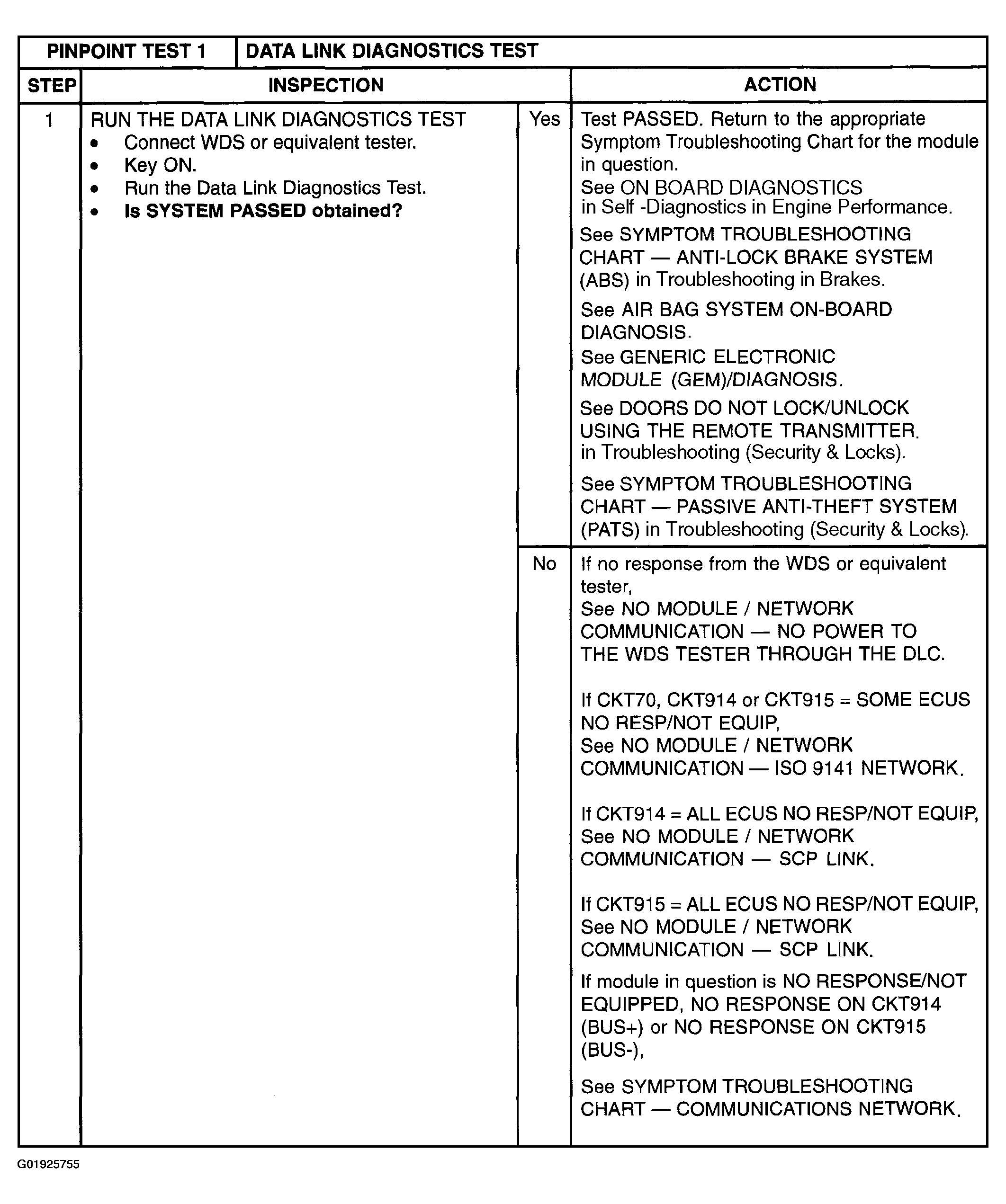

Fig 1: Data Link Diag Network Test
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
