Secondary Shaft Components Assembly: Notes

Assemble in the order shown in the figure.

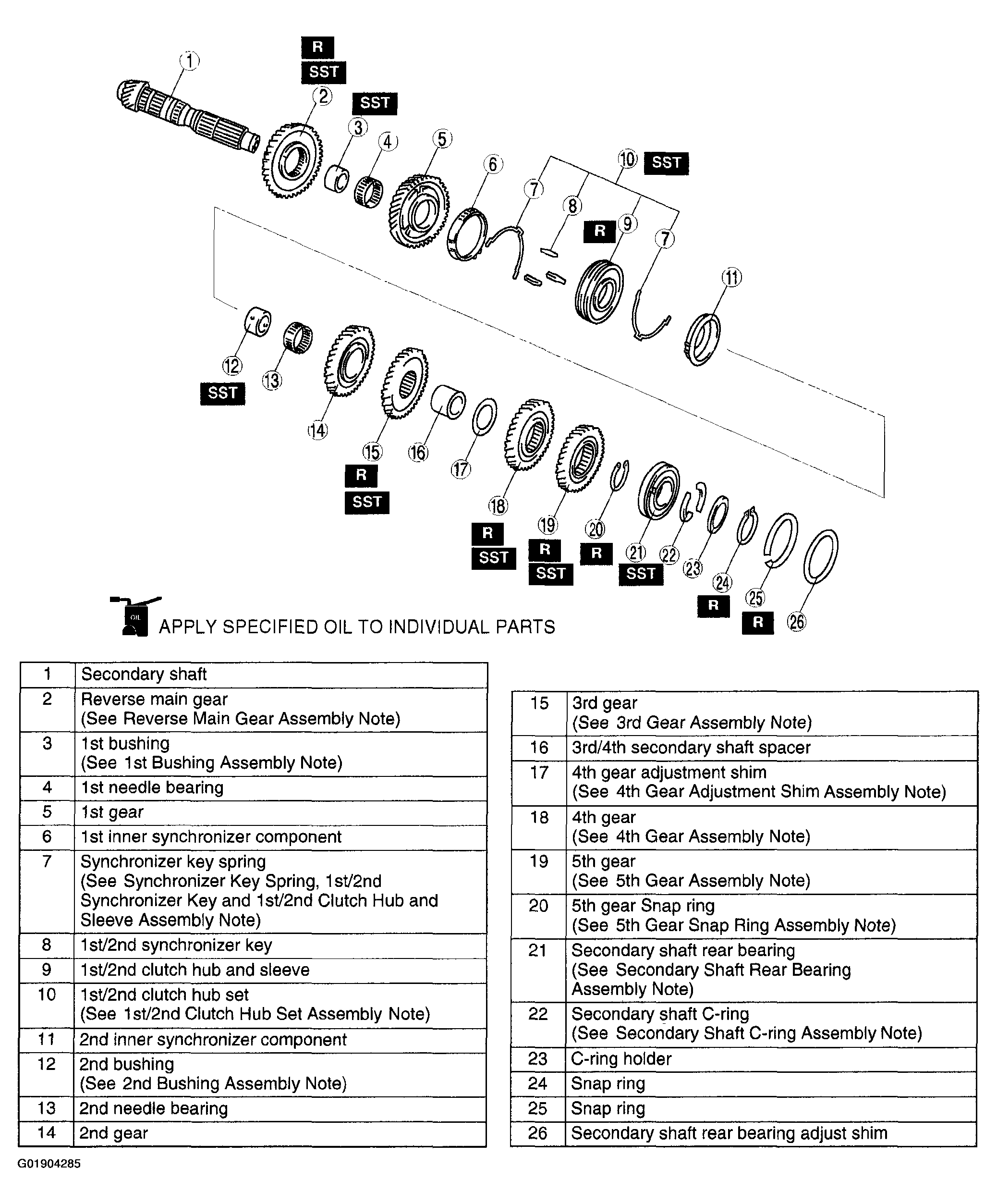

Fig 1: Assembling Secondary Shaft Components

G01904285

Courtesy of MAZDA MOTORS CORP.
