Manual Transaxle - Overhaul (A65M-R)
>>
Primary Shaft Components Disassembly
>>
Notes
Primary Shaft Components Disassembly: Notes
Disassemble in the order shown in the figure.

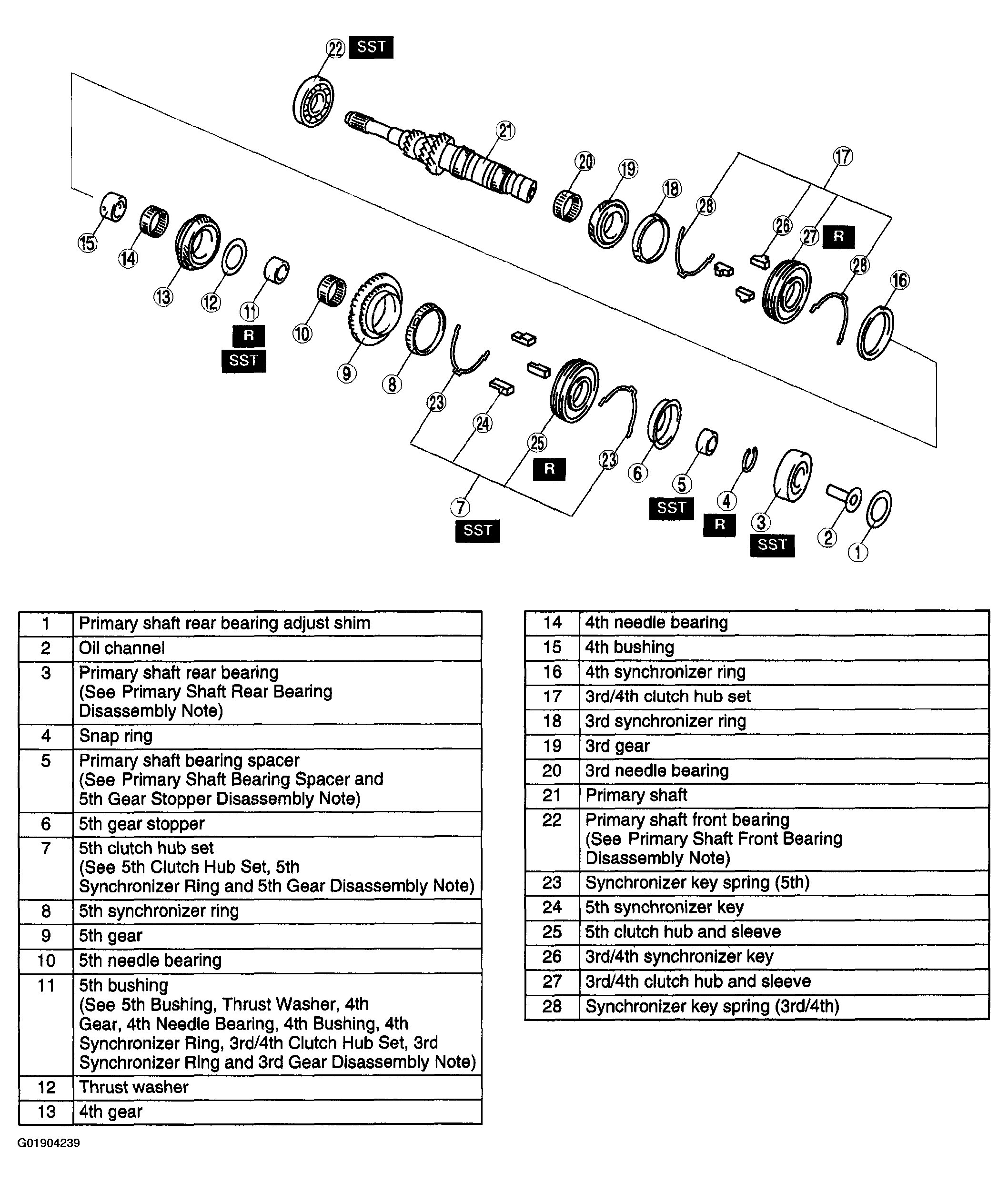

Fig 1: Disassembling Primary Shaft Components
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
