Home >> Mazda >> 2003 >> 6 s, Standard >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Technical Data [Transaxle) >> Transmission/Transaxle Technical Data

Transmission/Transaxle Technical Data

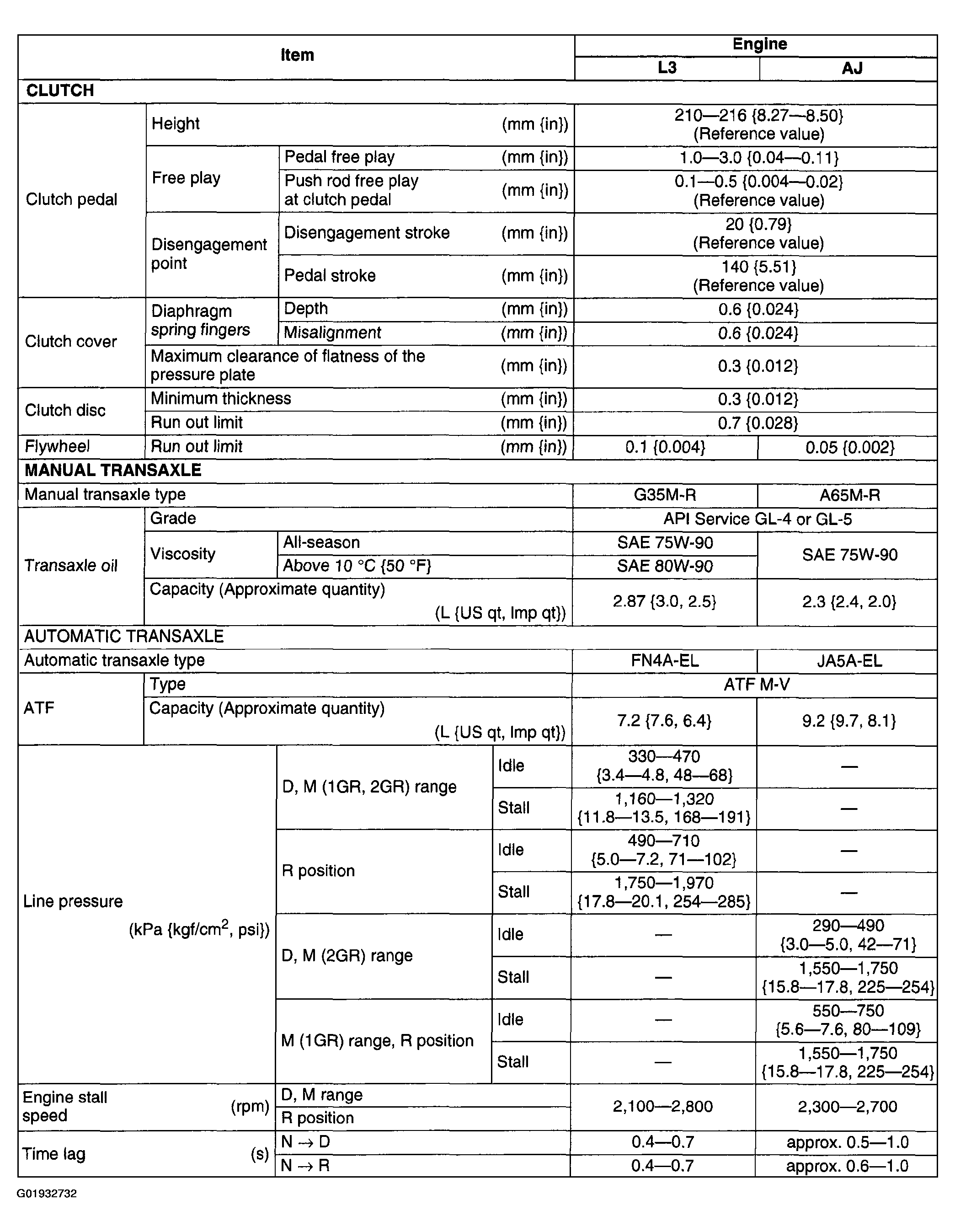

Fig 1: Transmission/Transaxle Technical Data (1 Of 2)
G01932732Courtesy of MAZDA MOTORS CORP.

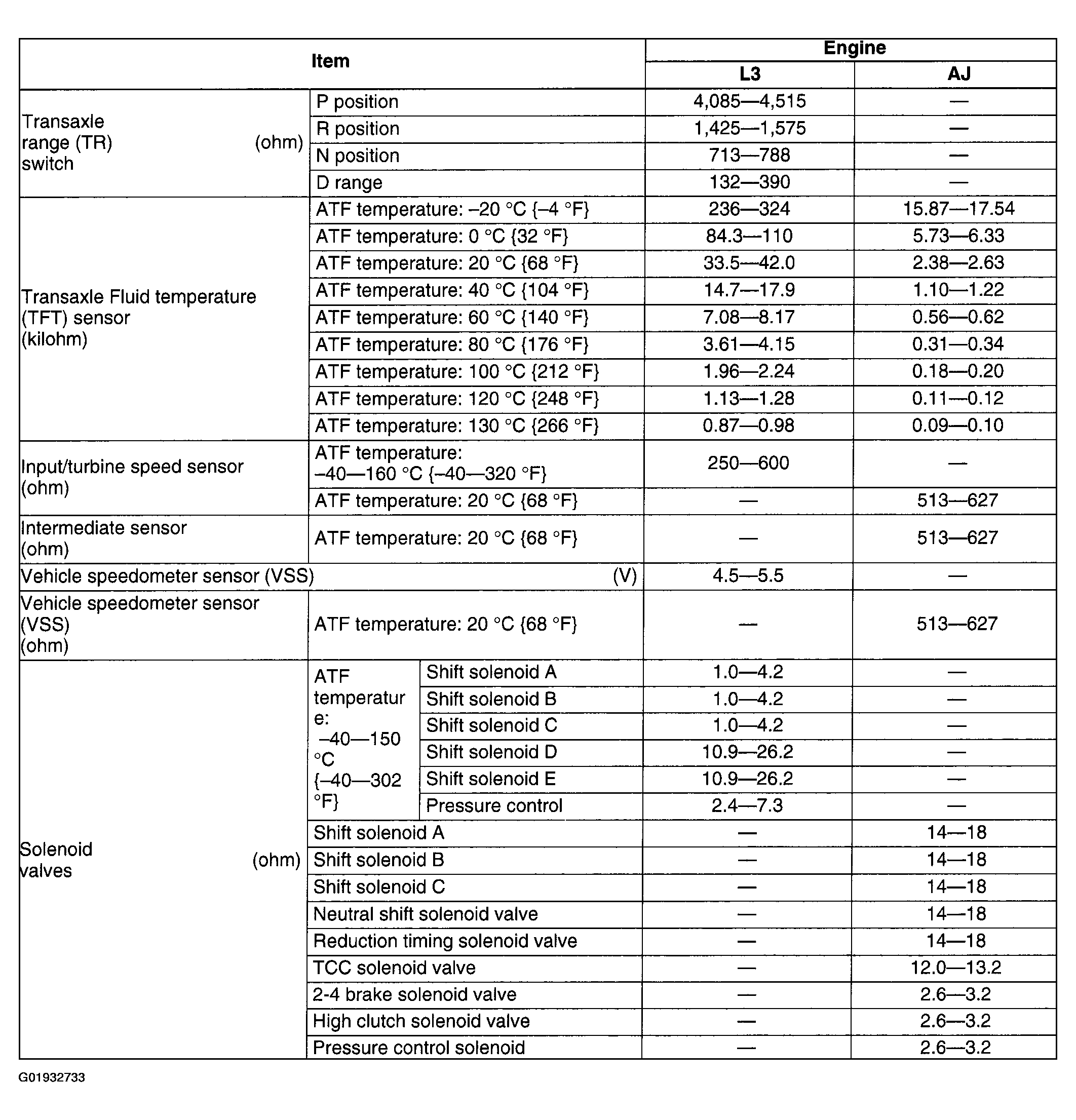

Fig 2: Transmission/Transaxle Technical Data (2 Of 2)
G01932733Courtesy of MAZDA MOTORS CORP.
