Steering Gear And Linkage Disassembly: Notes

CAUTION:
  • Place copper plates, rag, or similar material in a vise, when securing the mounting bracket portion of the steering gear.
  1. Disassemble in the order indicated in Fig 1.

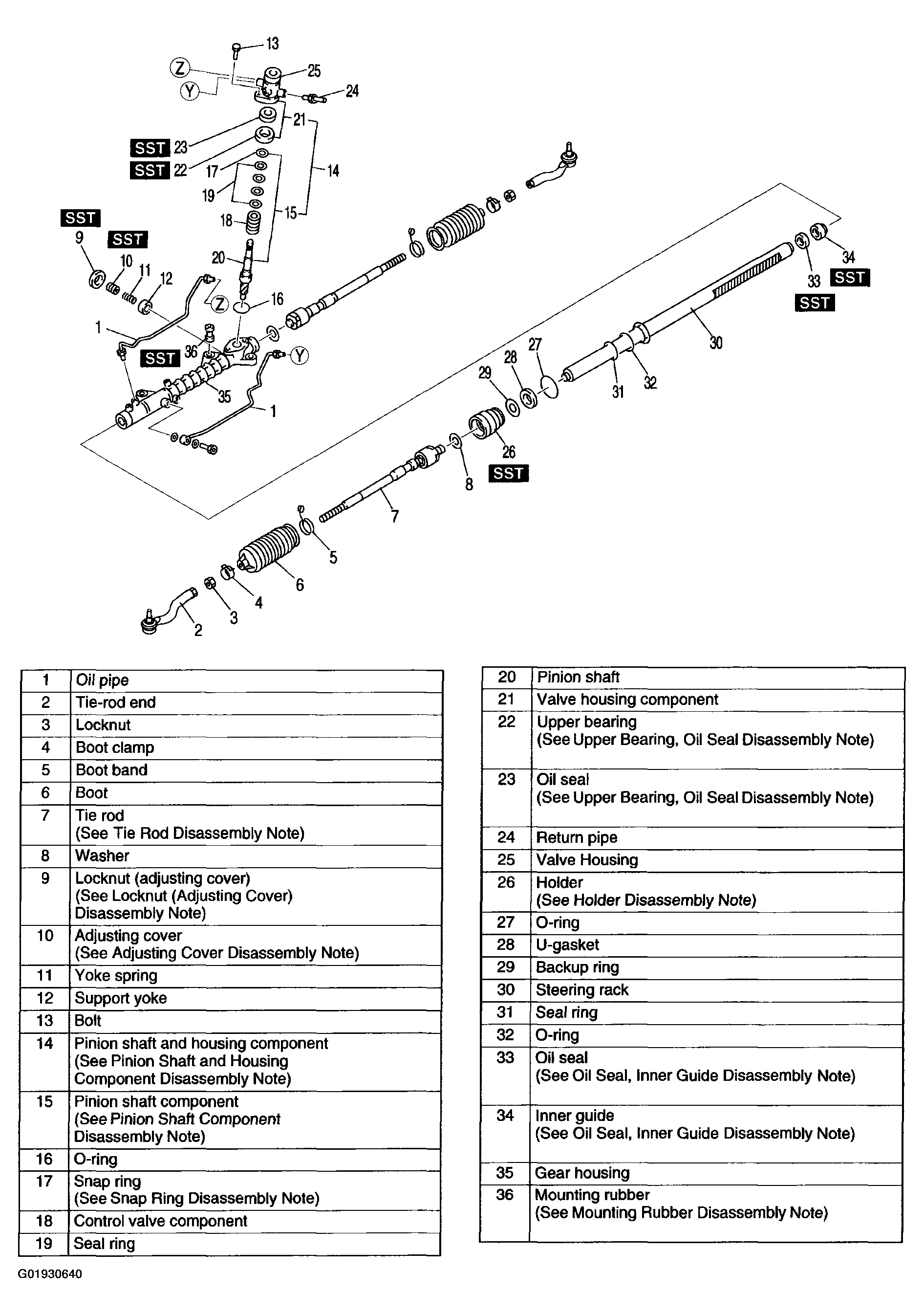

    Fig 1: Exploded View Of Steering Gear And Linkage
    G01930640Courtesy of MAZDA MOTORS CORP.
