Power Steering Oil Pump (L3) Disassembly/Assembly: Notes

NOTE:
  • The following procedure is for replacement of the O-ring and oil seal only. Replace the pump component if other repairs are necessary.
  1. Disassemble in the order indicated in Fig 1.

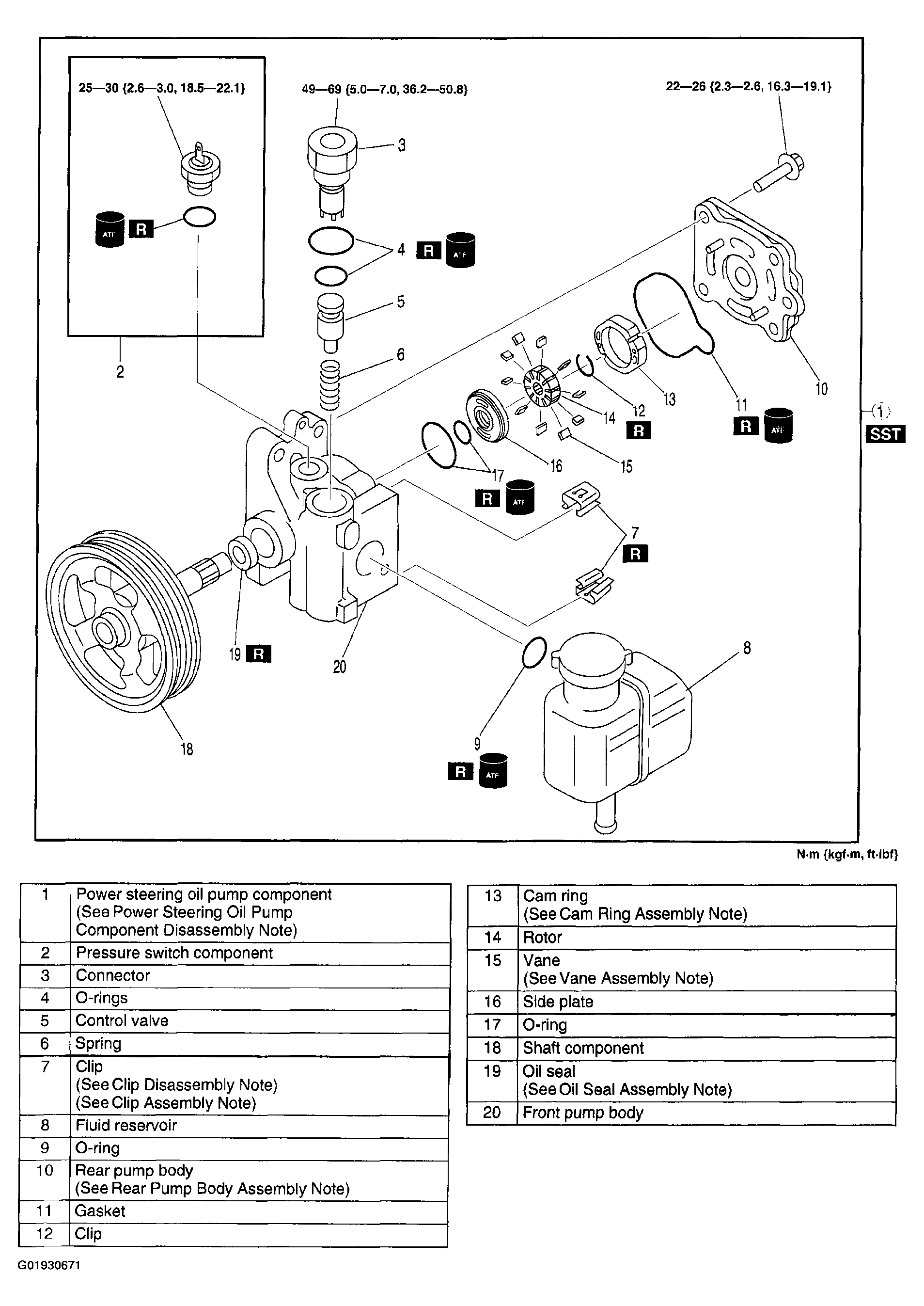

    Fig 1: Exploded View Of Power Steering Oil Pump (L3)
    G01930671Courtesy of MAZDA MOTORS CORP.
  2. Assemble in the reverse order of disassembly.
