Engine SST

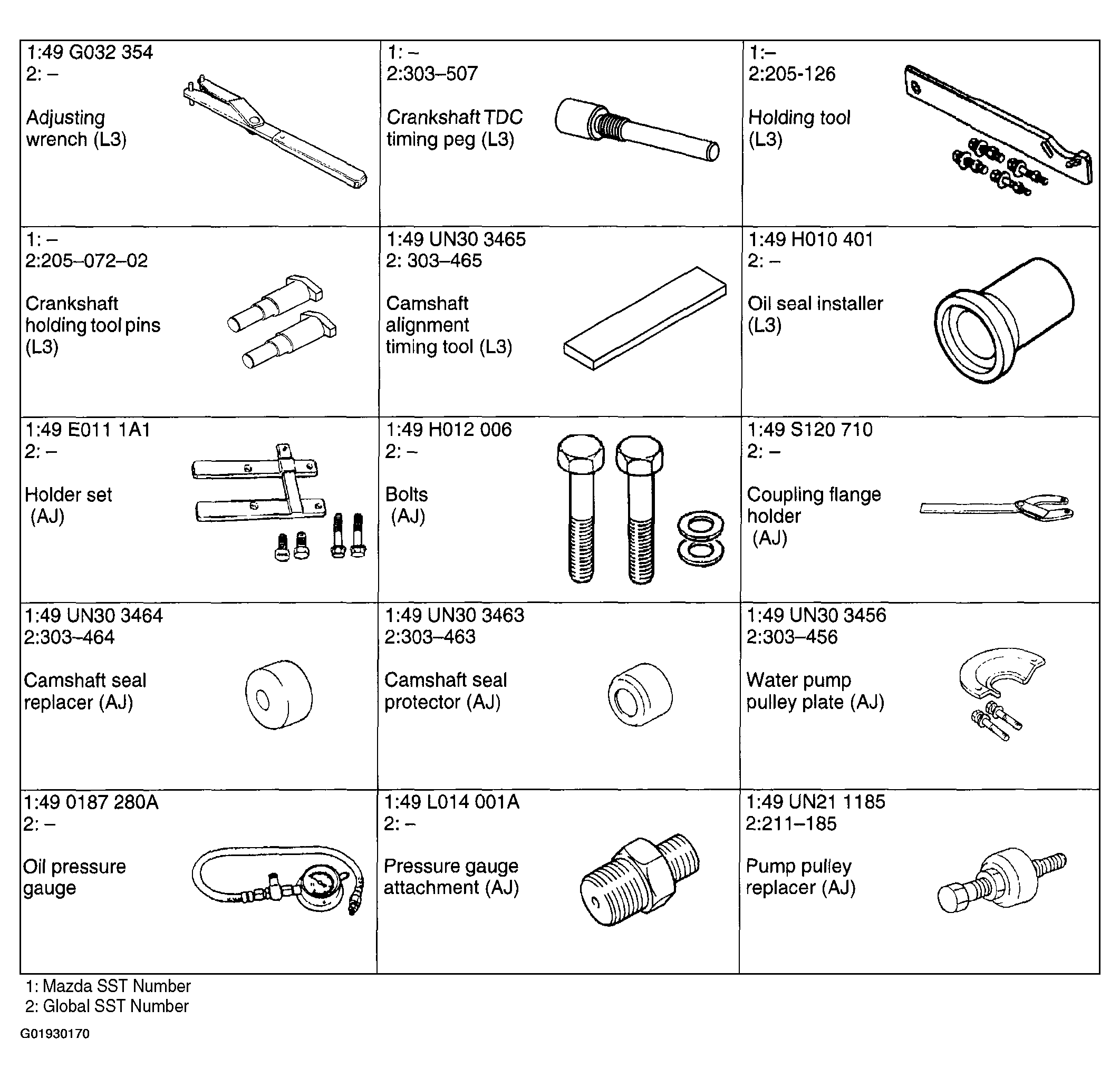

Fig 1: Identifying Service Tools (1 Of 2)

G01930170

Courtesy of MAZDA MOTORS CORP.

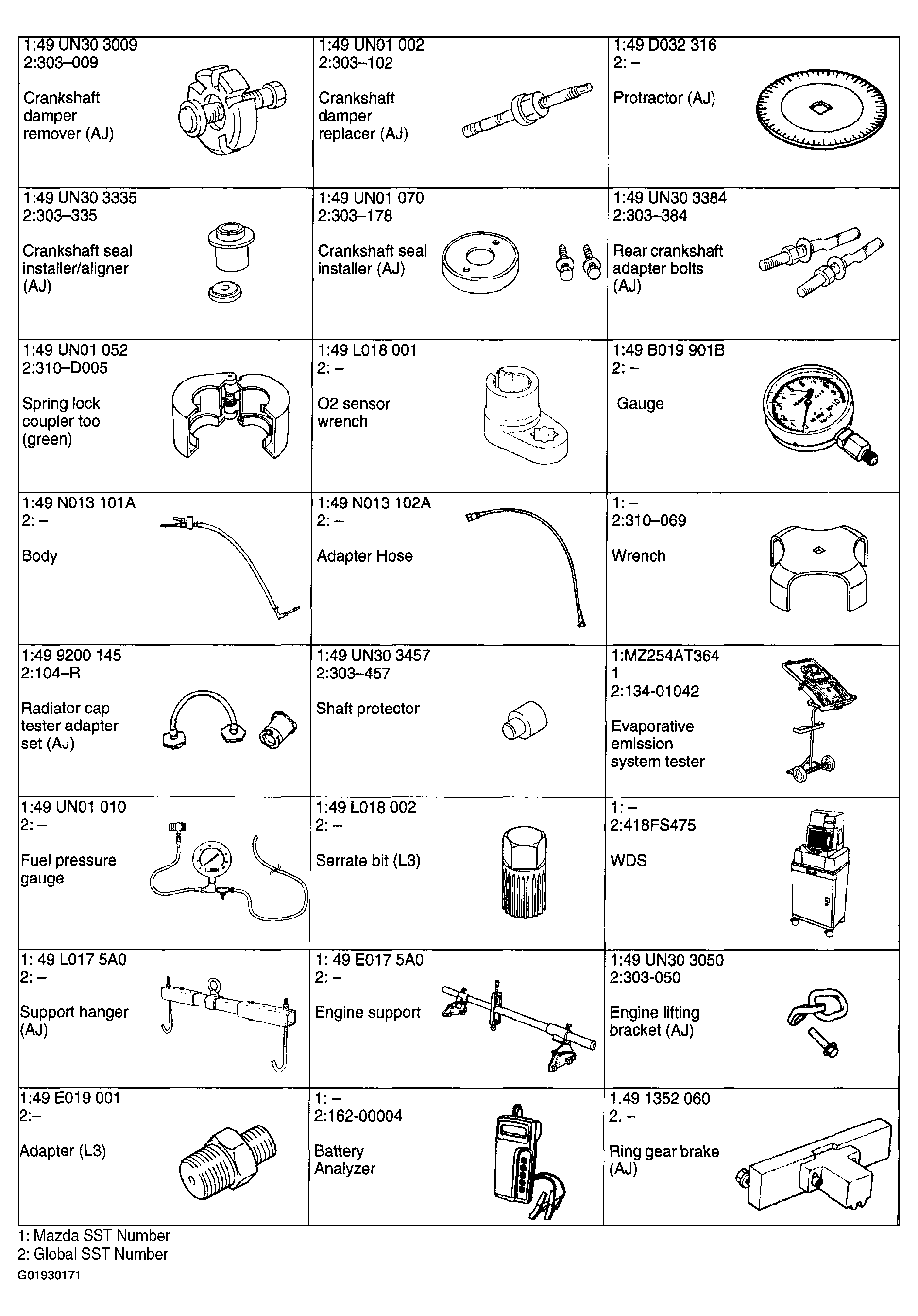

Fig 2: Identifying Service Tools (2 Of 2)

G01930171

Courtesy of MAZDA MOTORS CORP.
