Home >> Mazda >> 2003 >> 6 s, Standard >> Repair and Diagnosis >> Body & Frame >> Seats >> Seat Warmer Switch Removal/Installation >> Notes

Seat Warmer Switch Removal/Installation: Notes

  1. Disconnect the negative battery cable.
  2. Remove the panel No. 1.
  3. Remove in the order indicated.

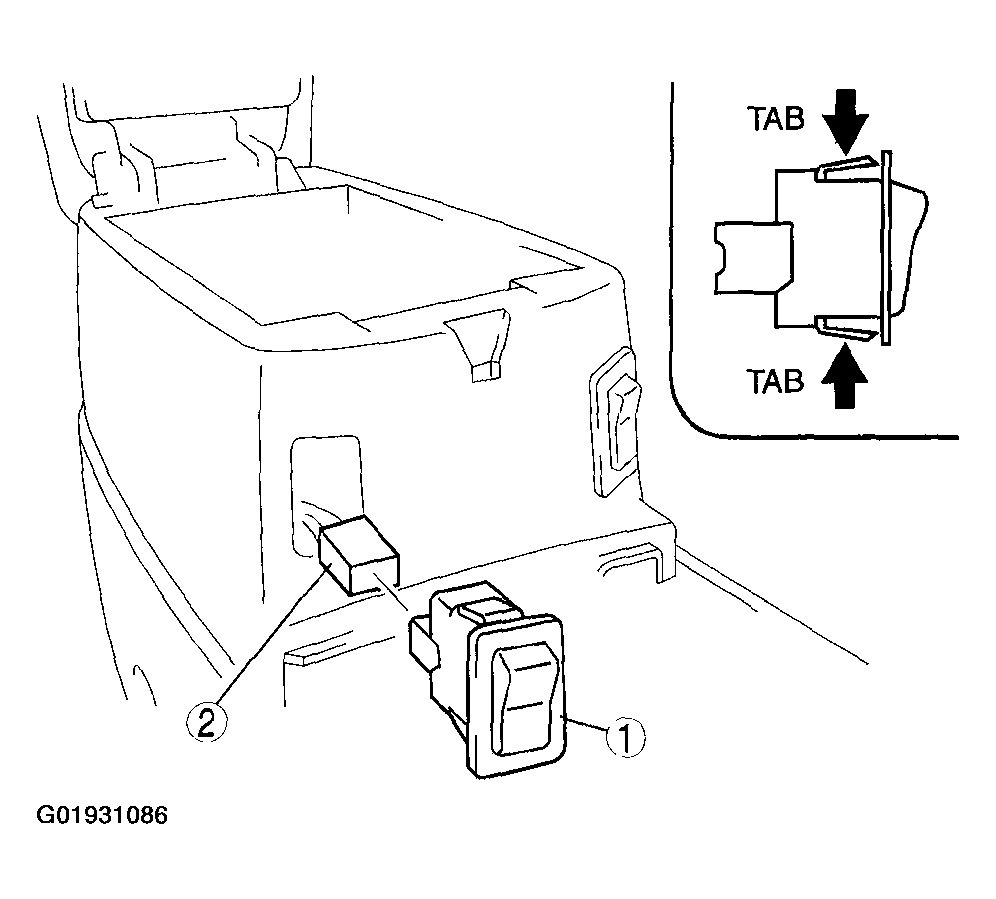

    Fig 1: Identifying Seat Warmer Switch
    G01931086Courtesy of MAZDA MOTORS CORP.
    Fig 2: Seat Warmer Switch Removal Sequence
    G01931085Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
