Home >> Mazda >> 2003 >> 6 s, Standard >> Repair and Diagnosis >> Body & Frame >> Seats >> Rear Seat Removal/Installation >> Notes

Rear Seat Removal/Installation: Notes

  1. Remove in the order indicated.

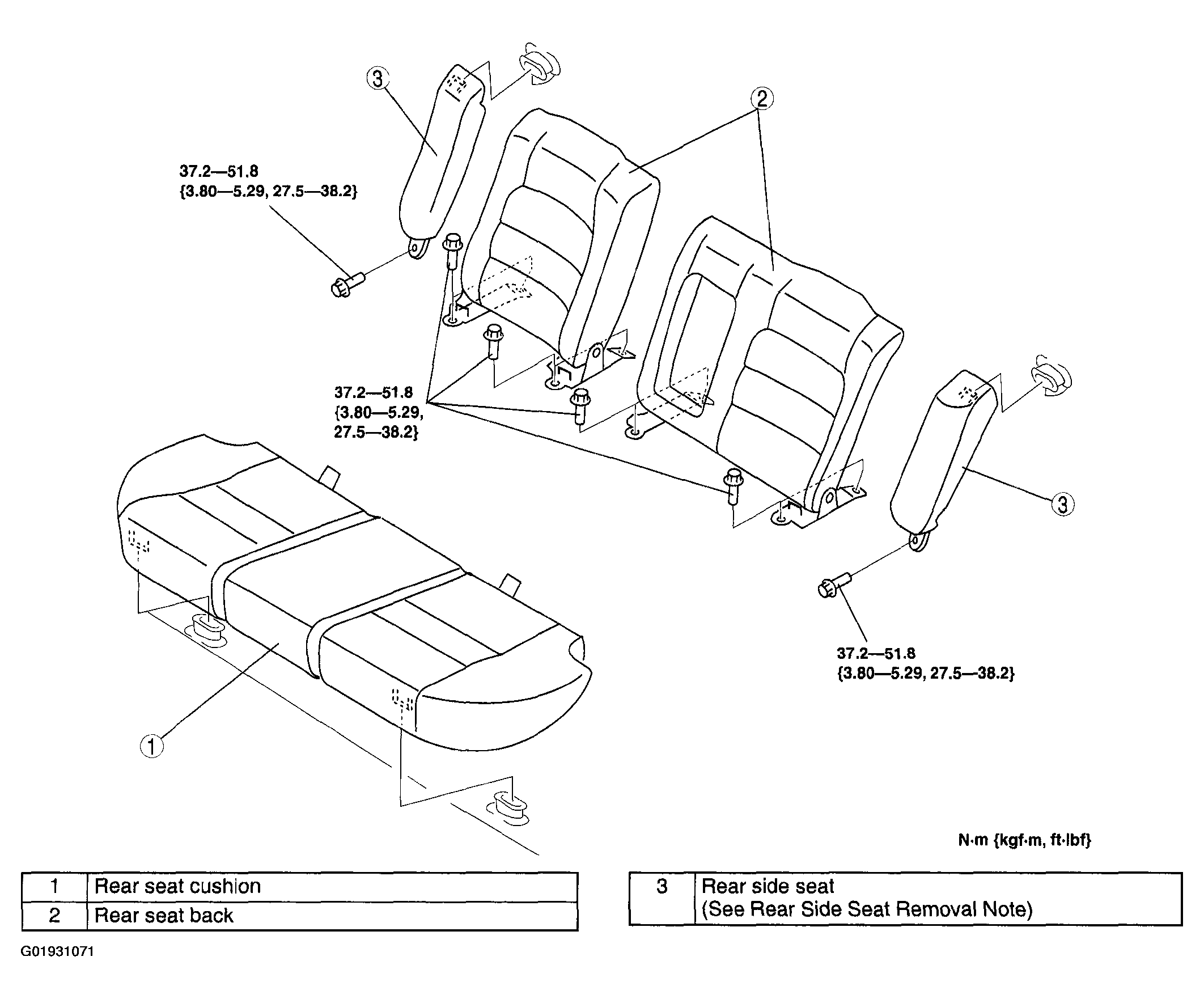

    Fig 1: Removing Rear Seat
    G01931071Courtesy of MAZDA MOTORS CORP.
  2. Install in the reverse order of removal.
