Power Seat Switch Inspection

  1. Disconnect the power seat switch connector.
  2. Disconnect the rear tilt motor connector.
  3. Inspect for continuity between the power seat switch connector terminals using an ohmmeter.
    • If not as specified, replace the power seat switch.

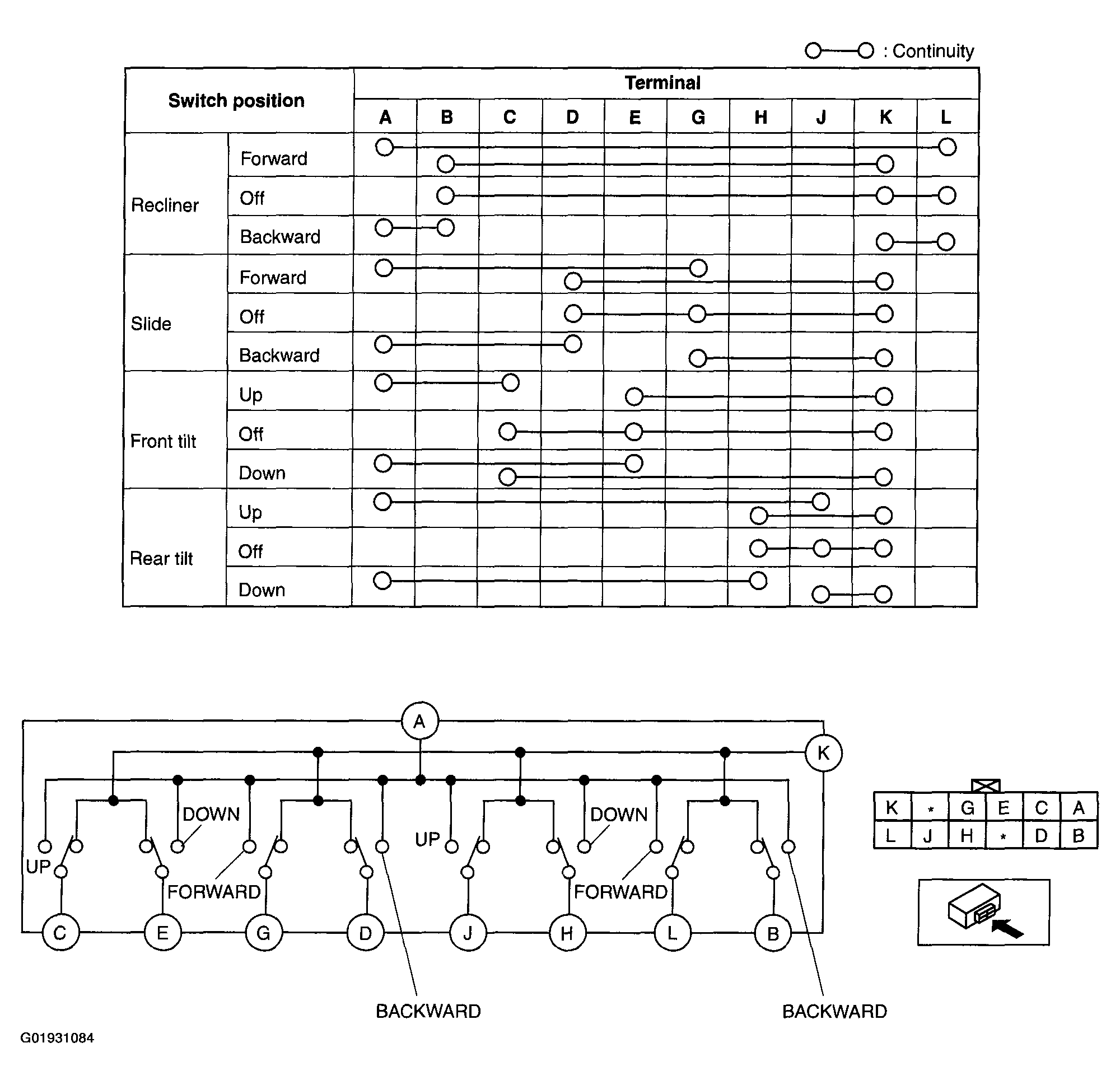

    Fig 1: Power Seat Switch Continuity Chart & Connector Terminal Identification
    G01931084Courtesy of MAZDA MOTORS CORP.
