Front Seat Removal/Installation

WARNING:

Handling the front seat (with a side air bag) improperly can accidentally deploy the side air bag, which may seriously injure you. Read AIR BAG SAFETY PRECAUTIONS before handling the front seat (with a side air bag).

Turn the ignition switch to the LOCK position.
Disconnect the negative battery cable and wait for more than 1 minute .
Remove in the order indicated in the figure below.

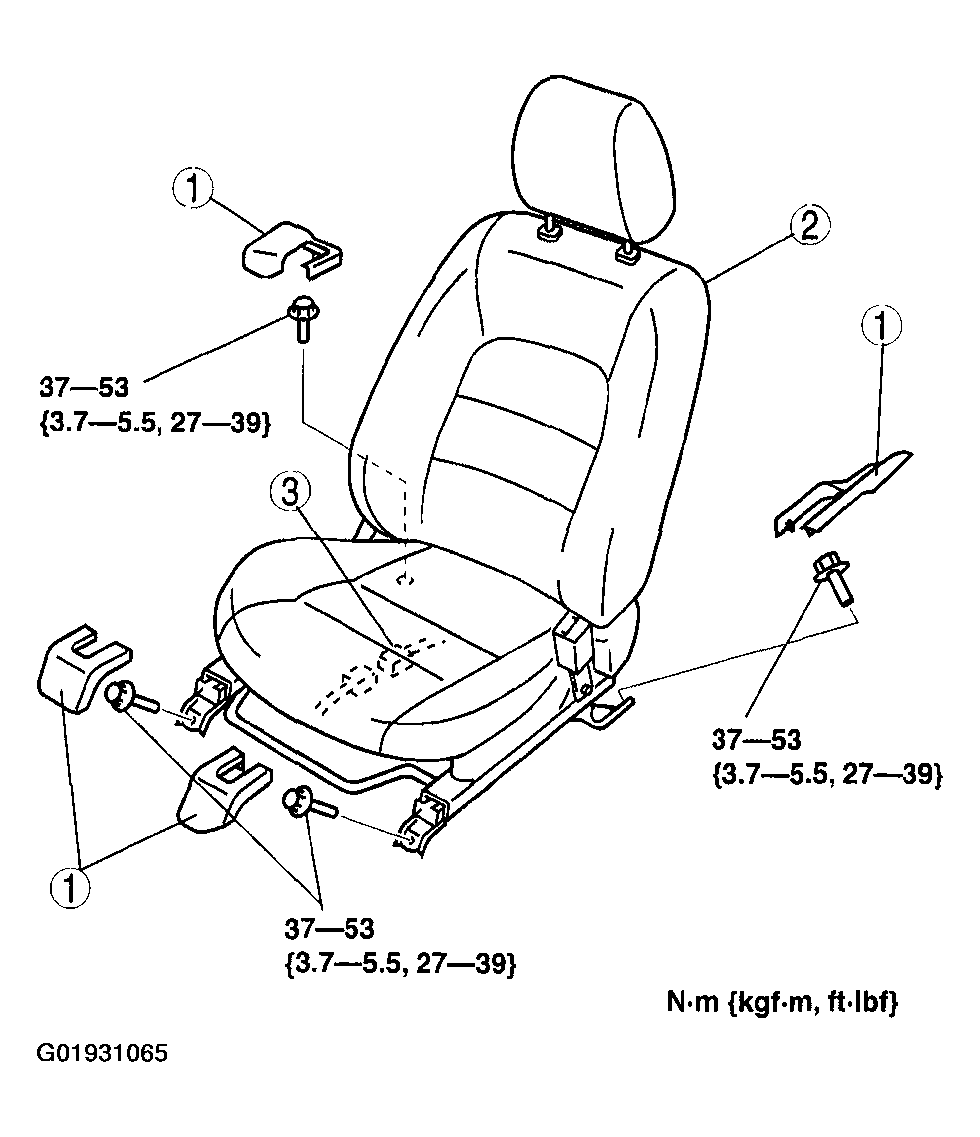

Fig 1: Identifying Front Components
Courtesy of MAZDA MOTORS CORP.

Fig 2: Front Seat Removal Sequence
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
