Powertrain Control Module (PCM) Connector End View

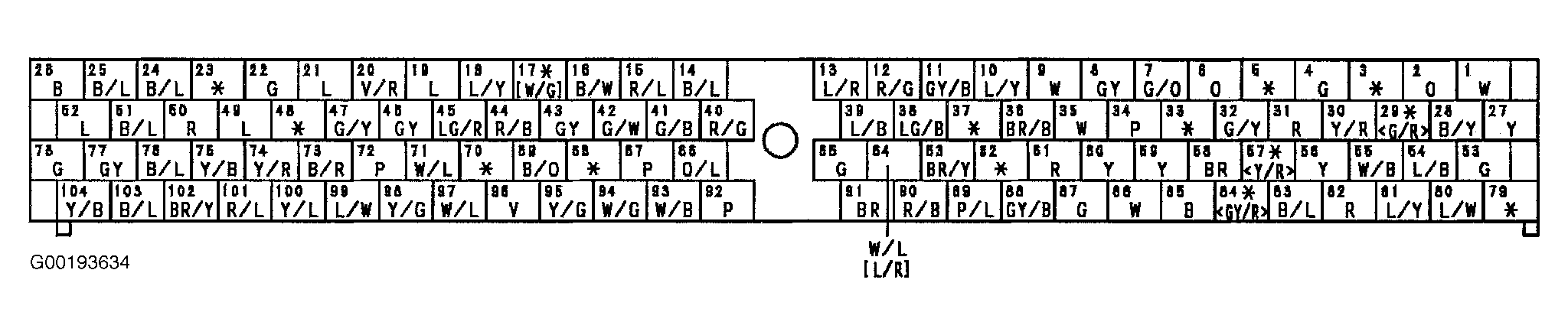

Fig 1: Powertrain Control Module (PCM) Connector End View

G00193634

Courtesy of MAZDA MOTORS CORP.
