Front Abs Wheel-Speed Sensor Removal/Installation

  1. Remove the mud guard.
  2. Remove in the order indicated in Fig 1 .

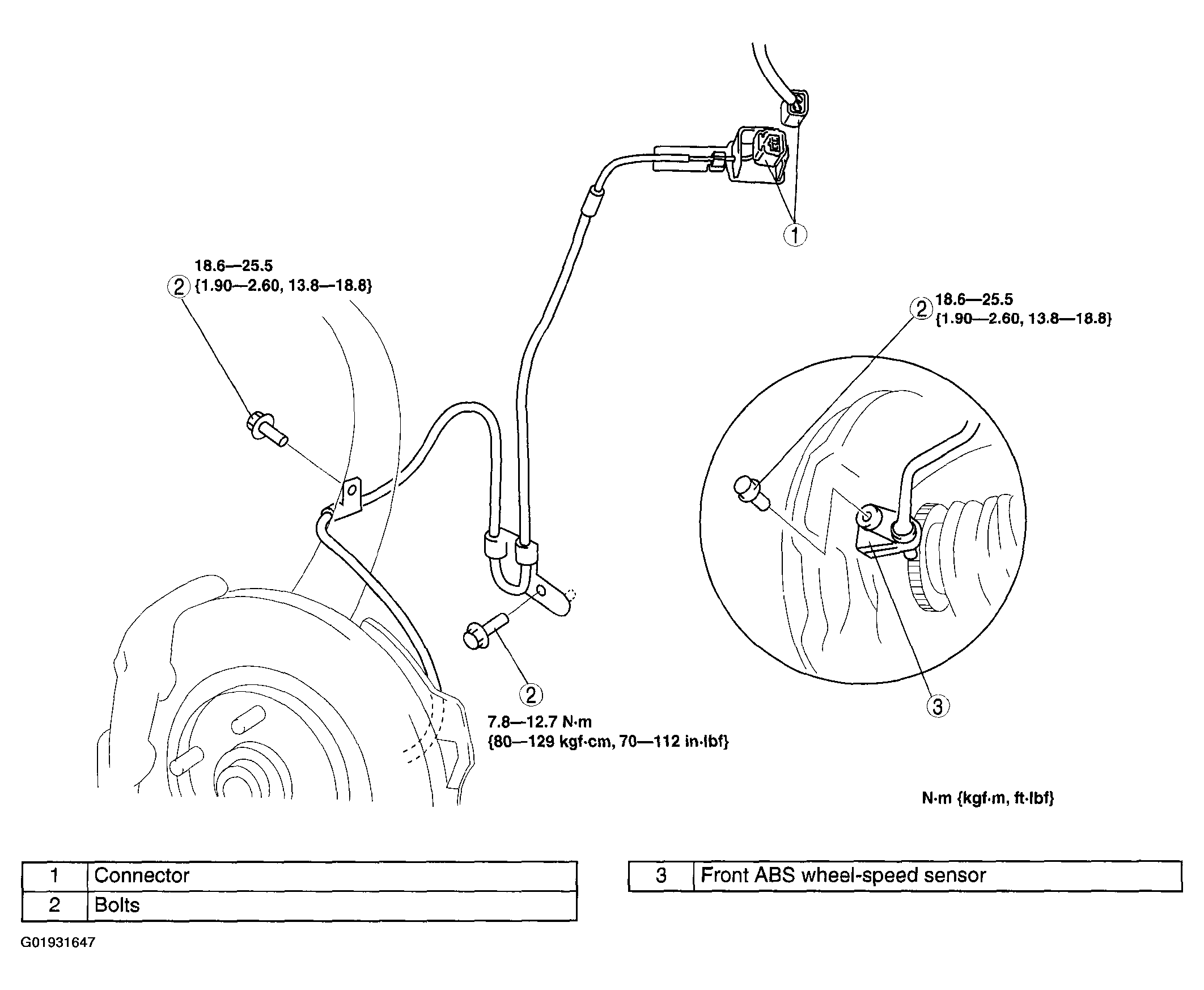

    Fig 1: Front ABS Wheel-Speed Sensor Removal Sequence
    G01931647Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
