Panel Light Control Switch Removal/Installation: Notes

  1. Disconnect the negative battery cable.
  2. Remove in the order indicated in the figure(s).

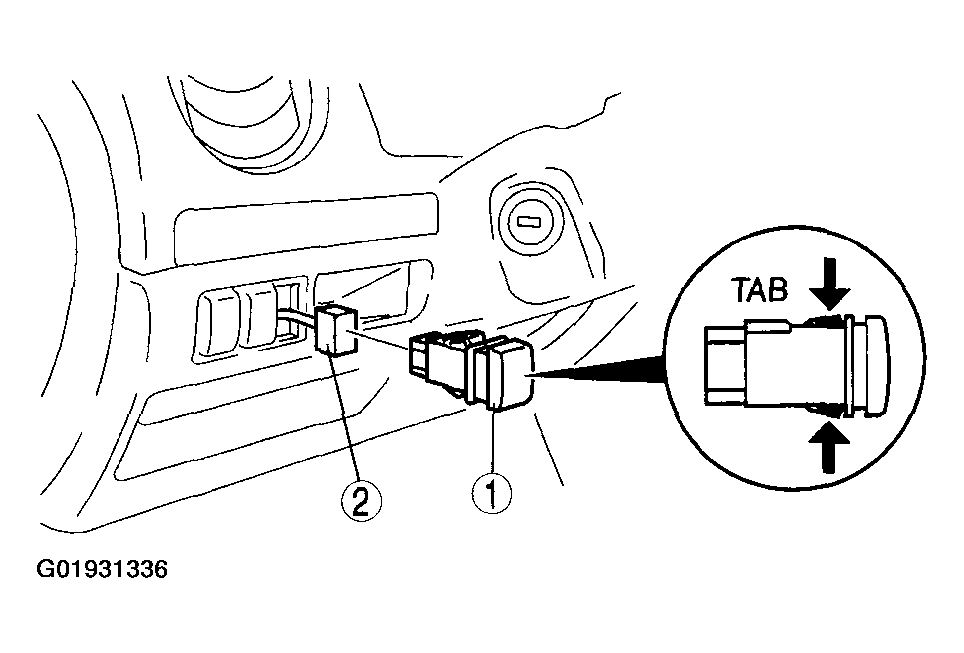

    Fig 1: Removing Panel Light Control Switch
    G01931336Courtesy of MAZDA MOTORS CORP.
    Fig 2: Panel Light Control Switch Removal Sequence
    G01931335Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
