Auto Light-Off Control Module Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove in the order indicated in the figure(s).

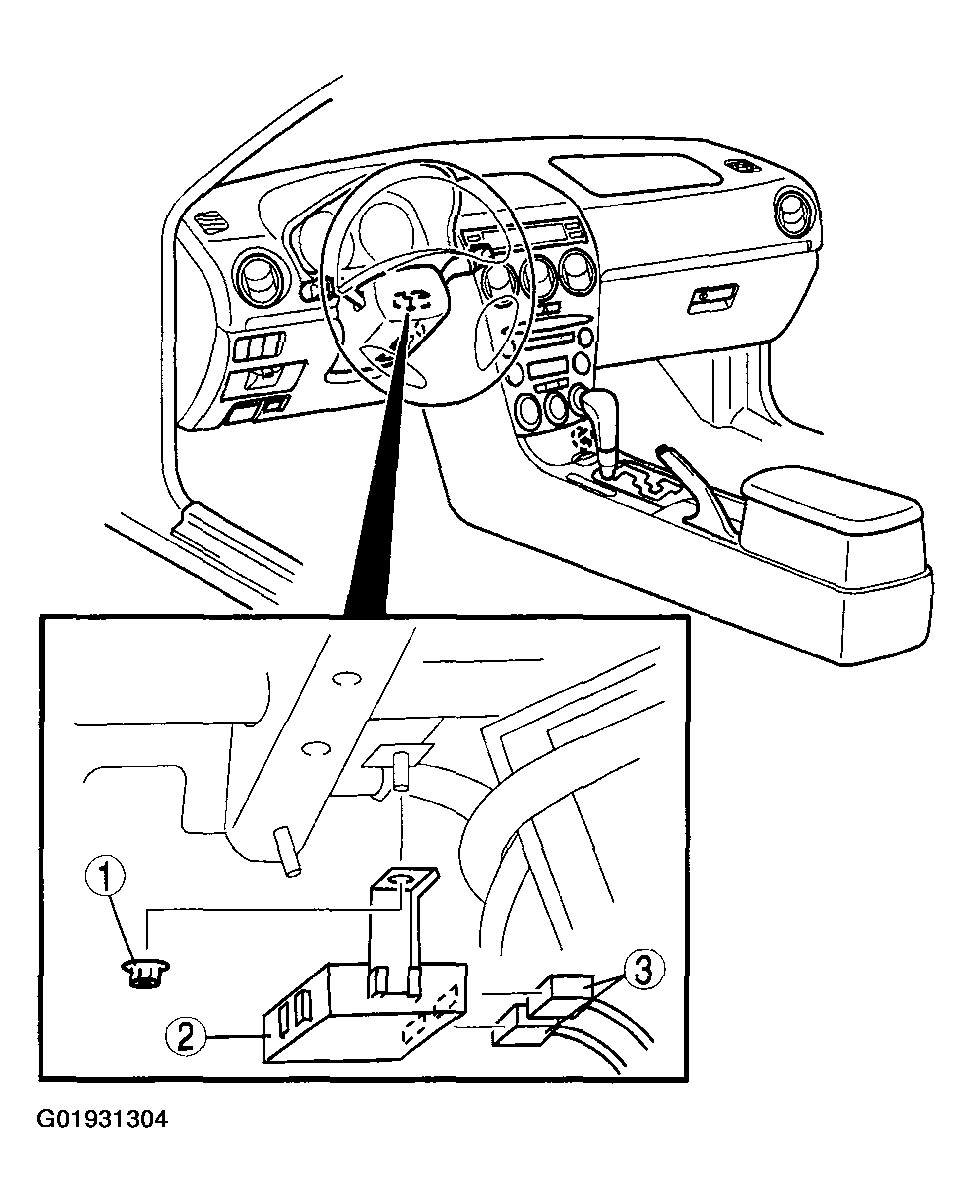

    Fig 1: Removing Auto Light-Off Control Module
    G01931304Courtesy of MAZDA MOTORS CORP.
    Fig 2: Auto Light-Off Control Module Removal Sequence
    G01931303Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
