Selector Cable Adjustment

  1. Remove the center console.
  2. Shift the selector lever to P  position.
  3. Unlock the lock piece of the selector cable (selector lever side) in the order shown in Fig 1 .
    Fig 1: Unlocking Lock Piece Of Selector Cable (Selector Lever Side)
    G01932706Courtesy of MAZDA MOTORS CORP.
  4. Verify that the manual shaft is in P  position.
  5. Lock the lock piece of the selector cable (selector lever side) in the order shown in Fig 2 .

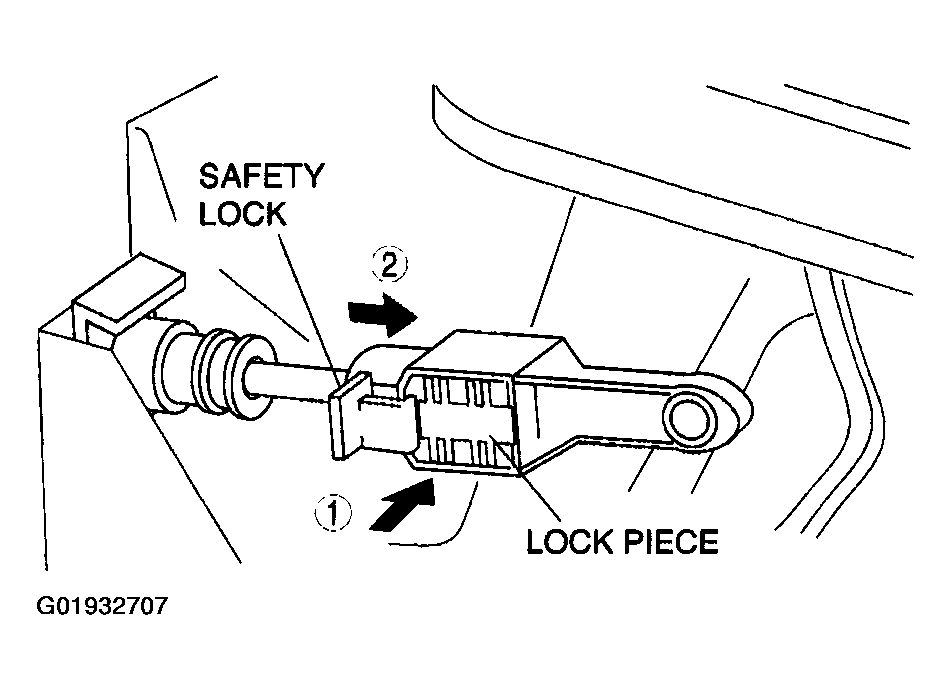

    Fig 2: Locking Lock Piece Of Selector Cable (Selector Lever Side)
    G01932707Courtesy of MAZDA MOTORS CORP.
  6. Install the center console.
  7. Shift the selector lever from P  position to M  range, and make sure that there are no other components in that area to interfere with the lever.
