Monitor Item Table

The PID/DATA monitoring items for the instrument cluster is as shown in the figure below.

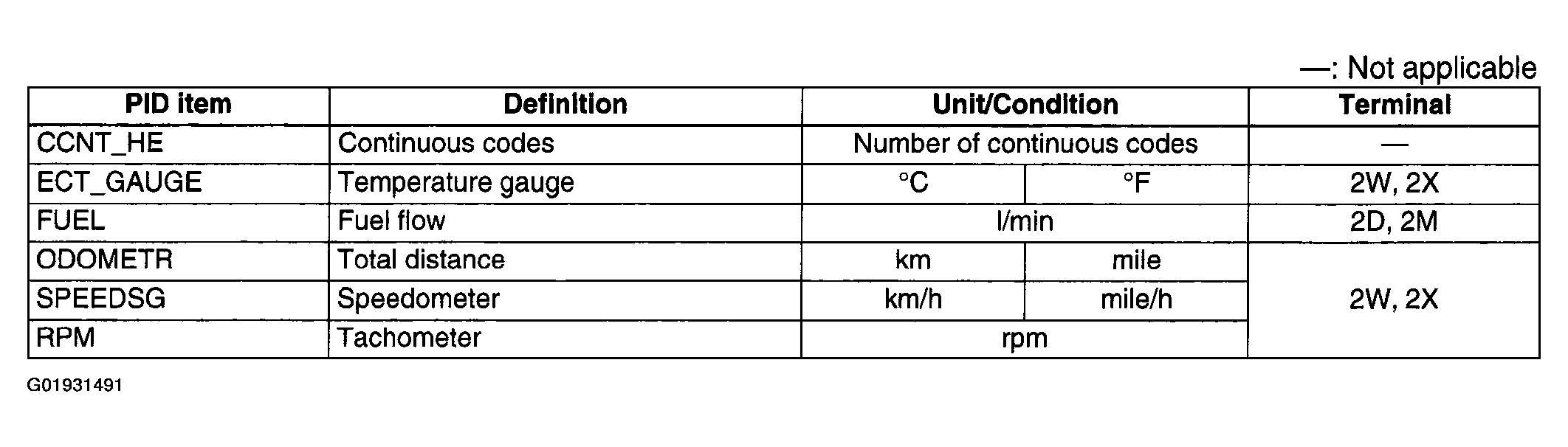

Fig 1: Instrument Cluster PID/DATA Item Monitoring Chart

G01931491

Courtesy of MAZDA MOTORS CORP.
