Cruise Control Switch Inspection

  1. Disconnect the negative battery cable.
  2. Remove the driver-side air bag module. (See DUAL-STAGE DRIVER-SIDE AIR BAG MODULE .)
  3. Disconnect the cruise control switch connector.
  4. Measure the resistance and inspect for continuity between the cruise control switch terminals using an ohmmeter.
    • If not as specified, replace the cruise control switch.

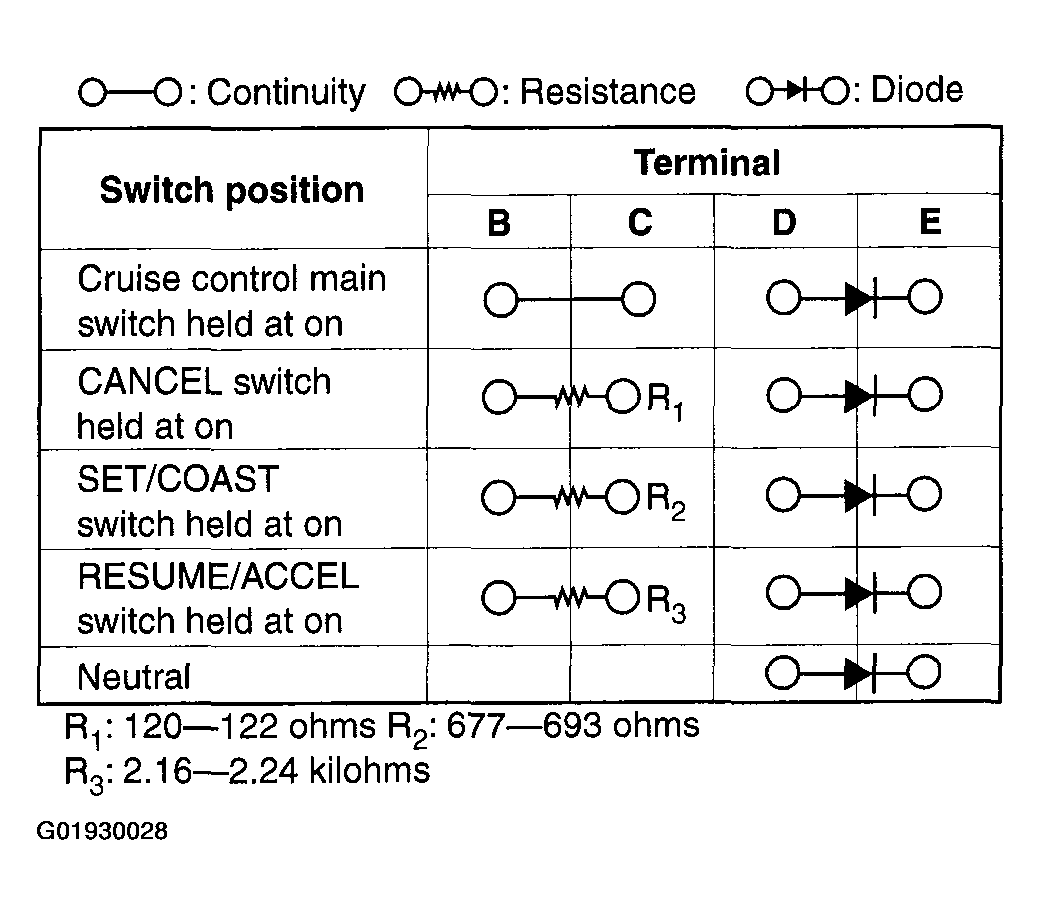

    Fig 1: Continuity & Resistance Specifications - Cruise Control Switch
    G01930028Courtesy of MAZDA MOTORS CORP.

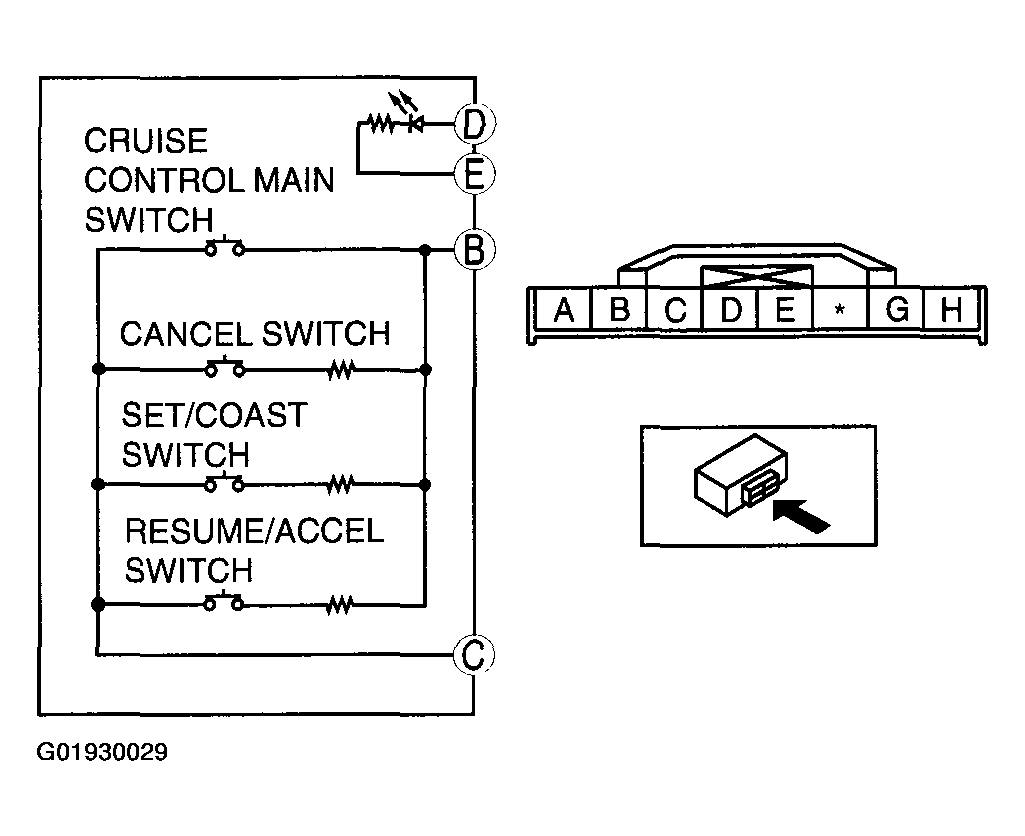

    Fig 2: Continuity & Resistance Specifications - Cruise Control Main Switch
    G01930029Courtesy of MAZDA MOTORS CORP.
