Fan Control Module Connector End View

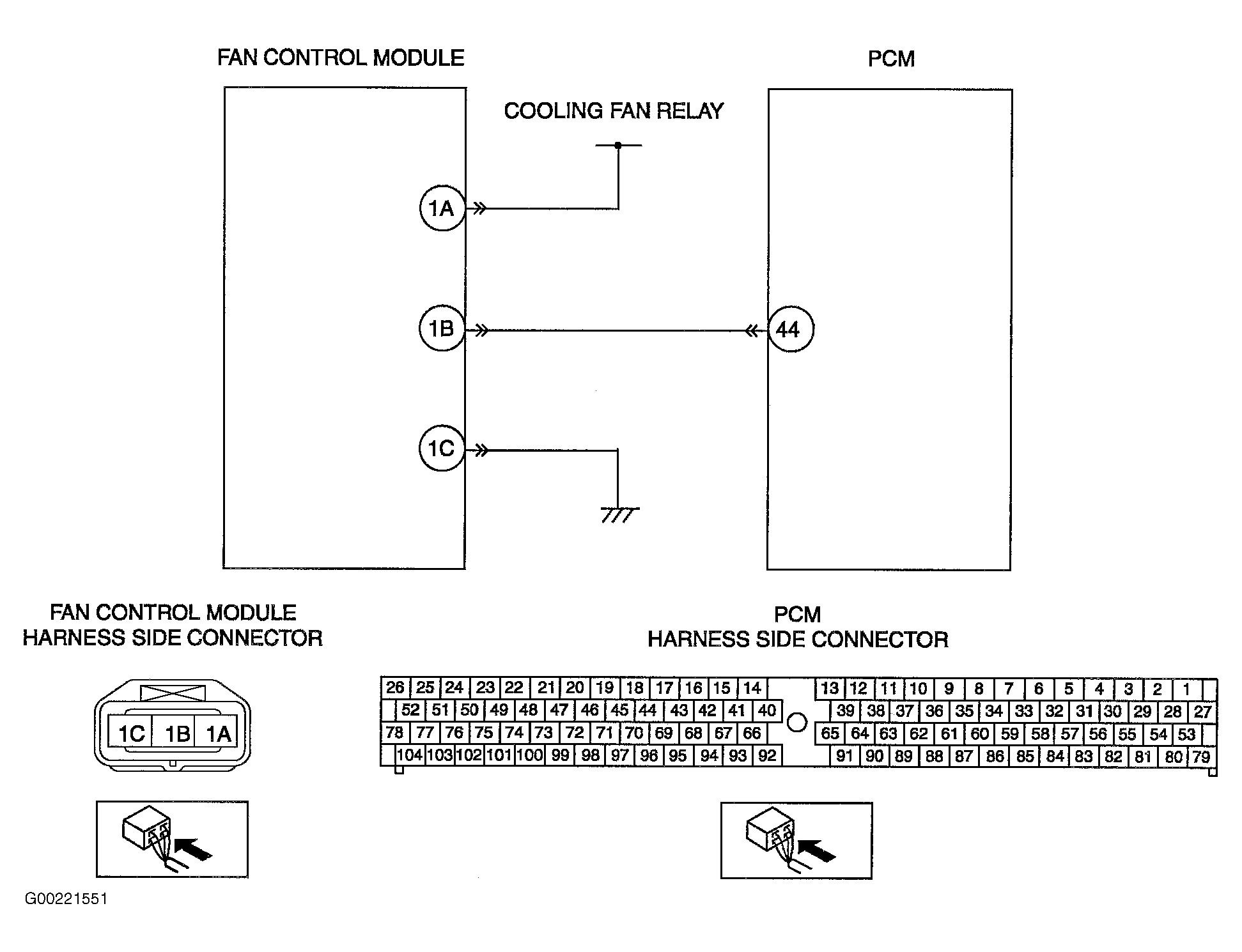

Fig 1: Fan Control Module Connector End View

G00221551

Courtesy of MAZDA MOTORS CORP.
