Manual Transaxle - Overhaul (G35M-R)
>>
Differential Assembly
>>
Notes
Differential Assembly: Notes
Assemble in the order shown in the figure.

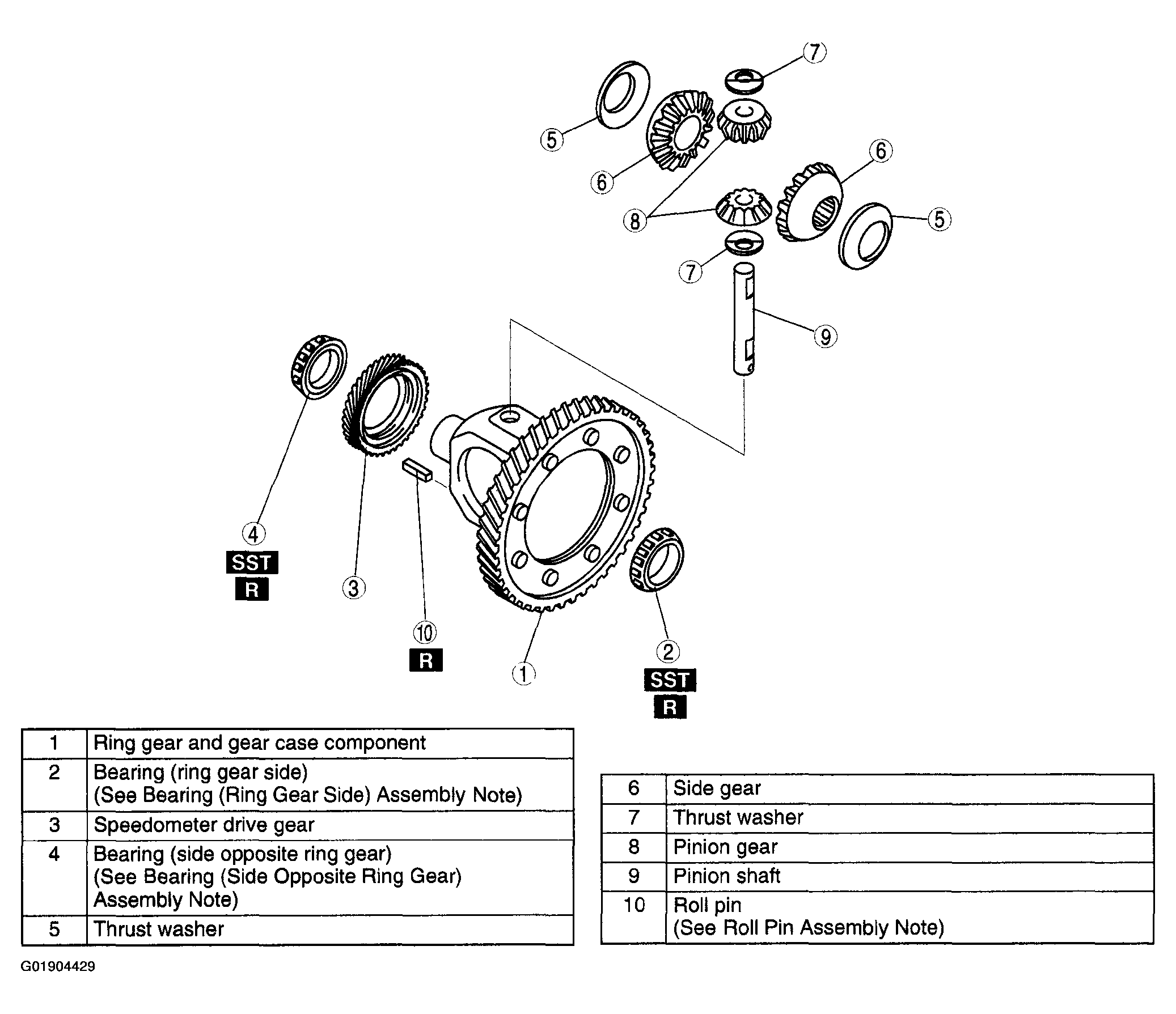

Fig 1: Assembling Differential
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
