Auto-dimming Mirror

  1. Disconnect the negative battery cable.
  2. Remove the cover.
  3. Disconnect the auto-dimming mirror connector.
  4. Remove the screw.
  5. Remove the rearview mirror.
  6. Install in the reverse order of removal.

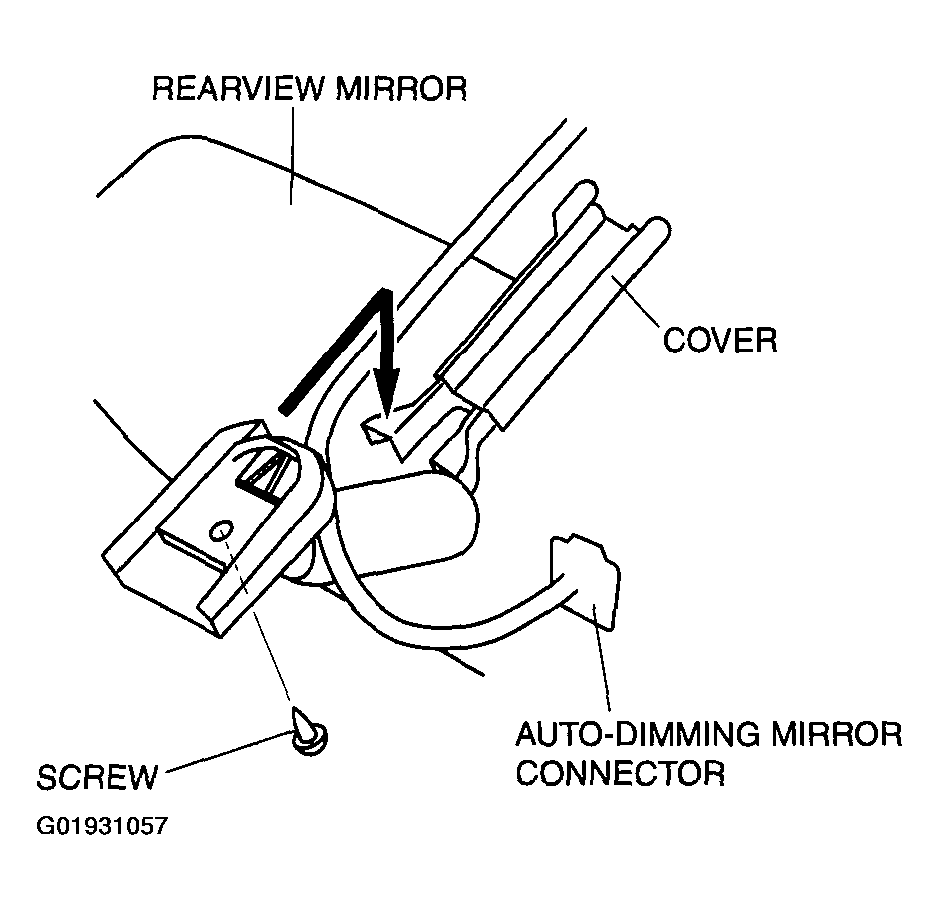

    Fig 1: Removing Rearview Mirror
    G01931057Courtesy of MAZDA MOTORS CORP.
