Procedures For Determining Location Of A Malfunction: Pcm

1. Check display of DTC U0121 and/or U0155, using scan tool. See Fig 1.

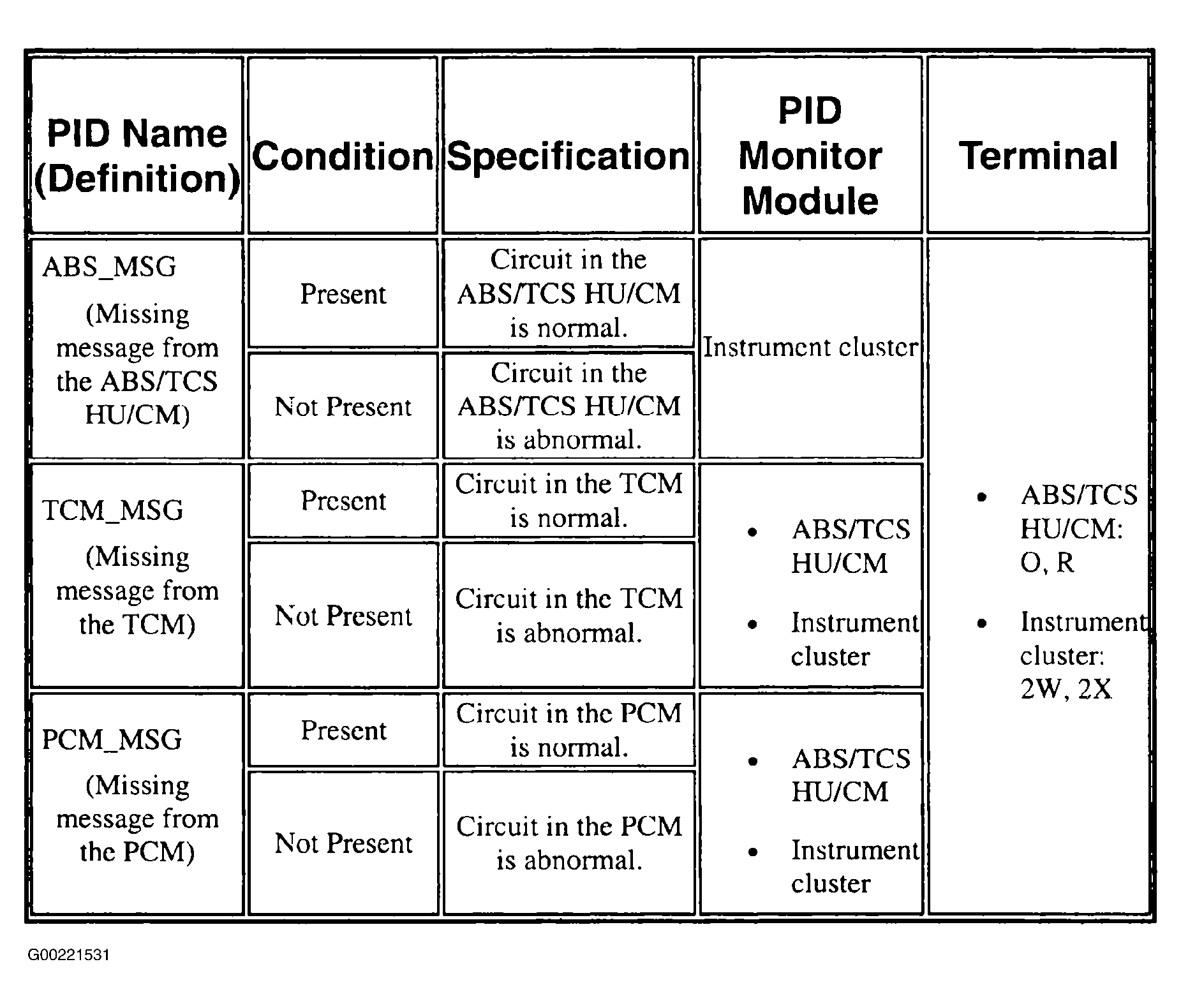

   Fig 1: DTC Table (Multiplex Communication System)

   Courtesy of MAZDA MOTORS CORP.

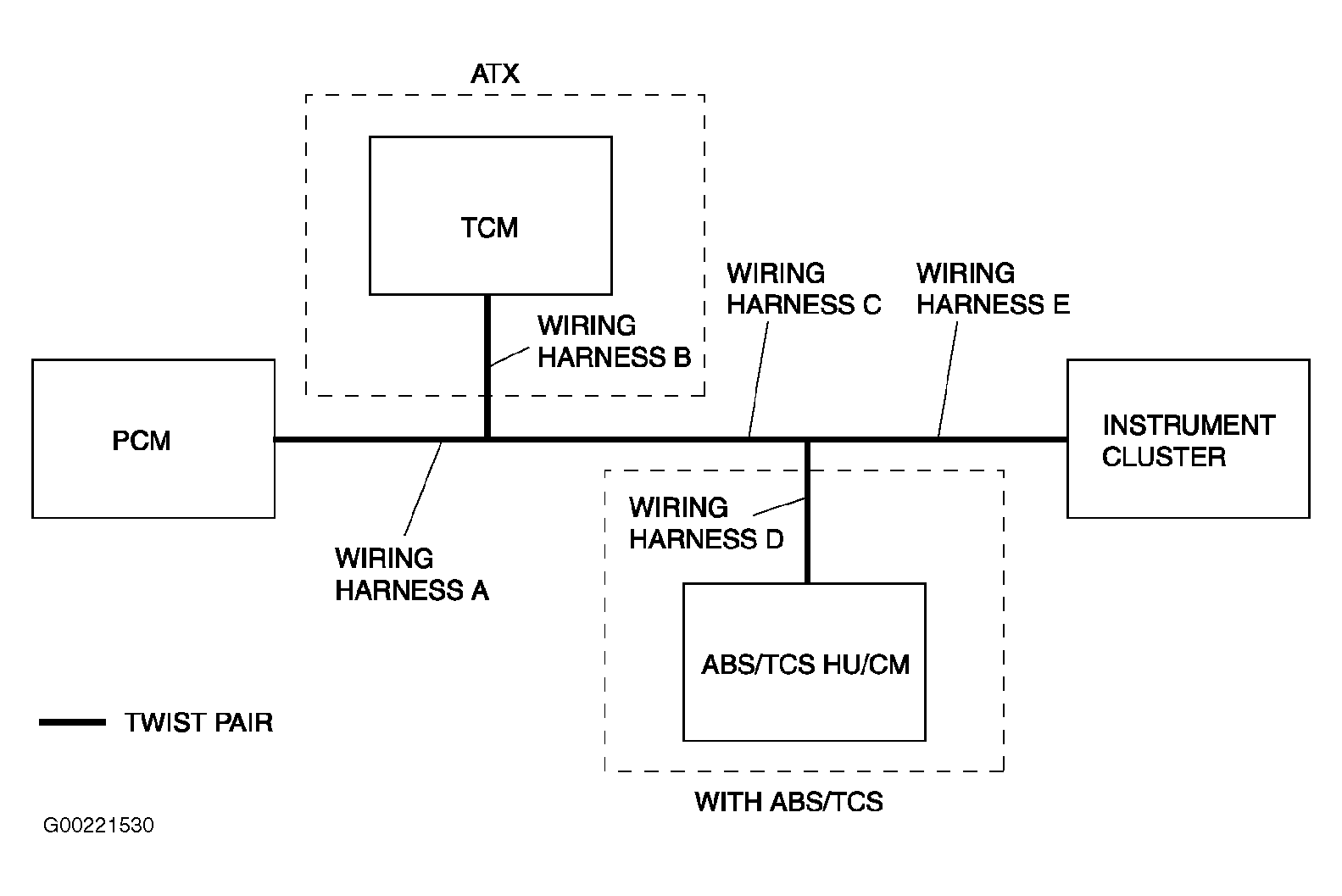

2. Referring to PCM Malfunction Locator Table, determine malfunctioning part of CAN system. See Figure and Fig 2 .

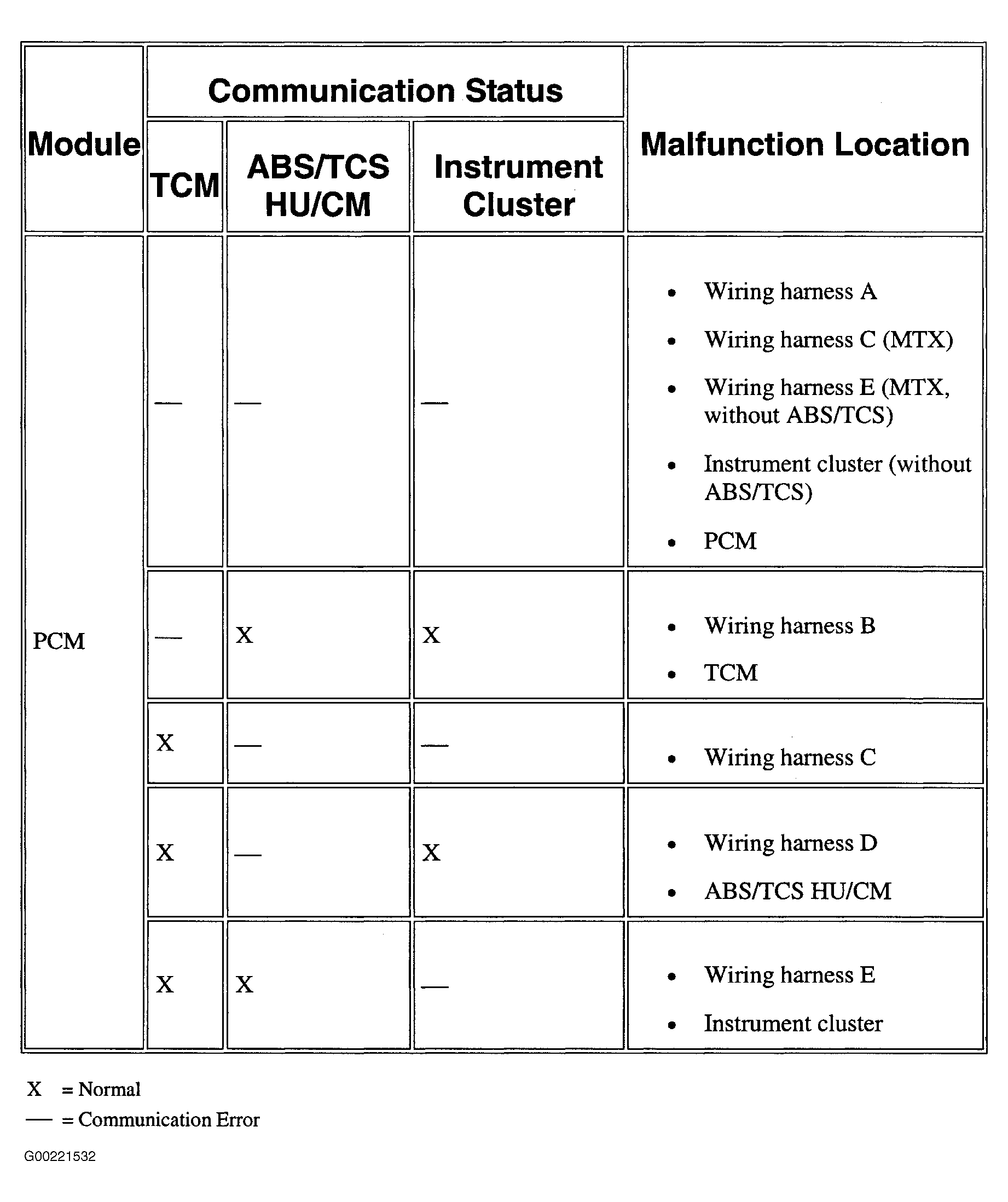

Fig 2: PCM Malfunction Locator Table

Courtesy of MAZDA MOTORS CORP.
