Diagnostic procedure

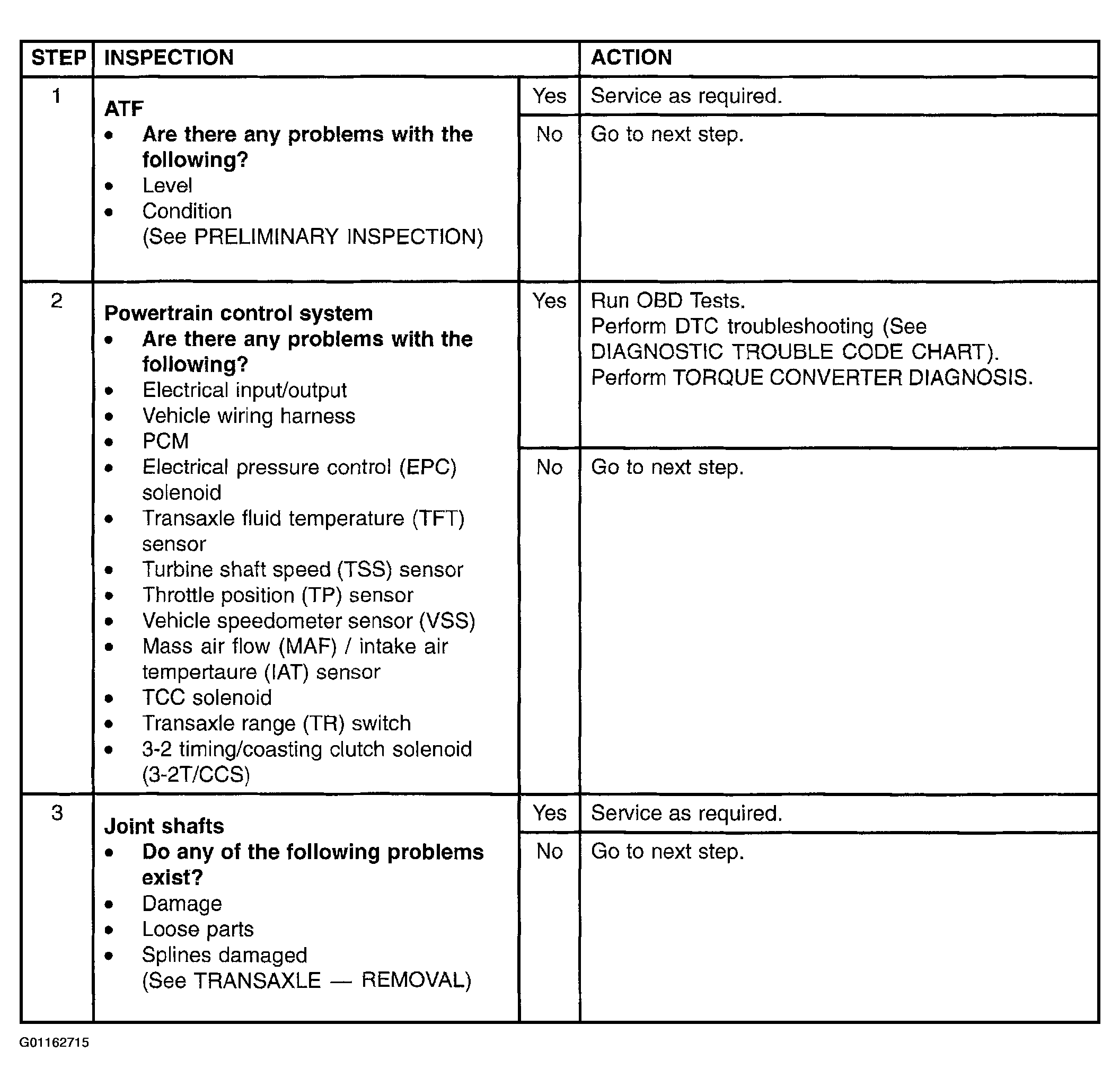

Fig 1: Pinpoint Test 10: Shift Concern: Feel - Harsh (Step 1-3)
G01162715Courtesy of MAZDA MOTORS CORP.

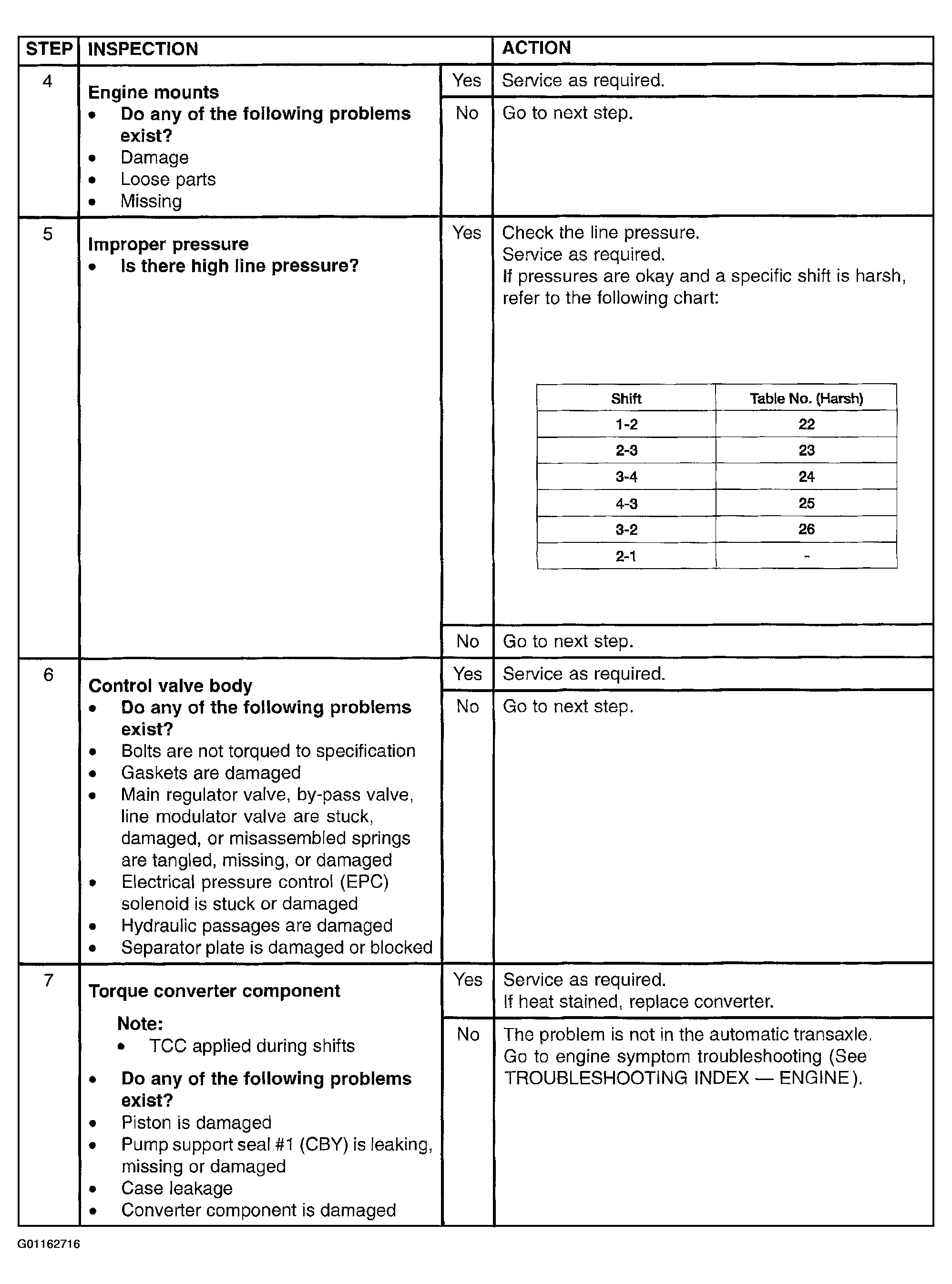

Fig 2: Pinpoint Test 10: Shift Concern: Feel - Harsh (Step 4-7)
G01162716Courtesy of MAZDA MOTORS CORP.
