All Vehicles

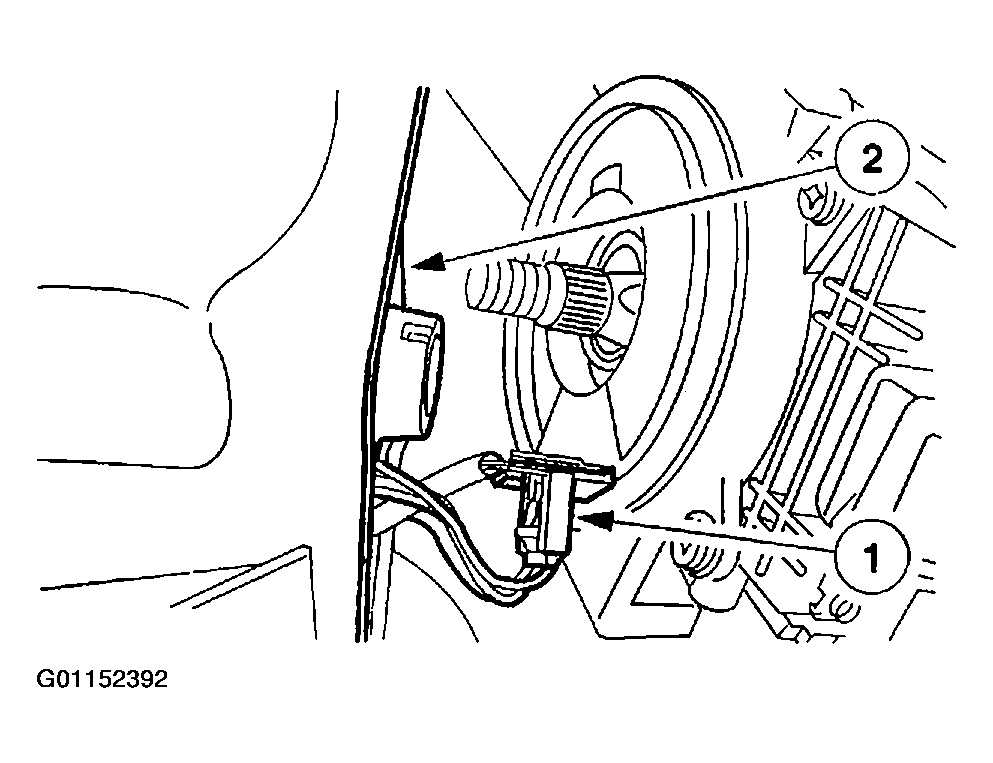

Fig 1: Installing Steering Wheel
G01152392Courtesy of MAZDA MOTORS CORP.
  1. Install the steering wheel.
    1. Connect the electrical connector.
    2. Position the steering wheel onto the steering column shaft.
  2. Tighten the pinion shaft.

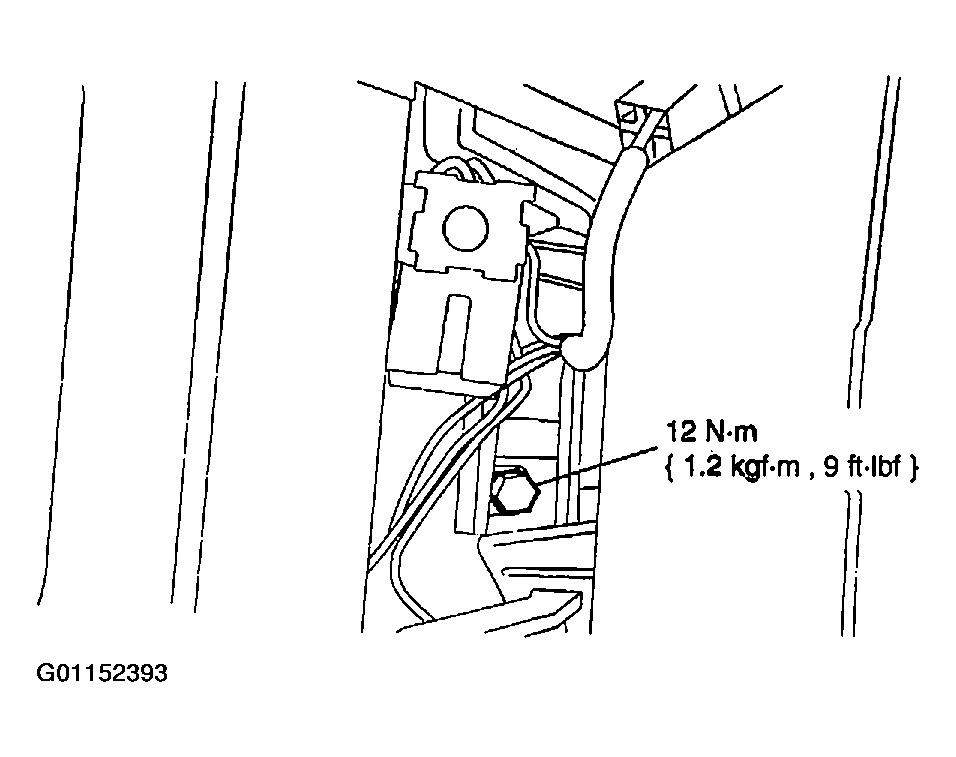

    Fig 2: Tightening Pinion Shaft
    G01152393Courtesy of MAZDA MOTORS CORP.
  3. Connect the special tool to the instrument panel harness side of the driver air bag module electrical connector.
    Fig 3: Connecting Special Tool To Instrument Panel Harness Side Of Driver Air Bag Module Electrical Connector
    G01152394Courtesy of MAZDA MOTORS CORP.
    4. WARNING: The air bag diagnostic tool is for restraint system repair only. Remove from vehicle prior to road use. Failure to follow these instructions could result in personal injury and possible violation of vehicle safety standards.
    Fig 4: Removing Special Tool From Driver Seat Side Air Bag Module Body Harness Electrical Connector
    G01152395Courtesy of MAZDA MOTORS CORP.

  4. Vehicles With Side Air Bags
    Remove the special tool from the driver seat side air bag module body harness electrical connector.
  5. Connect the driver-side air bag module electrical connector.

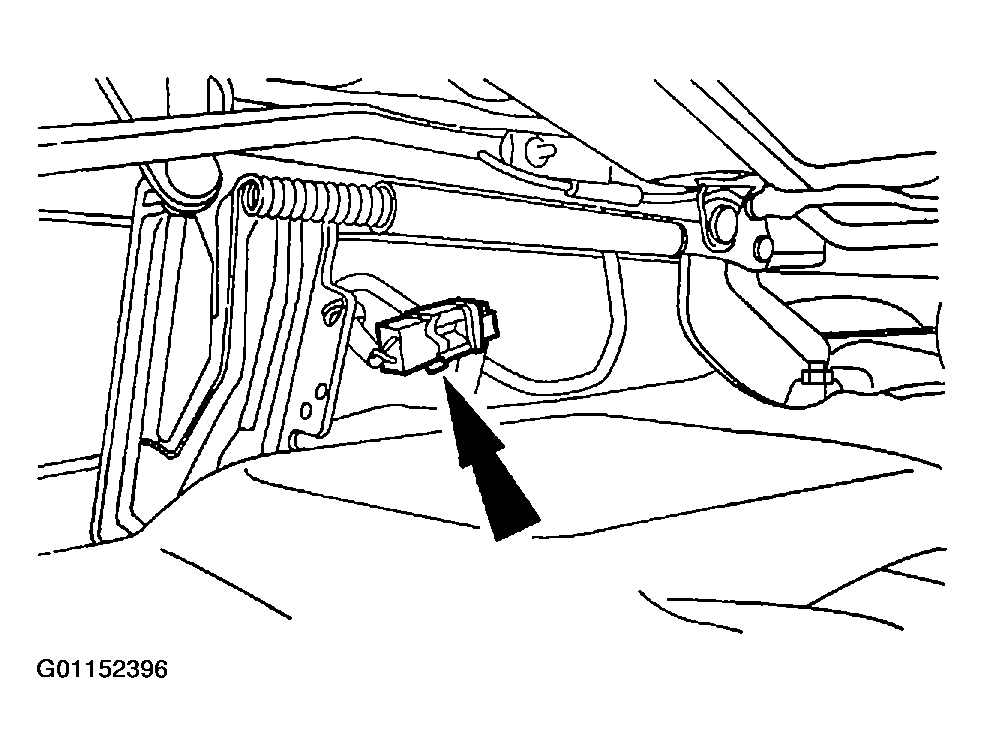

    Fig 5: Connecting Driver-Side Air Bag Module Electrical Connector
    G01152396Courtesy of MAZDA MOTORS CORP.
    6. WARNING: The air bag diagnostic tool is for restraint system repair only. Remove from vehicle prior to road use. Failure to follow these instructions could result in personal injury and possible violation of vehicle safety standards.
    Fig 6: Removing Special Tool From Driver-Side Safety Belt Pretensioner Body Harness Electrical Connector
    G01152397Courtesy of MAZDA MOTORS CORP.

  6. All Vehicles
    Remove the special tool from the driver-side safety belt pretensioner body harness electrical connector.
  7. Connect the driver-side safety belt pretensioner electrical connector.

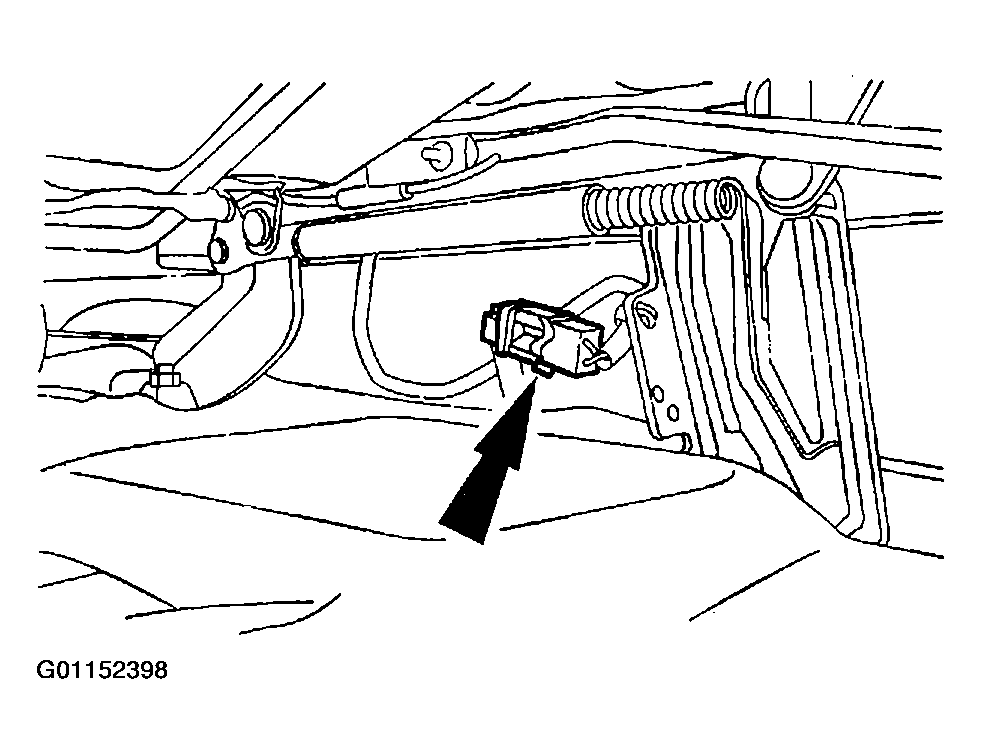

    Fig 7: Connecting Driver-Side Safety Belt Pretensioner Electrical Connector
    G01152398Courtesy of MAZDA MOTORS CORP.
  8. Connect the battery ground cable.
  9. With the remaining special tools still in place, prove out the air bag system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
  10. Disconnect the battery ground cable and wait at least one minute.
    11. WARNING: The air bag diagnostic tool is for restraint system repair only. Remove from vehicle prior to road use. Failure to follow these instructions could result in personal injury and possible violation of vehicle safety standards.
    Fig 8: Removing Special Tool From Passenger Seat Side Air Bag Module Body Harness Electrical Connector
    G01152399Courtesy of MAZDA MOTORS CORP.

  11. Vehicles With Side Air Bags
    Remove the special tool from the passenger seat side air bag module body harness electrical connector.
  12. Connect the passenger-side air bag module electrical connector.

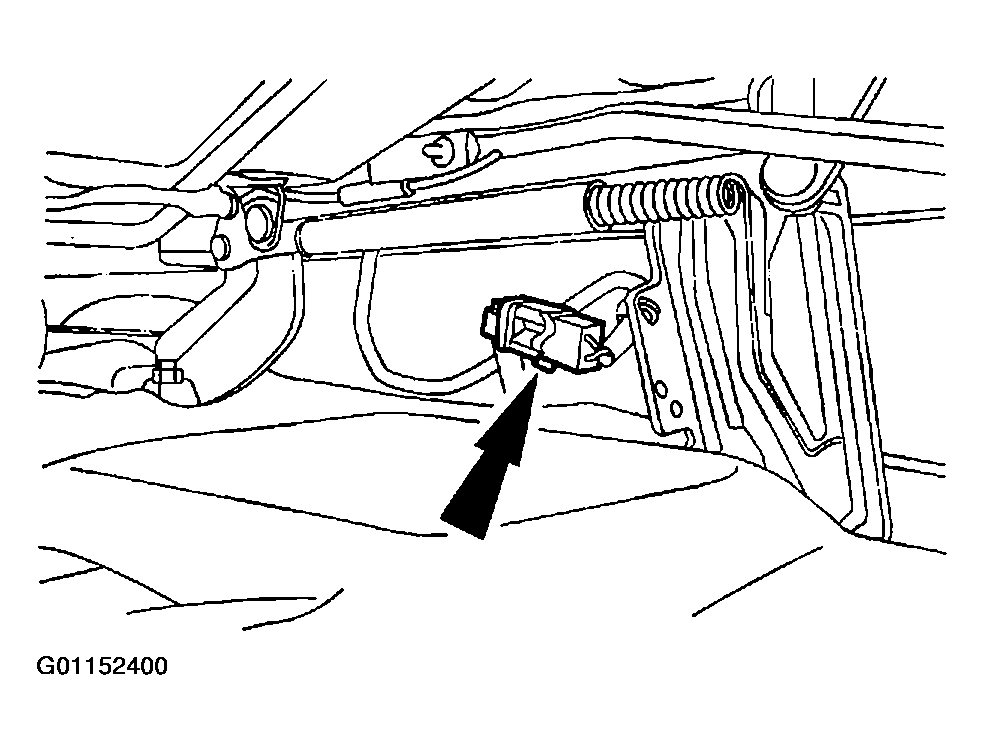

    Fig 9: Connecting Passenger-Side Air Bag Module Electrical Connector
    G01152400Courtesy of MAZDA MOTORS CORP.
    13. WARNING: The air bag diagnostic tool is for restraint system repair only. Remove from vehicle prior to road use. Failure to follow these instructions could result in personal injury and possible violation of vehicle safety standards.
    Fig 10: Removing Special Tool From Passenger-Side Safety Belt Pretensioner Body Harness Electrical Connector
    G01152401Courtesy of MAZDA MOTORS CORP.

  13. All Vehicles
    Remove the special tool from the passenger-side safety belt pretensioner body harness electrical connector.
  14. Connect the passenger-side safety belt pretensioner electrical connector.
    15. WARNING: The air bag diagnostic tool is for restraint system repair only. Remove from vehicle prior to road use. Failure to follow these instructions could result in personal injury and possible violation of vehicle safety standards.
    Fig 11: Removing Special Tool From Instrument Panel Harness Side Of Passenger Air Bag Module Electrical Connector
    G01152402Courtesy of MAZDA MOTORS CORP.
  15. Remove the special tool from the instrument panel harness side of the passenger air bag module electrical connector.
  16. Connect the passenger air bag module electrical connector.
    Fig 12: Connecting Passenger Air Bag Module Electrical Connector
    G01152403Courtesy of MAZDA MOTORS CORP.
  17. Raise the glove compartment.
    • Depress the locking tabs.
    18. WARNING: The air bag diagnostic tool is for restraint system repair only. Remove from vehicle prior to road use. Failure to follow these instructions could result in personal injury and possible violation of vehicle safety standards.
    Fig 13: Removing Special Tool From Instrument Panel Harness Side Of Driver Air Bag Module Electrical Connector
    G01152404Courtesy of MAZDA MOTORS CORP.
  18. Remove the special tool from the instrument panel harness side of the driver air bag module electrical connector.
  19. Connect the driver air bag module electrical connector.

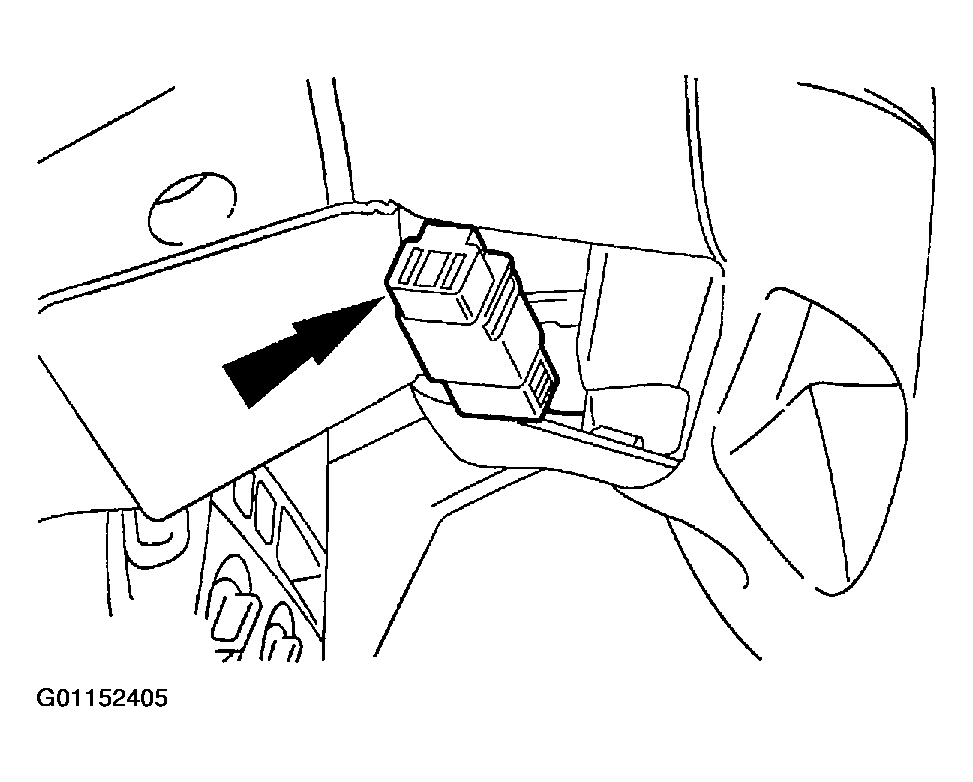

    Fig 14: Connecting Driver Air Bag Module Electrical Connector
    G01152405Courtesy of MAZDA MOTORS CORP.
  20. Close the steering wheel air bag connector access cover.

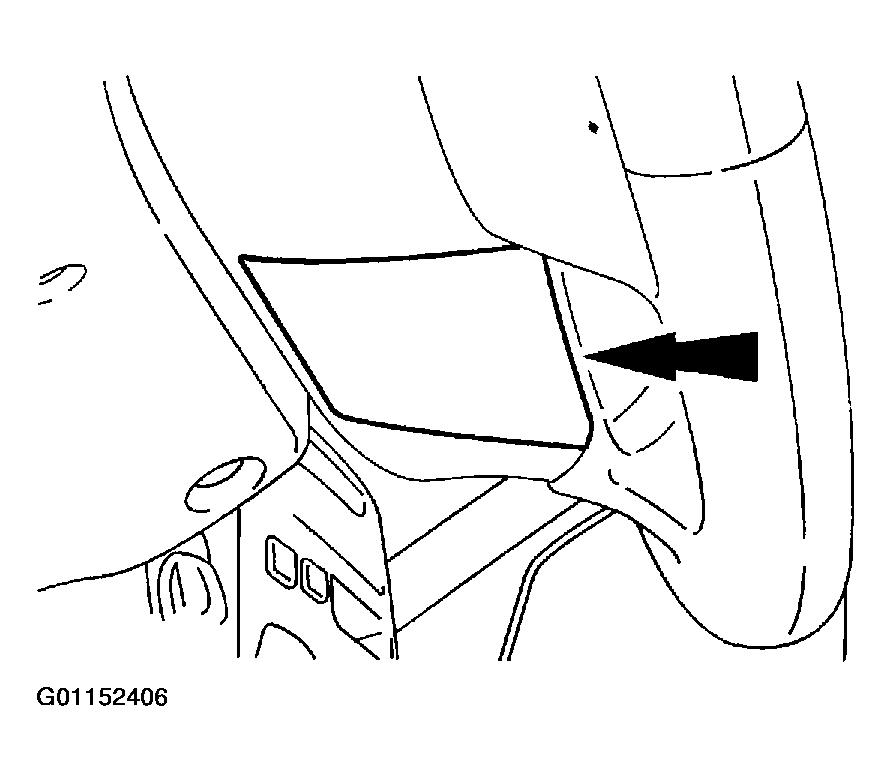

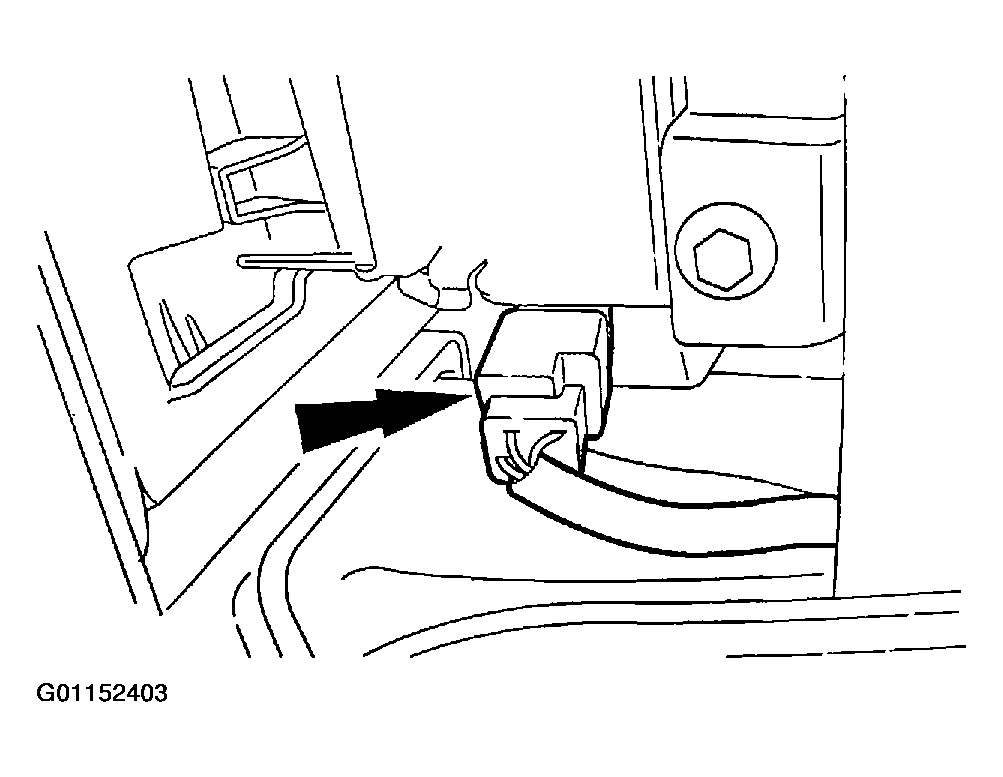

    Fig 15: Closing Steering Wheel Air Bag Connector Access Cover
    G01152406Courtesy of MAZDA MOTORS CORP.
  21. Connect the battery ground cable.
  22. Prove out the air bag system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
  23. Check the restraint system for correct operation.
