Stall Speed Chart

Fig 1: Stall Speed Chart

Courtesy of MAZDA MOTORS CORP.

After testing DRIVE (D) and REVERSE (R), move transaxle range selector lever to NEUTRAL (N) and run engine for about 15 seconds to allow torque converter to cool before testing next range.

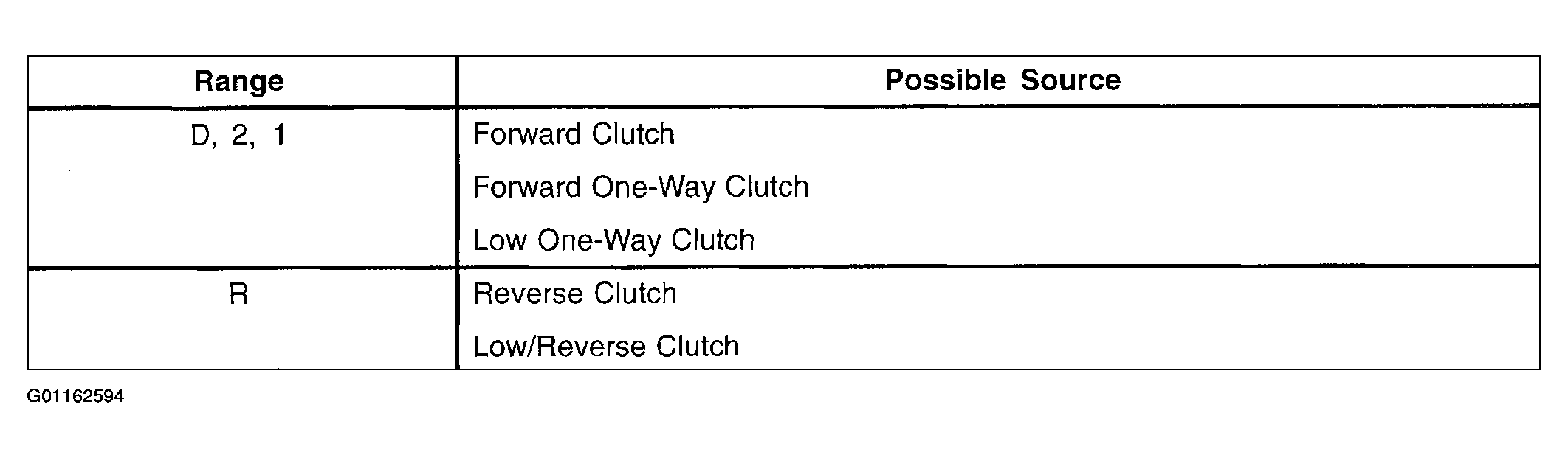

If the stall speeds were too high, refer to Figure . If the stall speeds were too low, first check engine tune-up. If engine is OK, remove torque converter and check torque converter one-way clutch for slippage.
