Control Valve Body: Installation

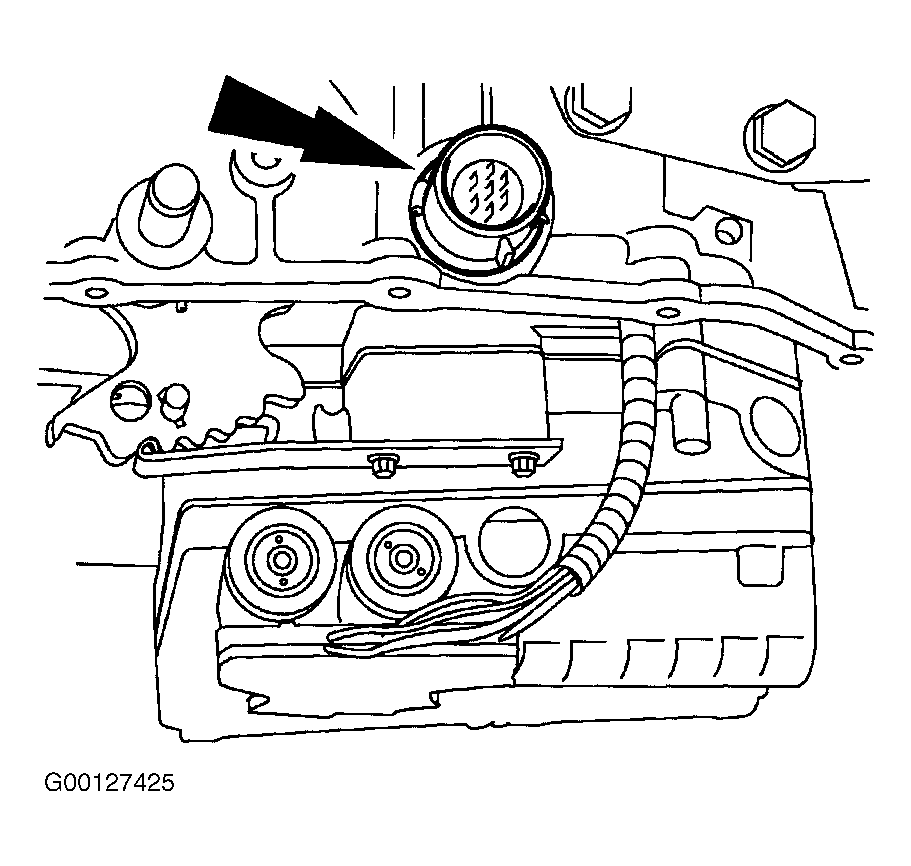

- Push the solenoid valve body harness connector up through the transaxle case. Install NEW O-ring on valve body harness connector receptacle. Install receptacle in transaxle case. See Figure .
- Insert "Z" link into end of manual valve. See Figure . Place valve body in position on transaxle case and install 12 valve body bolts. Tighten bolts in sequence to specification. See Figure . See TORQUE SPECIFICATIONS . Loosen nut on ball stud of manual valve detent lever actuating rod assembly. See Fig 2 .
- Remove manual detent lever bolt and lever assembly. Using Shifter Shaft Alignment Tool (T94P-77000-H), move manual control lever shaft to Drive position. See Fig 1 . Install pin to hold the shifter shaft alignment tool in position. Move manual valve detent lever assembly to Drive position.
- Snug nut on ball stud. Remove shifter pin. Rotate shifter shaft alignment tool until socket can be installed on nut. Tighten nut on ball stud to specification. See TORQUE SPECIFICATIONS . Rotate lever back to Drive position and recheck adjustment. Remove pin and alignment tool.

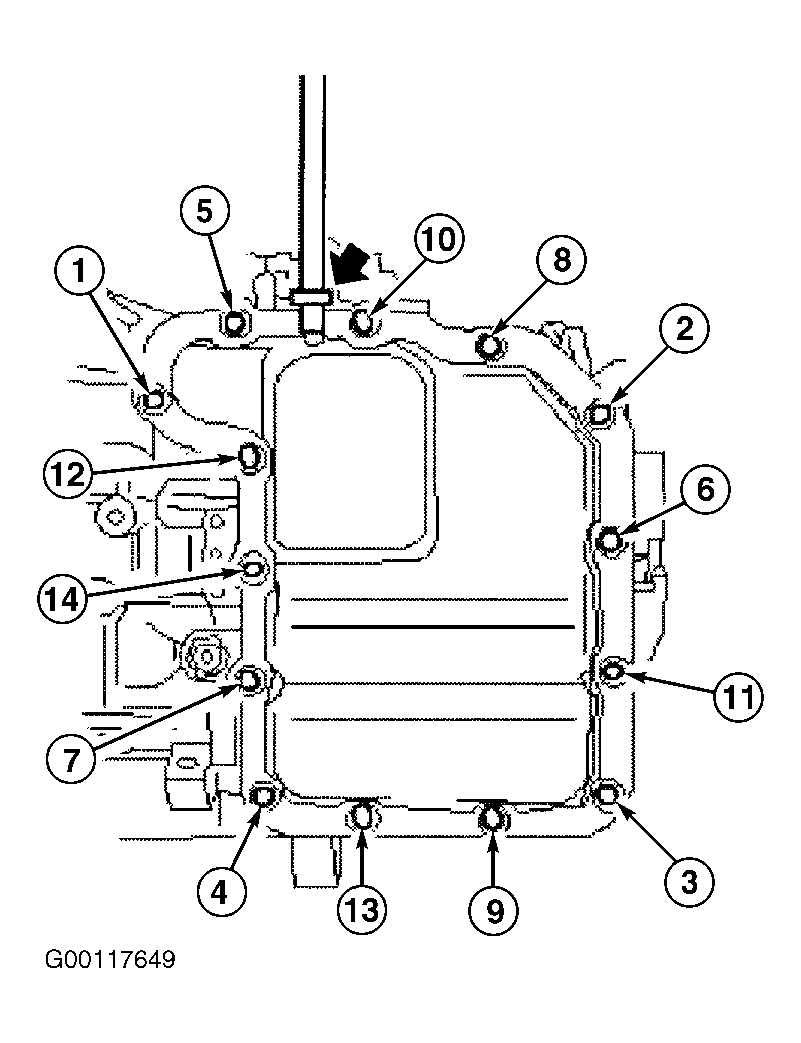

- Install manual detent lever assembly. Tighten bolt to specification. Install main control cover (side cover) with NEW gasket. Tighten bolts in sequence to specification. See Figure . See TORQUE SPECIFICATIONS .
- To complete installation, reverse removal procedures. Install transaxle drain plug and tighten to specification. See Figure . See TORQUE SPECIFICATIONS . Install splash shield. Lower the vehicle.

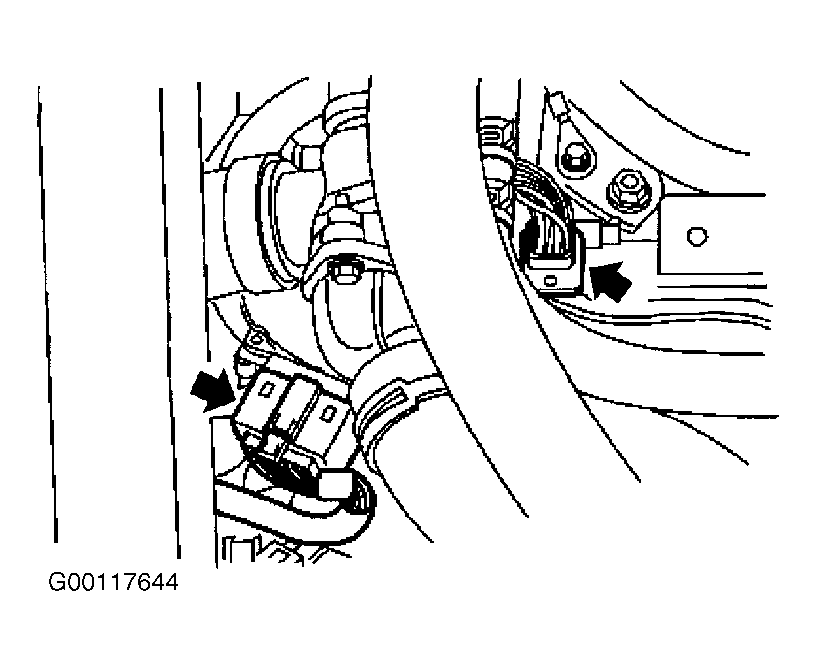

- Connect the transaxle harness connector, and the TR sensor connector. See Figure . Install the intake tube and air cleaner cover. Connect the breather tube and MAF sensor.
- Install battery tray, battery and connect the battery cables. Fill the transaxle with appropriate fluid to proper level and check for correct transaxle operation. See LUBRICATION .
NOTE:
Before installing the vent tube hose, clean out any obstructions in the hose using low air pressure. Install the vent tube hose, and clamp.
