Lower Arm: Installation

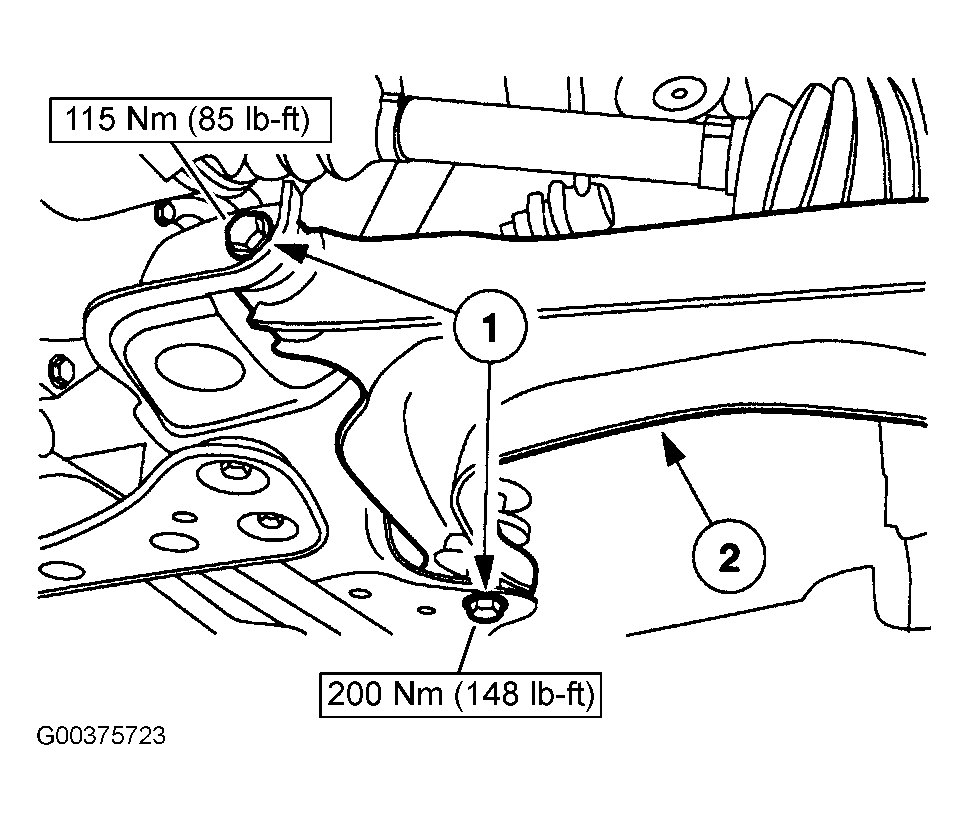

  1. Install the lower arm bolts loosely. See Figure .
  2. Install the pinch bolt into the wheel knuckle.
    Fig 1: Installing Pinch Bolt
    G00375725Courtesy of MAZDA MOTORS CORP.
  3. Remove the subframe support. See Figure .
  4. Install the wheel and tire.
  5. Bounce the vehicle.
  6. Tighten the lower arm bolts. See Figure .
