Removal & Installation

Position the steering gear boot cover aside.

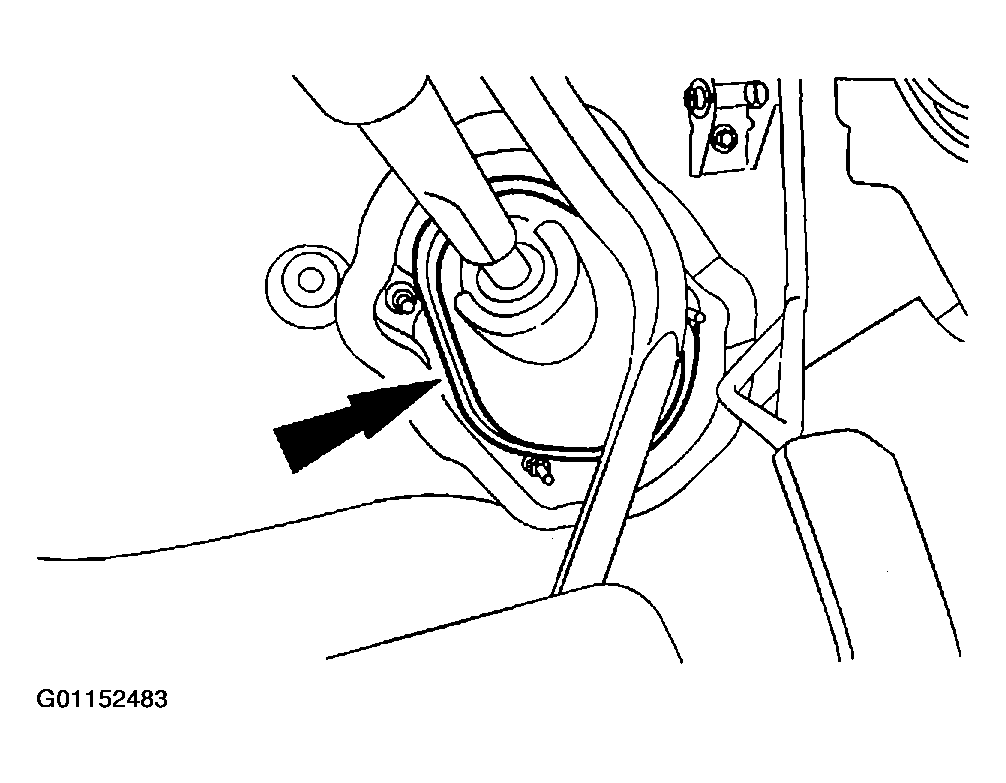

Fig 1: Positioning Steering Gear Boot Cover Aside
Courtesy of MAZDA MOTORS CORP.

NOTE: The nut cannot be reused. Install a new nut.

Disconnect the steering column shaft from the flexible coupling.
1. Remove and discard the nut.
2. Disconnect the steering column shaft from the flexible coupling.

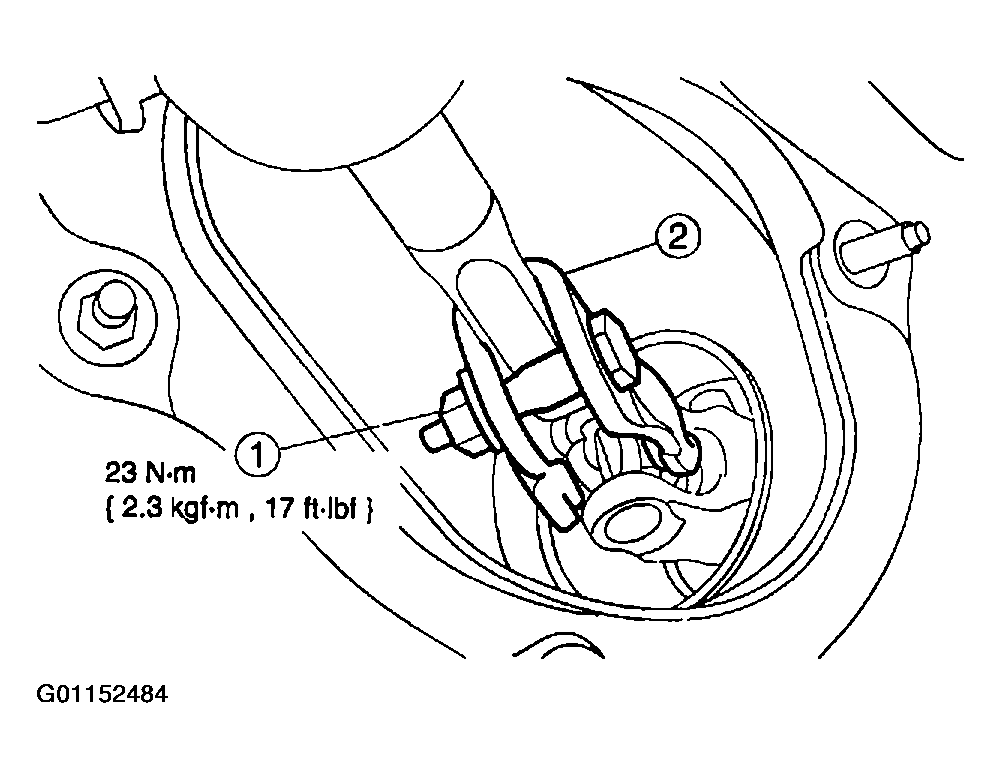

  Fig 2: Disconnecting Steering Column Shaft
  Courtesy of MAZDA MOTORS CORP.
Remove the steering gear boot.
1. Remove the nuts.
2. Remove the steering gear boot.

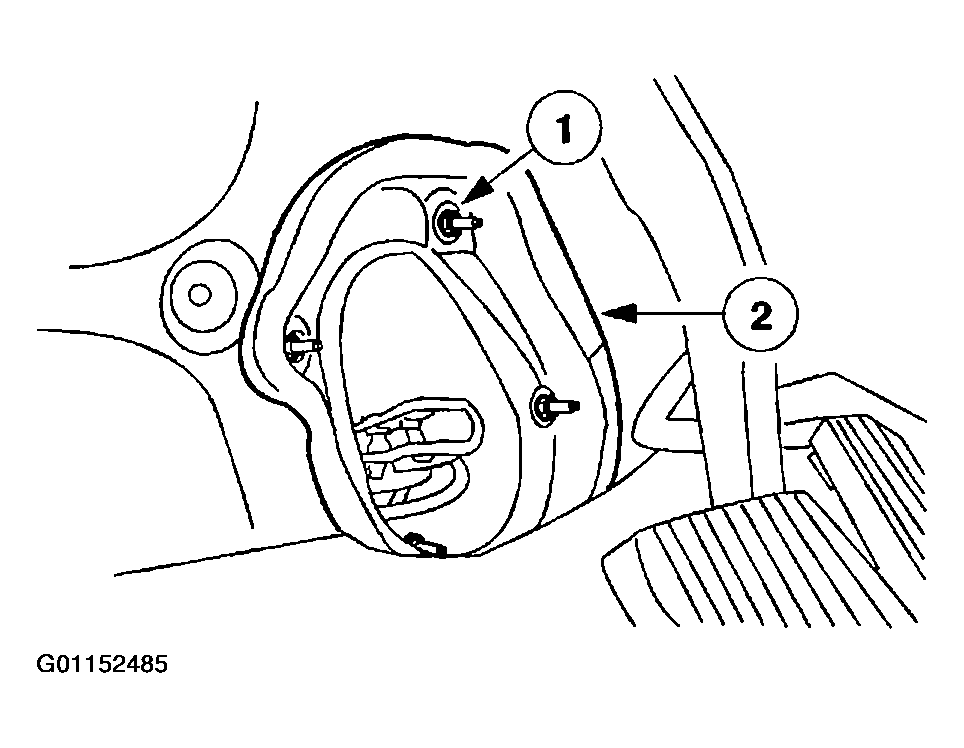

Fig 3: Removing Steering Gear Boot
Courtesy of MAZDA MOTORS CORP.
To install, reverse the removal procedure.
