Removal & Installation

  1. Position the boot aside.

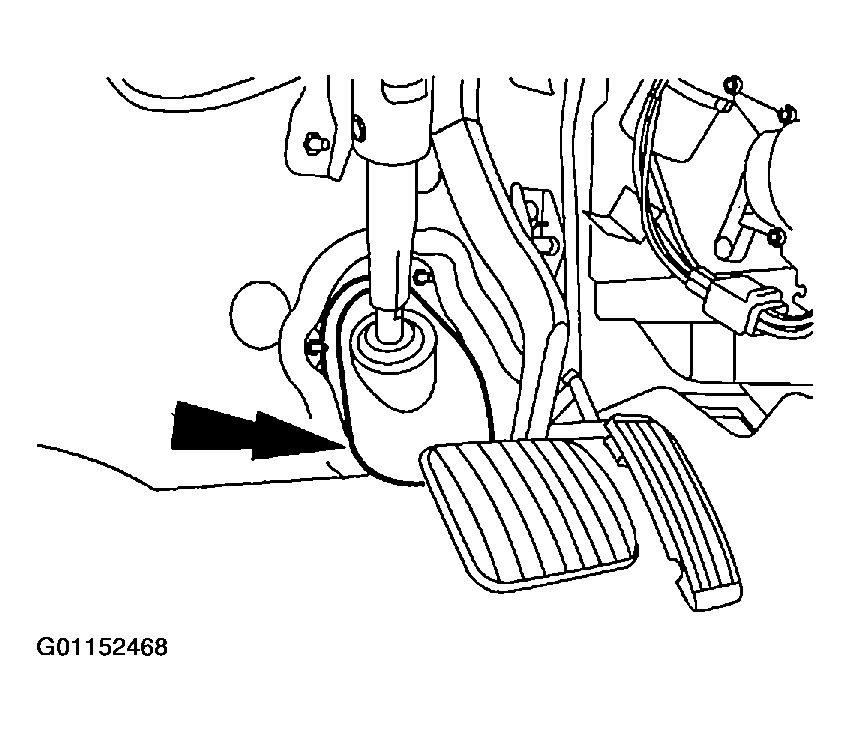

    Fig 1: Positioning Steering Gear Boot Cover Aside
    G01152468Courtesy of MAZDA MOTORS CORP.
  2. Loosen the pinch bolt/nut and disconnect the steering column shaft from the flexible coupling.

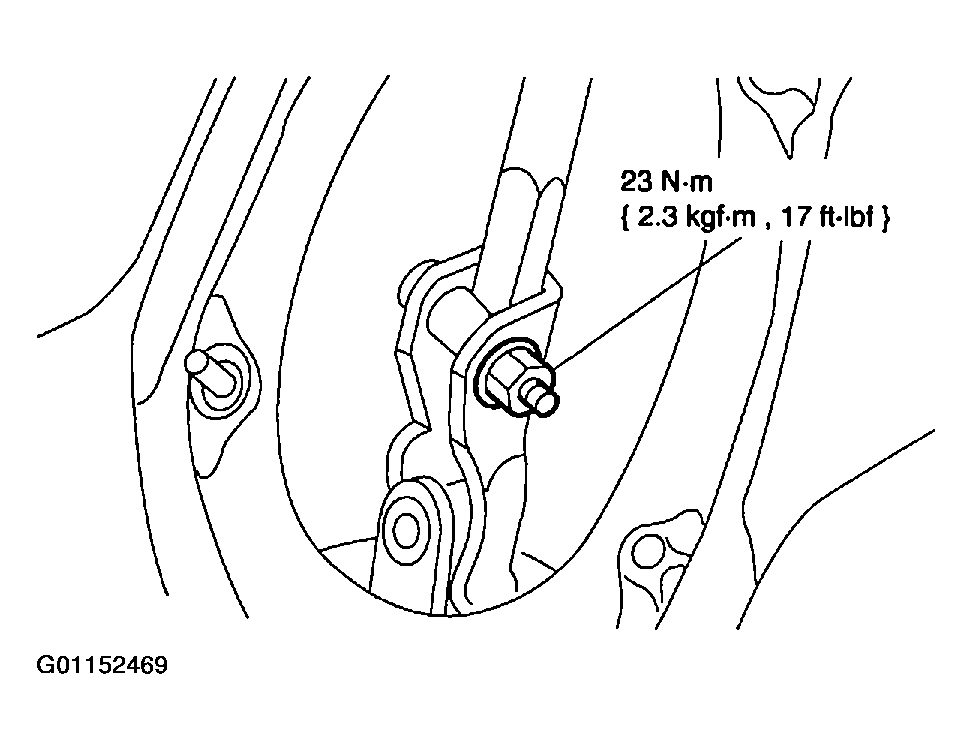

    Fig 2: Removing Pinch Bolt/Nut
    G01152469Courtesy of MAZDA MOTORS CORP.
  3. Remove the steering gear coupling.
    1. Position aside the rubber boot.
    2. Remove the pinch bolt.

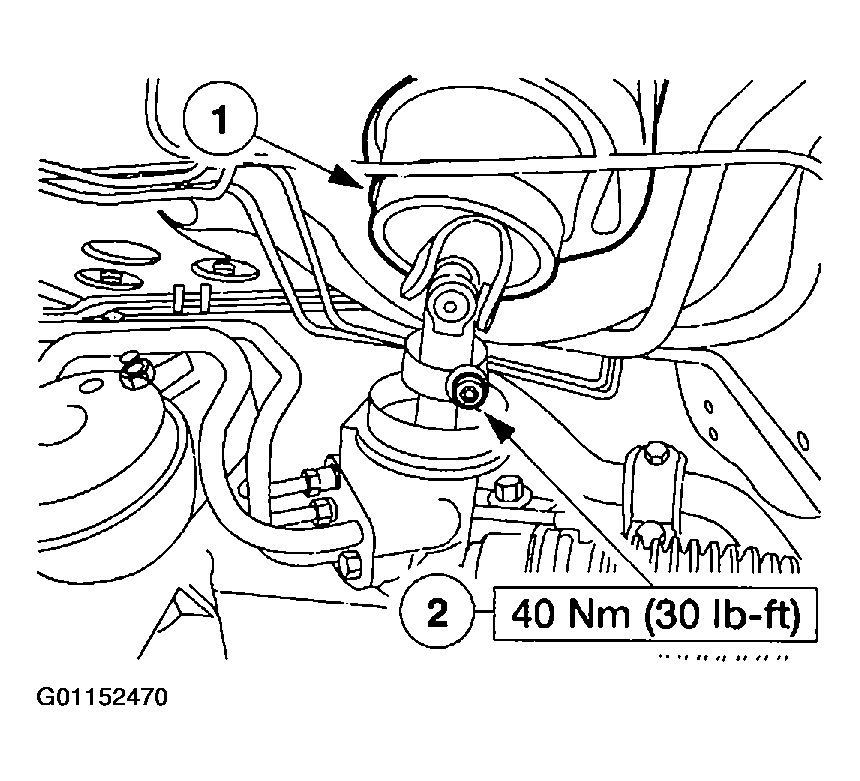

    Fig 3: Removing Steering Gear Coupling
    G01152470Courtesy of MAZDA MOTORS CORP.
  4. To install, reverse the removal procedure.
