Troubleshooting Index - Instrument Cluster
>>
Notes
Troubleshooting Index - Instrument Cluster: Notes

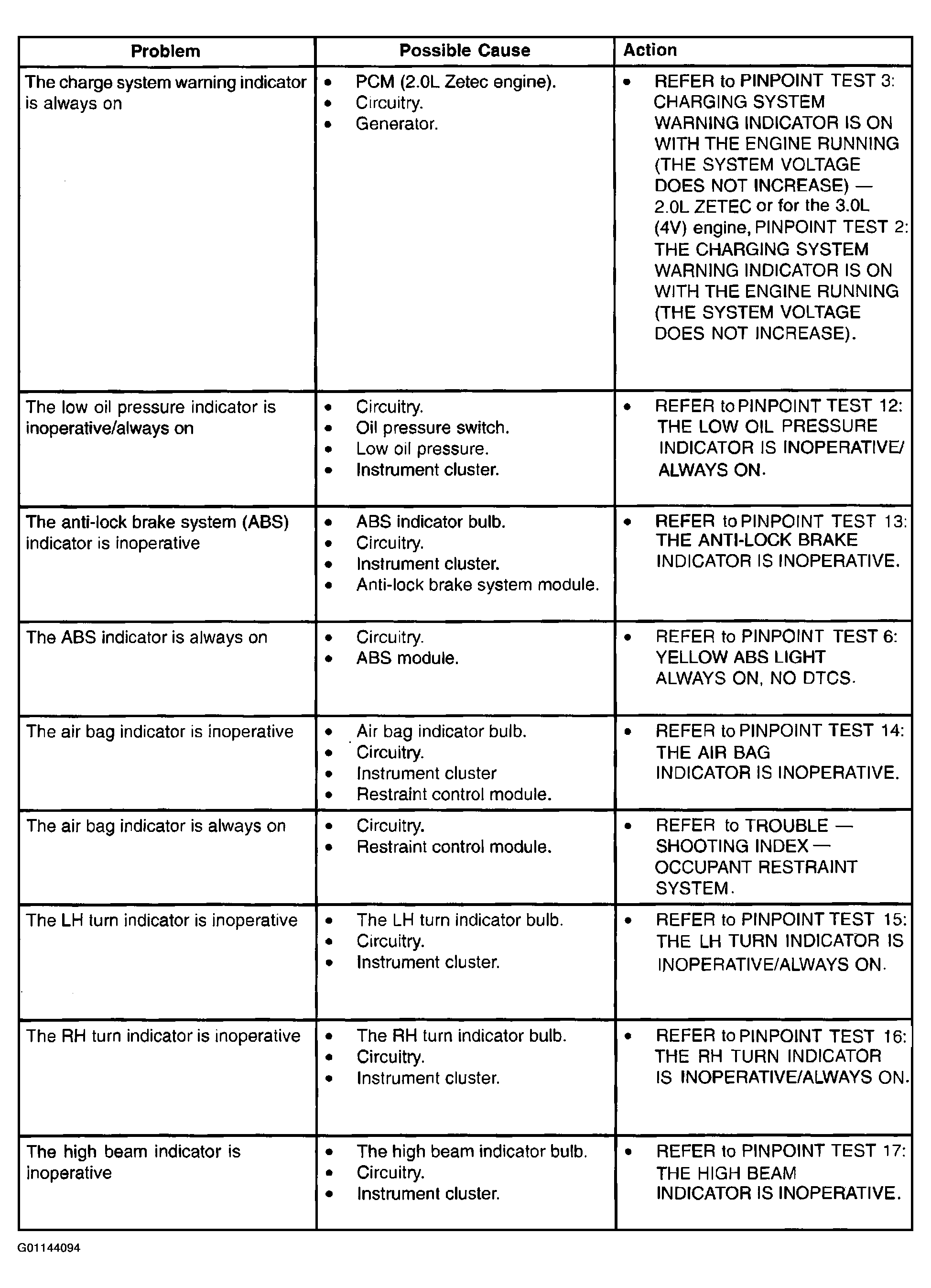

Fig 1: Troubleshooting Index - Instrument Cluster (1 Of 5)
Courtesy of MAZDA MOTORS CORP.

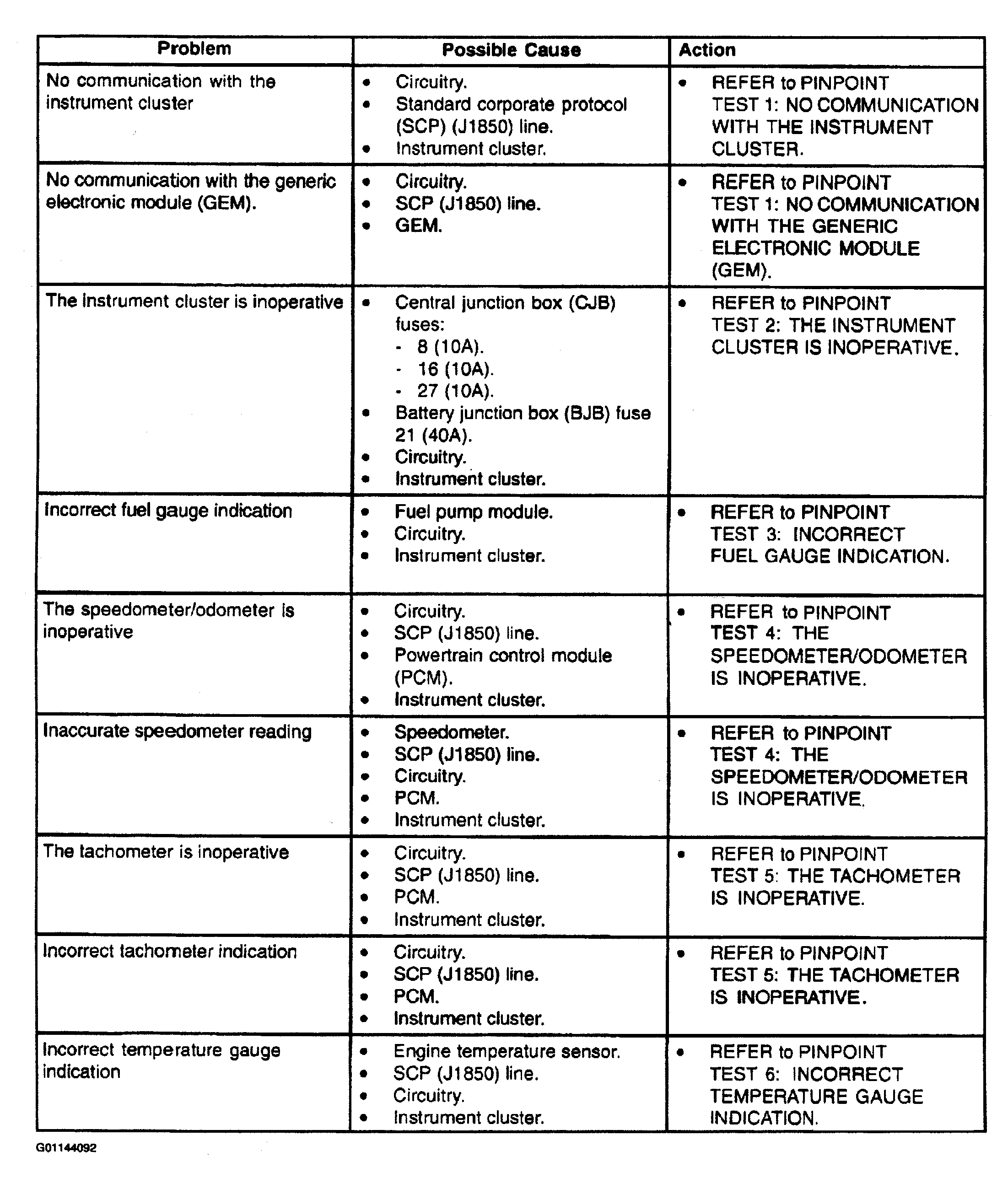

Fig 2: Troubleshooting Index - Instrument Cluster (2 Of 5)
Courtesy of MAZDA MOTORS CORP.

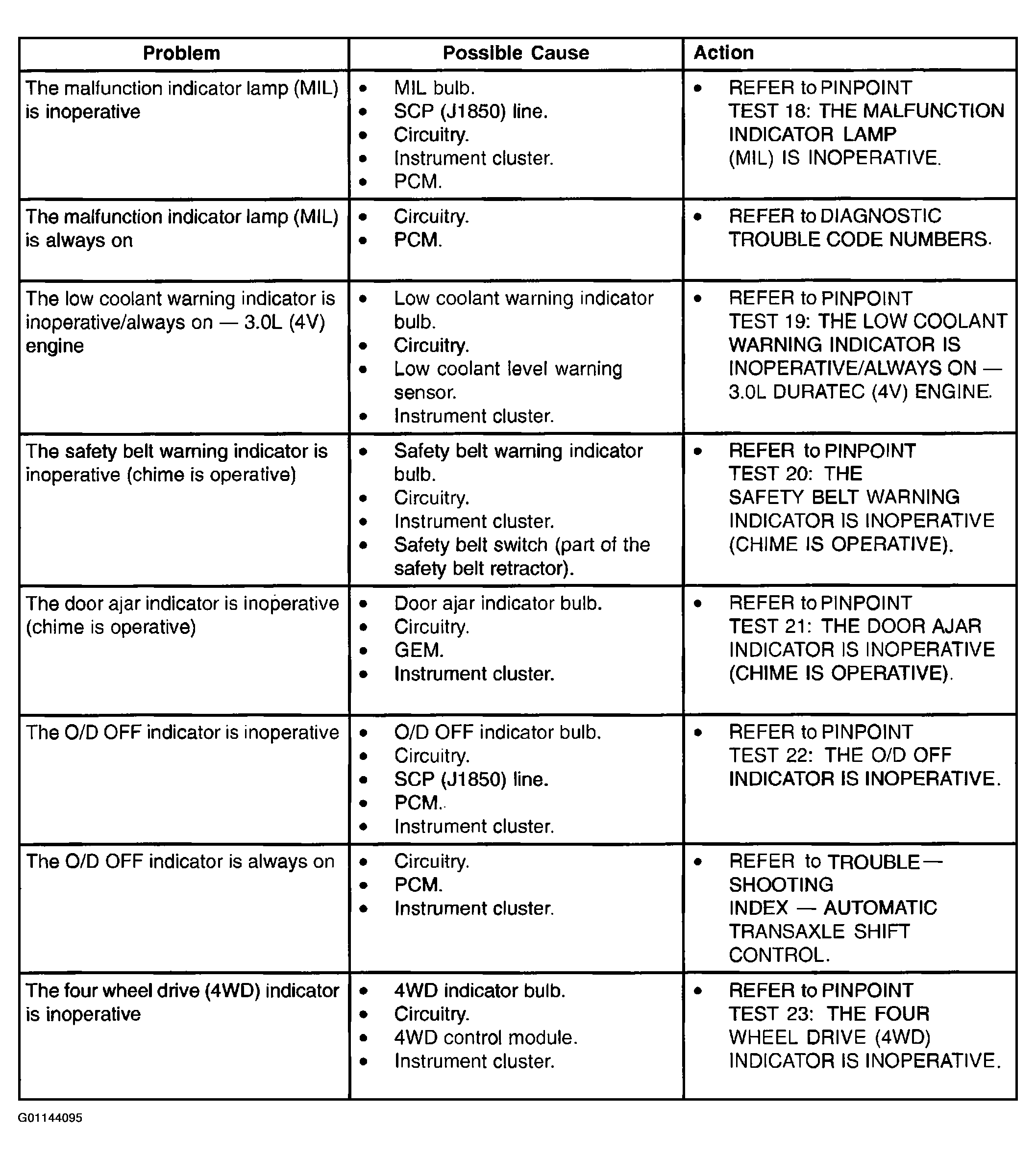

Fig 3: Troubleshooting Index - Instrument Cluster (3 Of 5)
Courtesy of MAZDA MOTORS CORP.

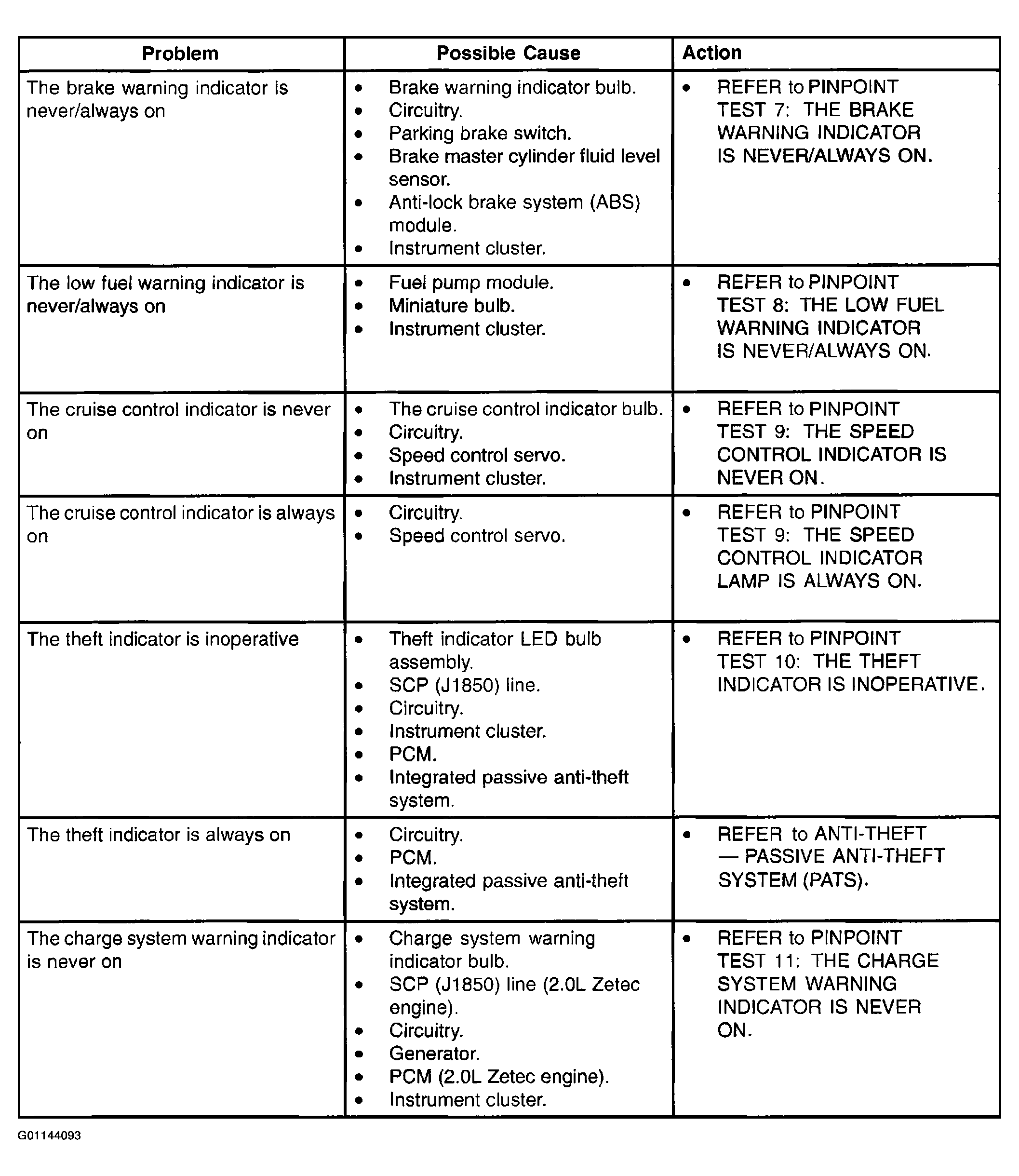

Fig 4: Troubleshooting Index - Instrument Cluster (4 Of 5)
Courtesy of MAZDA MOTORS CORP.

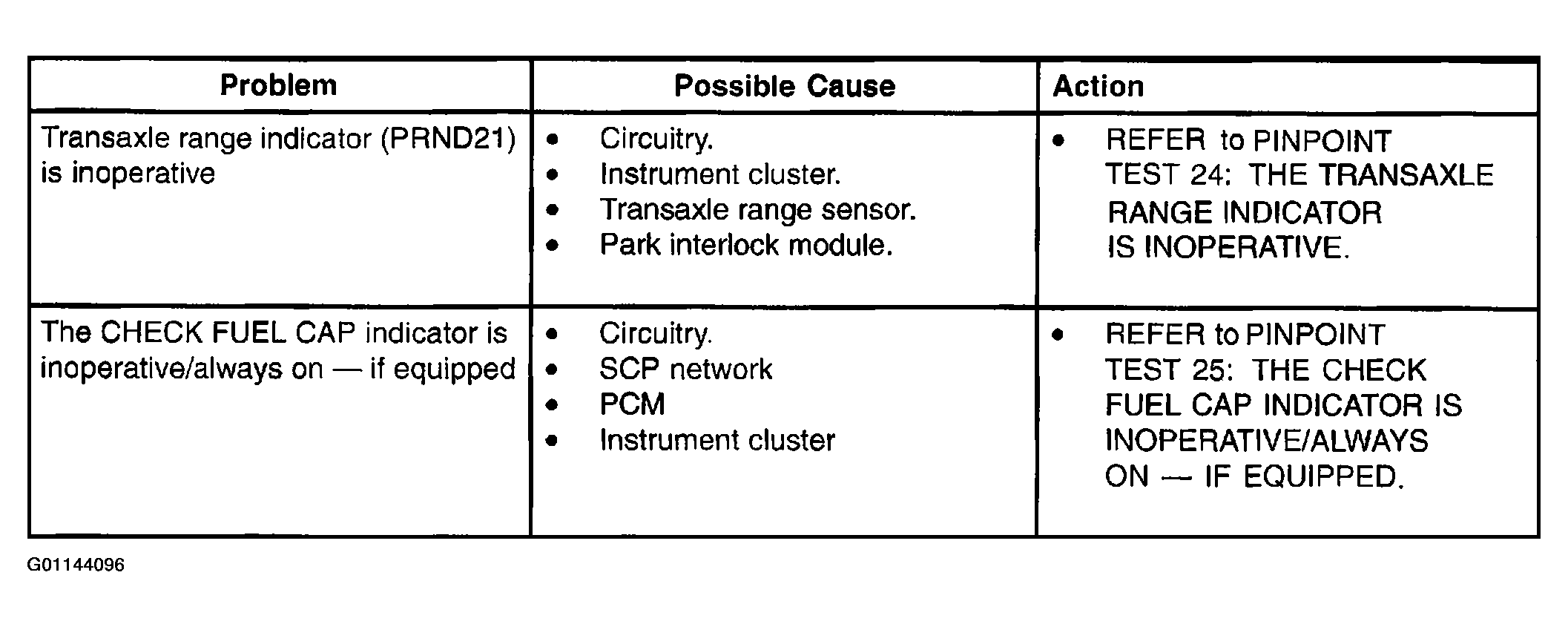

Fig 5: Troubleshooting Index - Instrument Cluster (5 Of 5)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
