Power Take Off Unit Draining And Filling

CAUTION:
  • New Power Take Off (PTO) unit is lubricant must be installed any time the Power Take Off (PTO) unit has been submerged in water.
NOTE:
  • The Power Take Off (PTO) unit is lubricated for life and is not to be checked unless a leak is suspected or a repair is necessary.
  1. Remove the drain plug and drain the Power Take Off (PTO) unit.
    Fig 1: Locating Power Take Off Unit Drain Plug
    G01150700Courtesy of MAZDA MOTORS CORP.
  2. Apply sealant to the drain plug threads and install the plug.
    CAUTION:
    • Power Take Off (PTO) unit failure can result if the correct fill procedures are not followed.
    NOTE:
    • The fluid level must be even with the bottom of the filler hole.
  3. Remove the fill plug and fill the Power Take Off (PTO) unit with SAE 75W-140 synthetic gear lubricant.

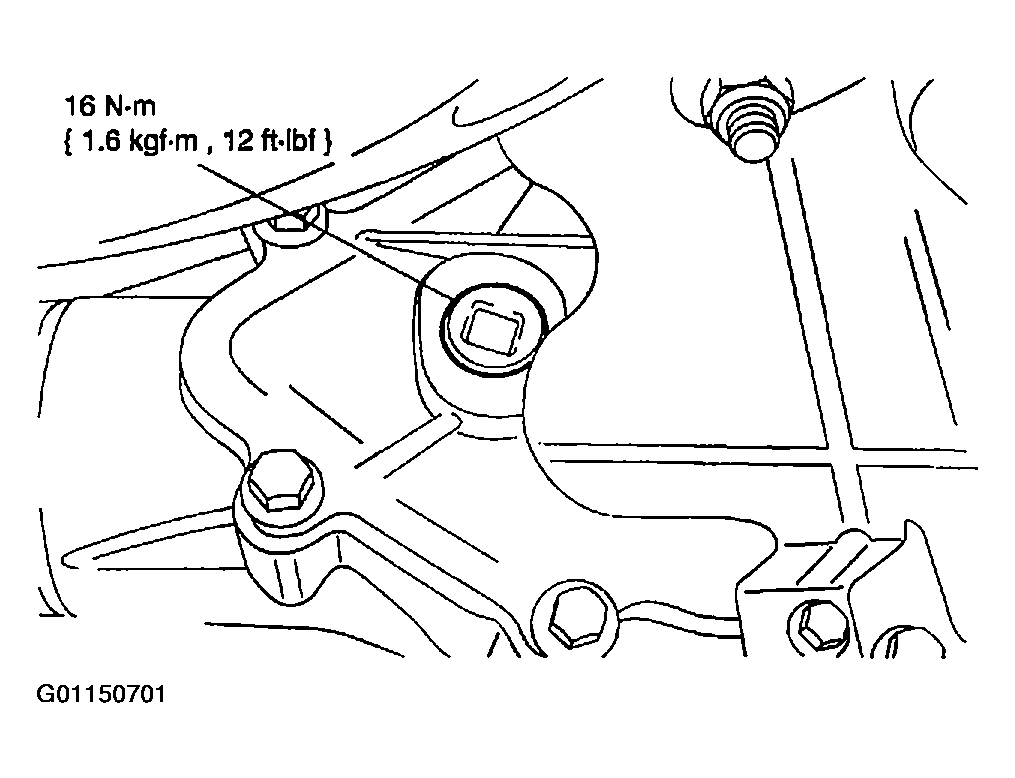

    Fig 2: Locating Power Take Off Unit Fill Plug
    G01150701Courtesy of MAZDA MOTORS CORP.
  4. Apply sealant to the fill plug and install the plug.
