Power Take Off Unit - 2.0L ZETEC: Installation

Install the Power Take Off (PTO) unit.

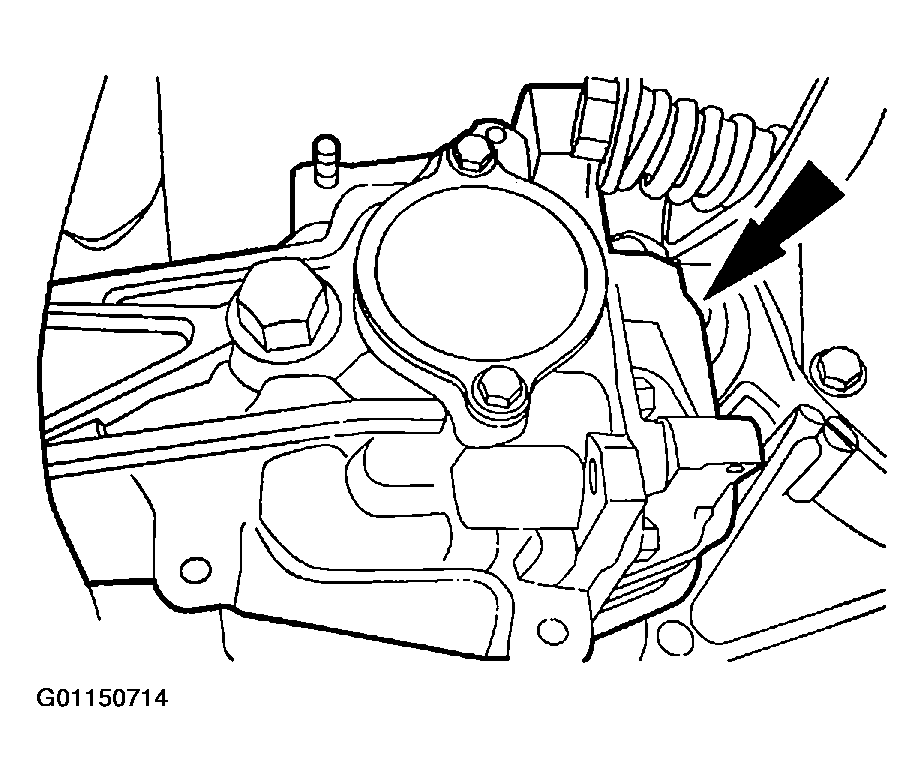

Fig 1: Installing Power Take Off Unit
Courtesy of MAZDA MOTORS CORP.
Install the two bolts and the two nuts.

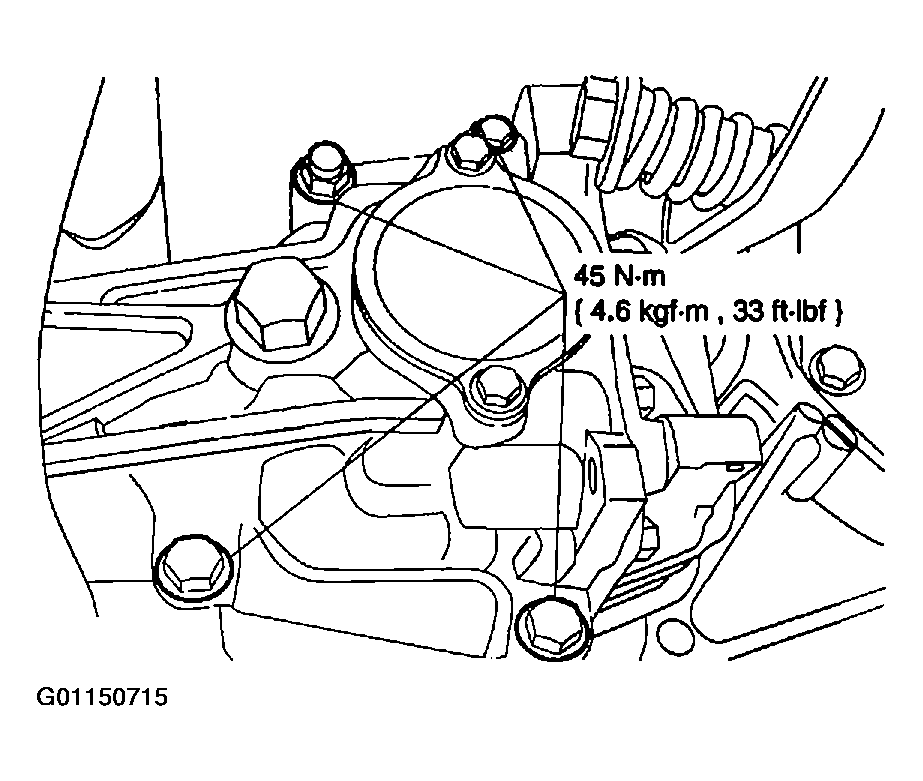

Fig 2: Installing Bolts & Nuts
Courtesy of MAZDA MOTORS CORP.
Install the crossmember brace and the four bolts.
Install the driveshaft. Refer to the following:
- for 2001 models, see DRIVE AXLE SHAFTS .
- for 2002 models, see REMOVAL & INSTALLATION .
