Clutch Unit Removal/Installation: Notes

  1. Disconnect the negative battery cable.
  2. Remove in the order indicated in the table.
  3. Install in the reverse order of removal.

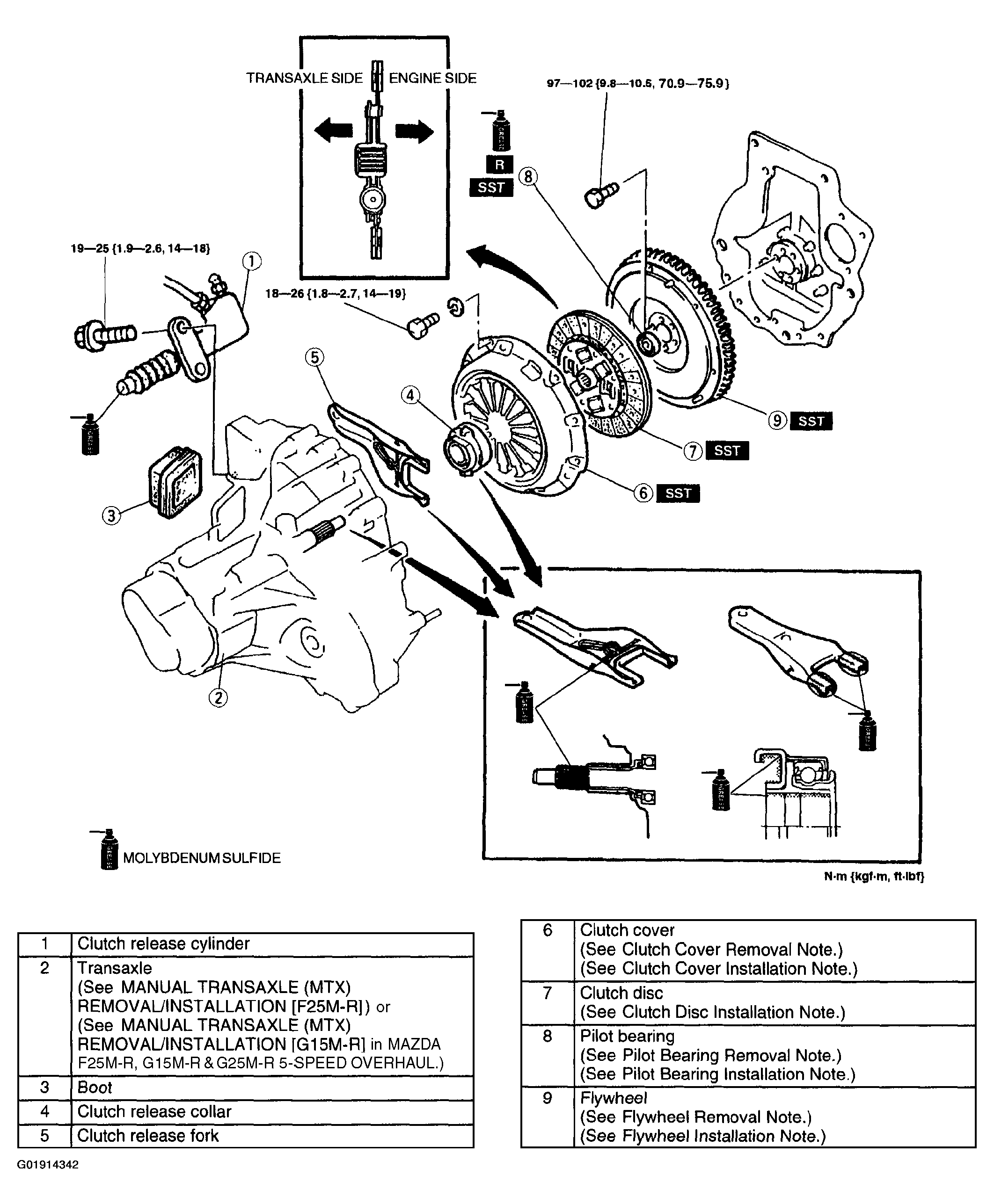

    Fig 1: Exploded View Of Clutch
    G01914342Courtesy of MAZDA MOTORS CORP.
