Transverse Member: Removal/Installation

  1. Remove the transverse member.

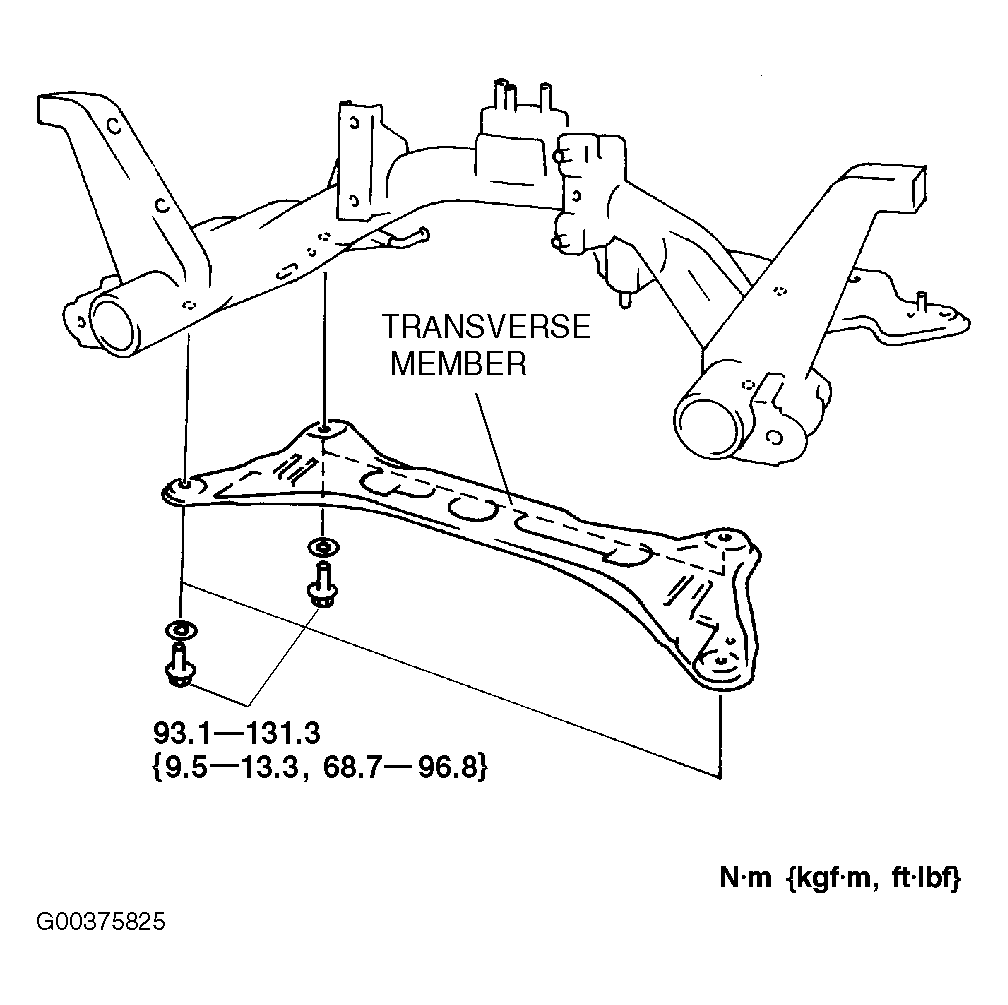

    Fig 1: Removing Transverse Member
    G00375825Courtesy of MAZDA MOTORS CORP.
  2. Install the transverse member.
