Boot Panel Removal Note

  1. Pull the boot panel upward, then disengage clips A and B from the console.

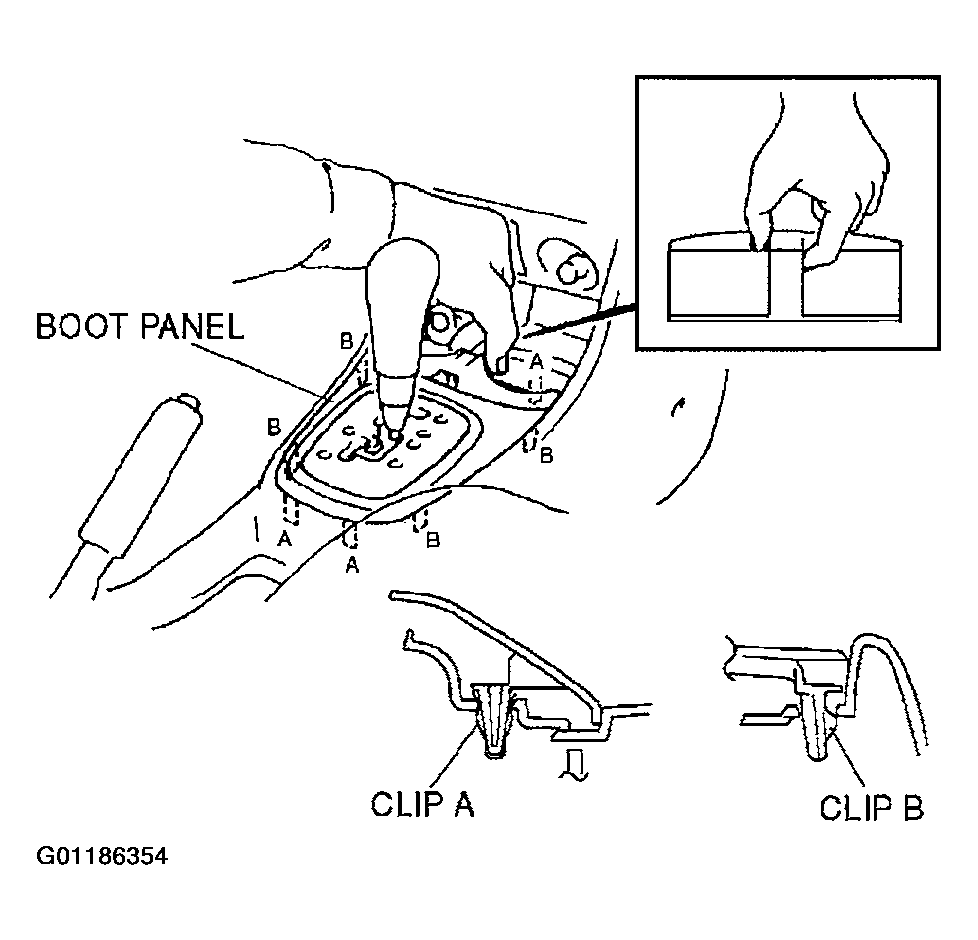

    Fig 1: Locating Console Cover Clips A & B
    G01186354Courtesy of MAZDA MOTORS CORP.
