Door Lock Control Module Removal/Installation

NOTE: Because the lock section of the module is damaged easily, do not remove the module from the bracket unless replacement is necessary. Always perform an inspection of the door lock control module before removal.
  1. Disconnect the negative battery cable.
  2. Remove the lower panel.
  3. Remove the bracket.

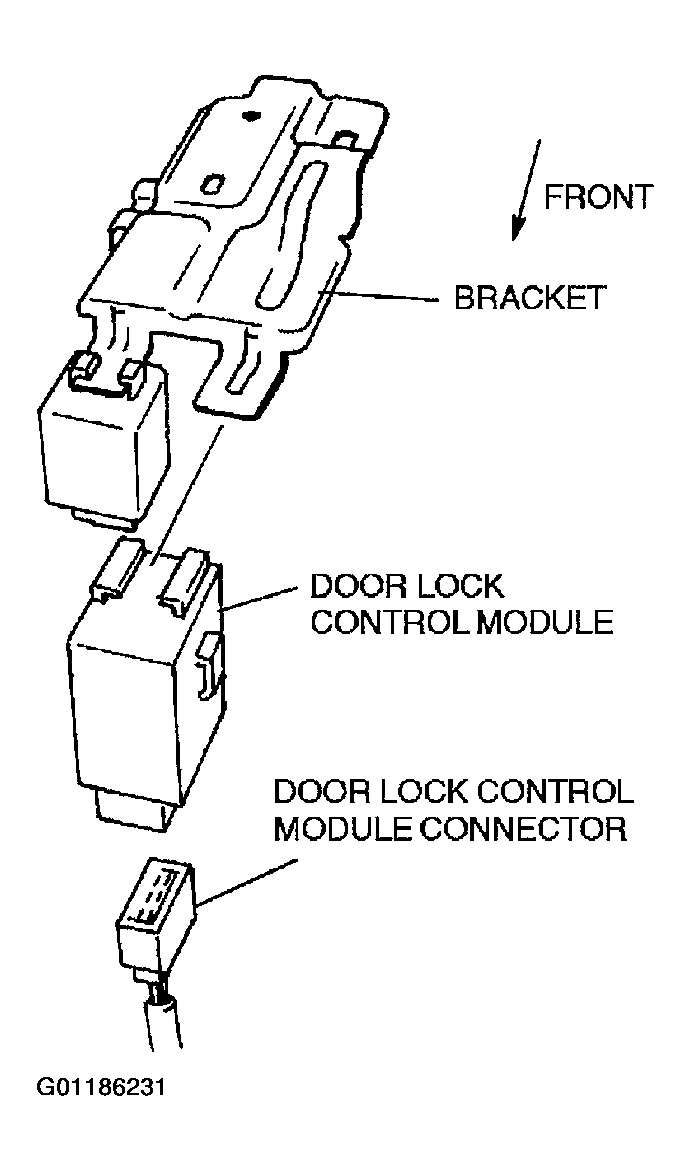

    Fig 1: Identifying Door Lock Control Module & Bracket
    G01186231Courtesy of MAZDA MOTORS CORP.
  4. Disconnect the door lock control module connector.
  5. Remove the door lock control module by prying the lock section of the upper part with a flathead screwdriver.
  6. Install in the reverse order of removal.
