Crossmember Component Removal Note

  1. Support the crossmember using a jack and remove the bolts and nuts.

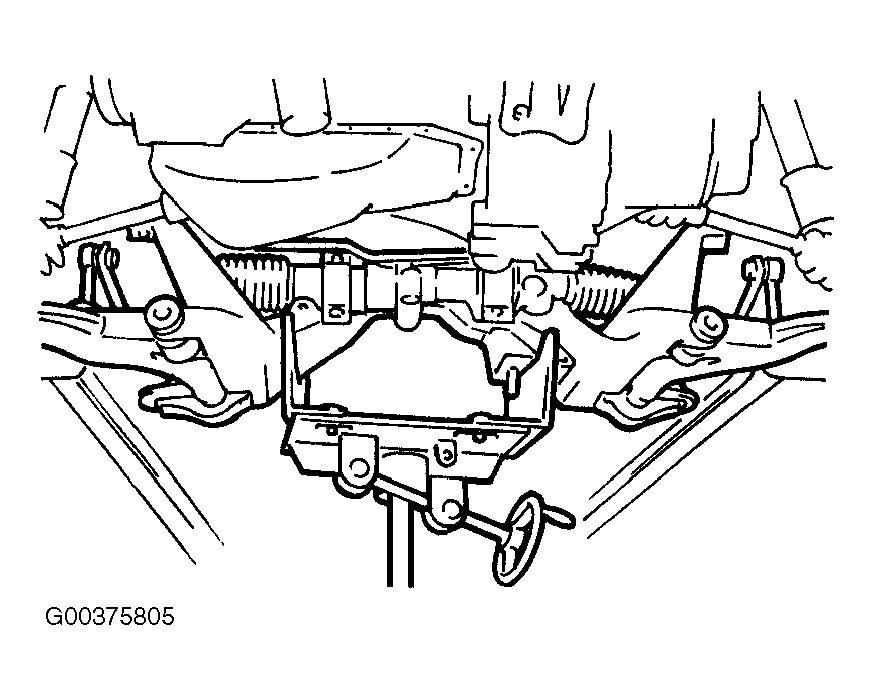

    Fig 1: Removing Steering Gear & Crossmember Component
    G00375805Courtesy of MAZDA MOTORS CORP.
  2. Remove the crossmember component.
