Rear Door Glass And Guide Removal/Installation

Open the rear door glass completely.
Disconnect the negative battery cable.
Remove the rear door trim. See REAR DOOR TRIM REMOVAL/INSTALLATION .
Remove the inner handle.
Remove in the order indicated in the illustrations.

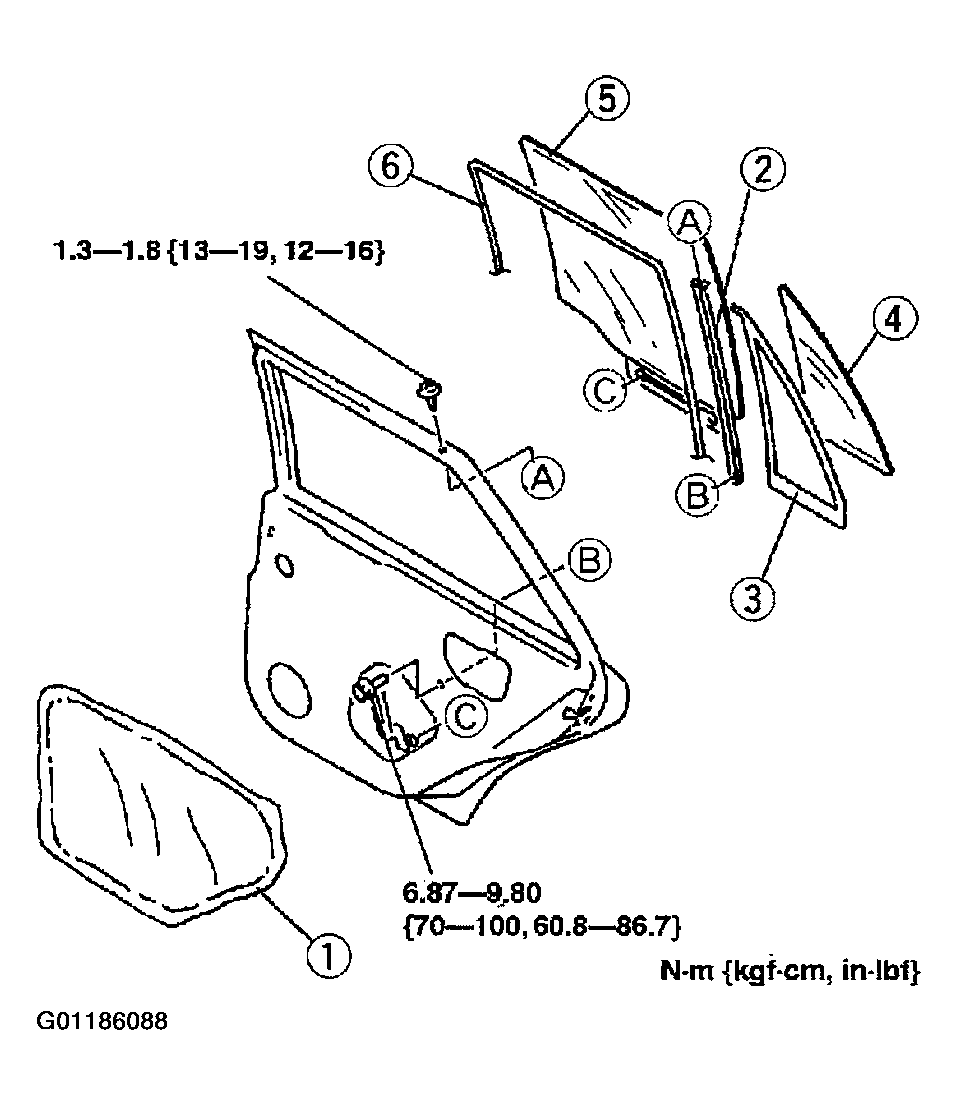

Fig 1: Removing/Installing Rear Door Glass & Guide (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

Fig 2: Removing/Installing Rear Door Glass & Guide (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
