Liftgate Trim Removal/Installation

  1. Disengage clips A and pins B using a fastener remover, then remove the liftgate trim.

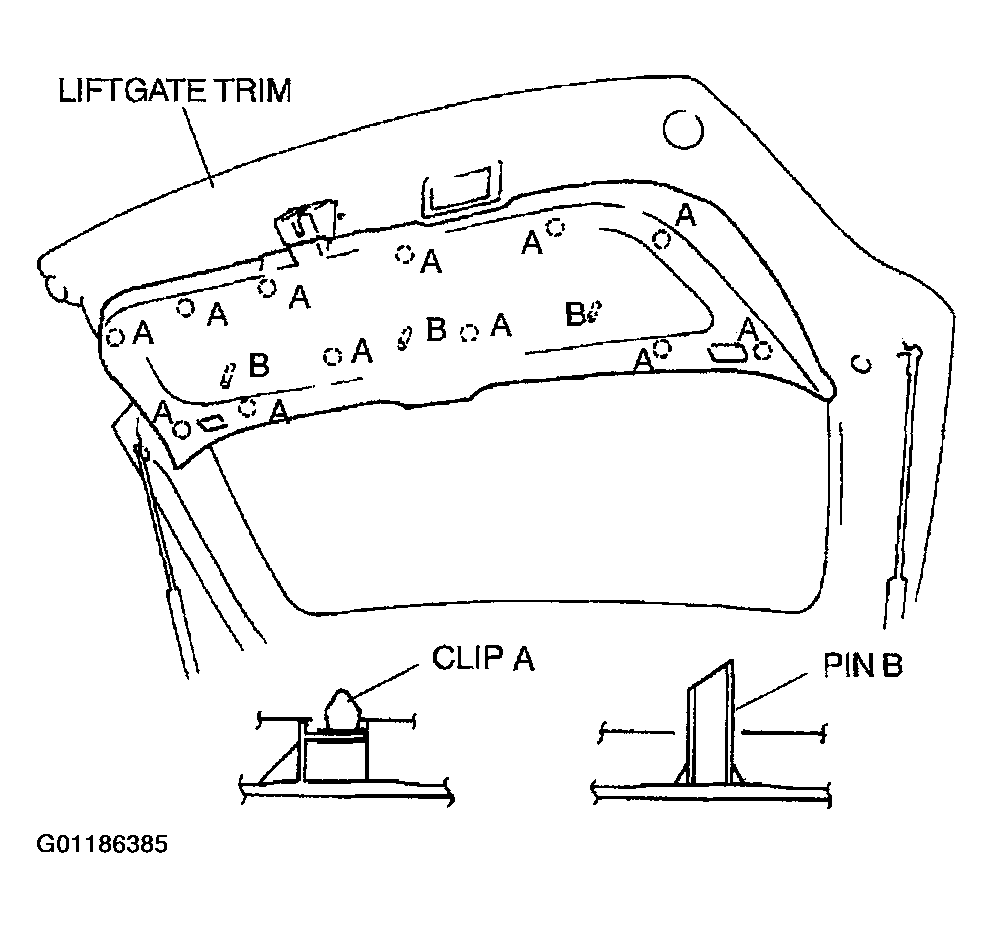

    Fig 1: Removing/Installing Liftgate Trim
    G01186385Courtesy of MAZDA MOTORS CORP.
  2. Install in the reverse order of removal.
