Main Bearing Cap Bolt Inspection

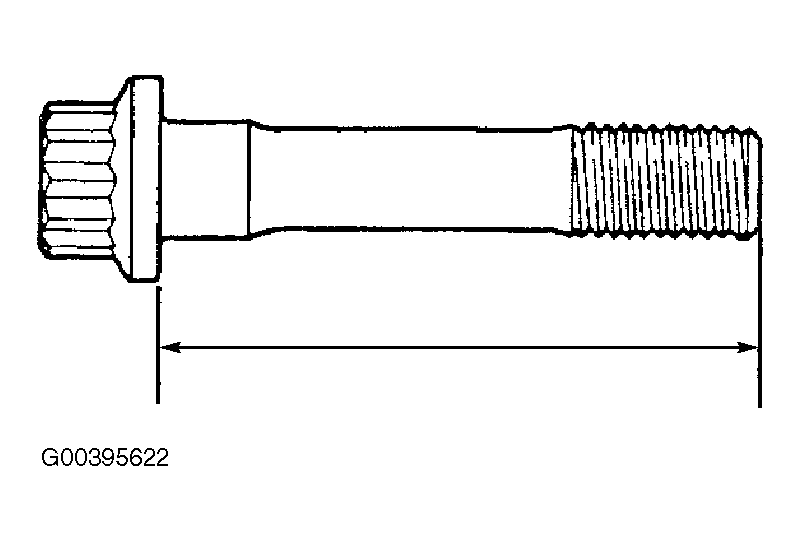

- Measure the length of each main bearing cap bolt. See Figure. Replace as necessary.
Standard Length
67.7-68.3 mm {2.666-2.688 in}
Maximum Length
69.0 mm {2.717 in}
Standard Length
67.7-68.3 mm {2.666-2.688 in}
Maximum Length
69.0 mm {2.717 in}
